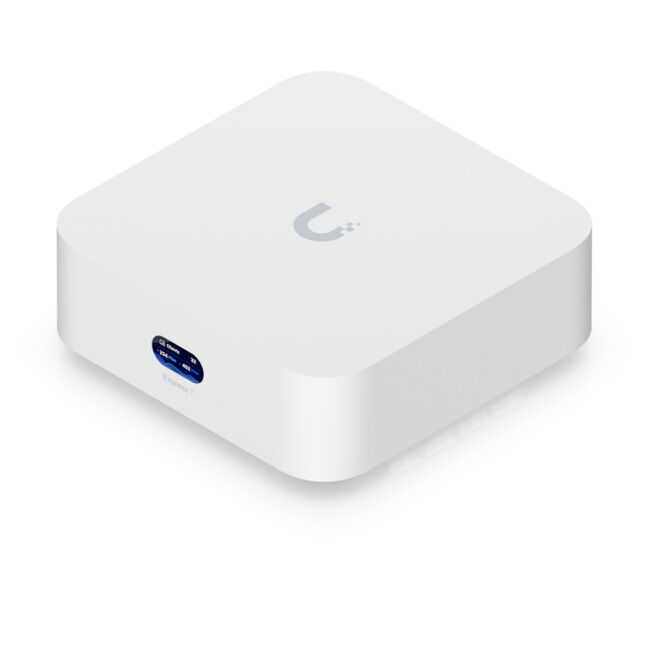

UNIFI CLOUD GATEWAY WIFI7 ACCESS POINT

Ubiquiti UniFi Express 7, Mesh-scalable, Super-compact 10G Cloud Gateway, Integrated WiFi 7 With 6 GHz support, 140 m² Coverage

Features:

Integrated 6-stream WiFi 7 with 6 GHz support
Optionally adopted as wired or meshed Layer 2 UniFi AP to extend coverage
140 m² (1,500 ft²) coverage
Manages 30+ UniFi devices and 300+ clients

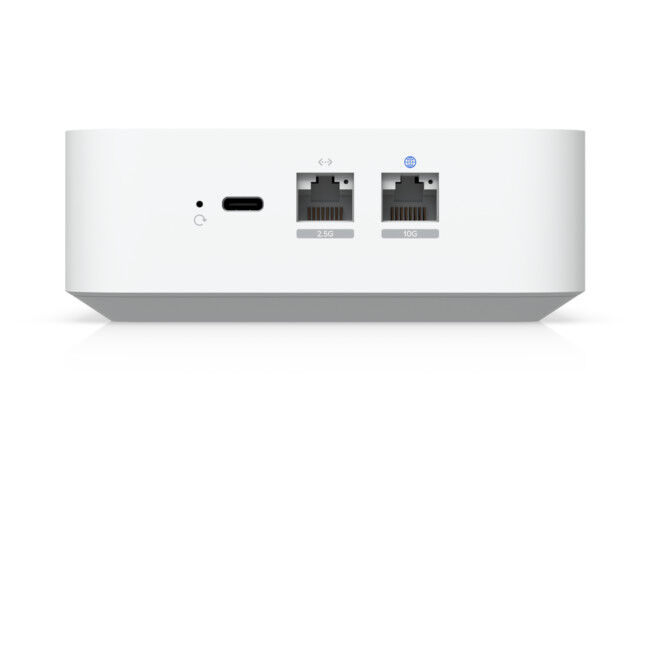

(1) 10 GbE RJ45 WAN port
(1) 2.5 GbE RJ45 LAN port to extend network

Specification

Overview
Dimensions	117 x 117 x 42.5 mm (4.61 x 4.61 x 1.67'')
UniFi Application Suite
Network	?
Managed UniFi Devices	30
Simultaneous Users Connected	300
Default WAN Ports	(1) 10 GbE RJ45
LAN Ports	(1) 2.5 GbE RJ45
IDS/IPS Throughput	2.3 Gbps
Form Factor	Compact desktop
Coverage Area	160 m² (1,750 ft²)
Security
Stateful Firewall	?
Application-Aware Layer 7 Firewall	?
DPI & Traffic Identification	?
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)	?
Content Filtering	?
Intrusion Prevention (IPS/IDS)	?
Ad Blocking	?
IDS/IPS Signatures	20,000+ with CyberSecure
VLAN/Subnet-based Traffic Segmentation	?
VPN & SD-WAN
License-Free SD-WAN	?
Site-to-Site VPN
Site Magic	?
IPsec	?
OpenVPN	?
VPN Server
Identity Endpoint One-Click VPN	?
Teleport Zero-Configuration VPN	?
WireGuard
OpenVPN	?
L2TP	?
Networking
Dynamic Routing
OSPF	?
Advanced QoS	?
Multicast DNS (mDNS)	?
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)	?
Integrated RADIUS Server	?
RADIUS over TLS (RadSec)	?
Additional Internet Failover with UniFi LTE Backup	?
Internet Quality and Outage Reporting	?
Policy-based WAN and VPN Routing	?
Customizable DHCP Server	?
IPv6 ISP Support	?
IGMP Proxy	?
Integrated WiFi
WiFi Standard	802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
Throughput
6 GHz	5.7 Gbps
5 GHz	4.3 Gbps
2.4 GHz	688 Mbps
MIMO
6 GHz	2 x 2 (DL/UL MU-MIMO)
5 GHz	2 x 2 (DL/UL MU-MIMO)
2.4 GHz	2 x 2 (DL/UL MU-MIMO)
Antenna Gain
6 GHz	6 dBi
5 GHz	7 dBi
2.4 GHz	4 dBi
Wireless Security	WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
Max. BSSIDs	4 per Radio (Gateway Mode)
	4 per Radio (AP Mode)
Supported Data Rates
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b	1, 2, 5.5, 11 Mbps
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n	6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5)	6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6/6E)	7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11be (WiFi 7)	7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
Hardware
Max. Power Consumption	22W
Power Method	USB type C (5V DC/5A)
Power Supply	USB type C (5V DC/5A) (Adapter included)
Max. TX Power
6 GHz	24 dBm
5 GHz	26 dBm
2.4 GHz	23 dBm
Supported Voltage Range	100-240V AC
Processor	Quad-core ARM® Cortex®-A53 at 1.5 GHz
System Memory	3 GB

Weight	422 g (14.9 oz)
Enclosure Material	Polycarbonate

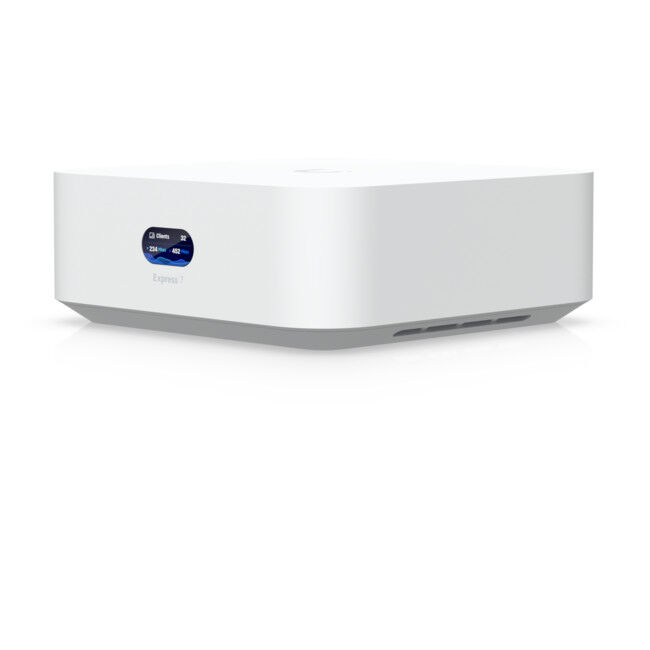

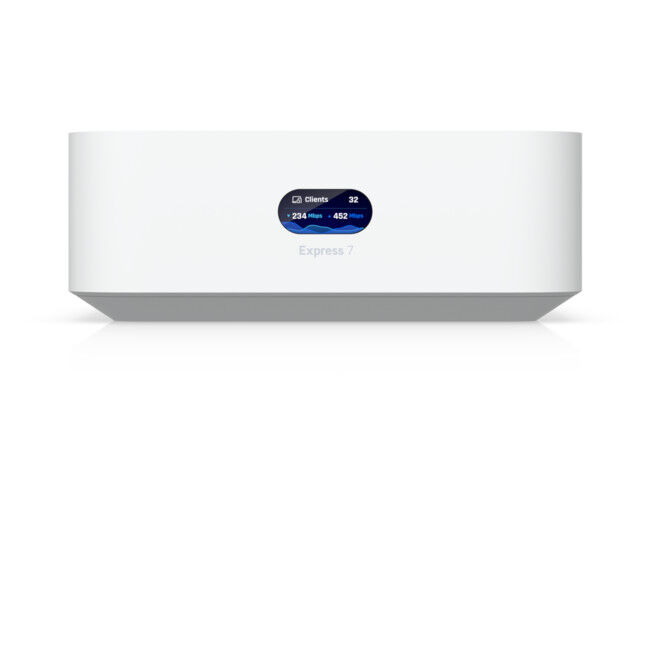

LCM Display	0.96" status display
Management	Ethernet Bluetooth
LEDs
Ethernet	?
ESD/EMP Protection	Air: ± 8kV, contact: ± 4kV
Ambient Operating Temperature	-10 to 40° C (14 to 104° F)
Ambient Operating Humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC
Button	(1) Factory-reset
Software
VLAN	802.1Q
Guest Traffic Isolation	?
Application Requirements
UniFi Network	Version 9.0.108 and later
