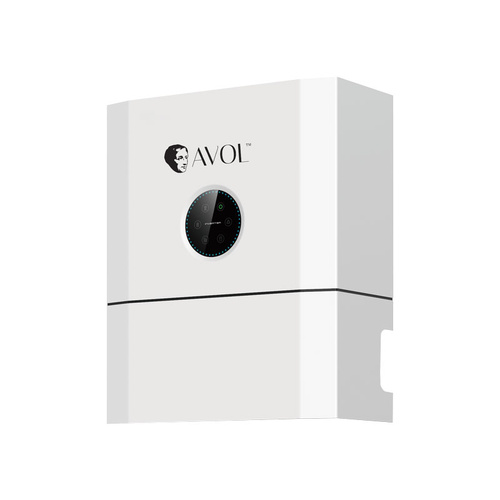

The Genius Series: Single Phase 5kW Hybrid Inverter offers flexibility and simplicity in solar-powered systems and battery storage installations. The hybrid inverter sends DC electricity generated by solar system directly back to the battery, without additional power conversion or equipment, and has a range of features enable full control over energy management.

Features:

• Built-in customised energy management modes (on-grid / off-grid)
• Connects solar energy to household & feeds back into grid
• Power output: 5000W
• High maximum efficiency: 97.6%
• Dual MPPT’s for higher energy harvest
• Remote access - mobile app available

Specifications

DC Input

• Maximum DC Voltage - 580V
• Nominal Voltage - 400V
• MPPT Voltage Range - 80V - 560V
• Number of MPP Tracker - 2
• Maximum Input Current Per MPPT - 15A

AC Output (Grid)

• Nominal AC Output Power - 5000W
• Maximum AC Apparent Power - 360VA (from grid)
• Maximum AC Output Power - 4999W (Australia)
• Nominal AC Voltage - 230VAC
• Max. Output Current - 20A
• Max. Input Current - 32A
• THD - <3% at rated power

Battery Input

• Battery Type - LFP (LiFePO4)
• Nominal Battery Voltage Charging Voltage - 48V
• Range - 40-60V
• Maximum Charge / Discharge Current - 100A
• Battery Capacity - 100-400Ah
• Charging Strategy for Li-ion Battery - Dependant on the BMS

AC Output (Backup)

• Max. Output Apparent Power - 5000VA
• Max. Output Current (Backup) - 20A
• Nominal Output Voltage - 230V
• Nominal Output Frequency - 50/60Hz
• Output THD - <3% (Linear Load)

Efficiency

• Max. PV Efficiency - 97.6%
• Euro. PV Efficiency - 97.0%

Protection

• DC Switch - Bipolar DC Switch (125A/Pole)
• Anti-islanding Protection - Yes
• Output Over Current - Yes
• DC Reverse Polarity Protection - Yes
• String Fault Detection - Yes
• AC/DC Surge Protection - DC Type ll; AC Type Ill
• Insulation Detection - Yes
• AC Short Circuit Protection - Yes

General

• Dimensions - 540 x 590 x 240mm
• Weight - 32kg
• Operating Environment - -25° C~ +60° C
• Noise (dB) - <25
• Cooling Type - Natural Convection
• Max. Operation Altitude - 2000m
• Operation Humidity - 0~95% (No Condensation)
• IP Class - IP65
• Topology - Battery Isolation
• Communication - RS485/CAN2.0/WIFl/4G
• Display - LCD/APP
• Country of Manufacturer - China
