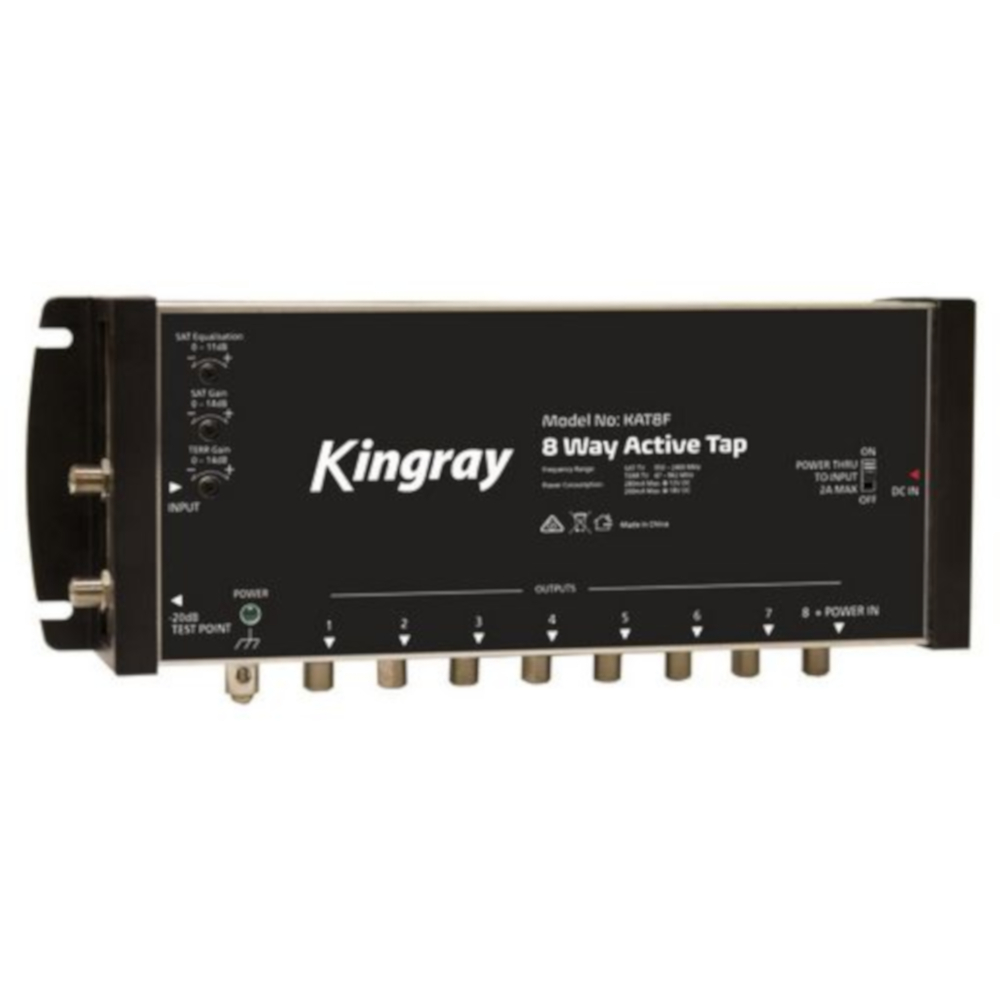

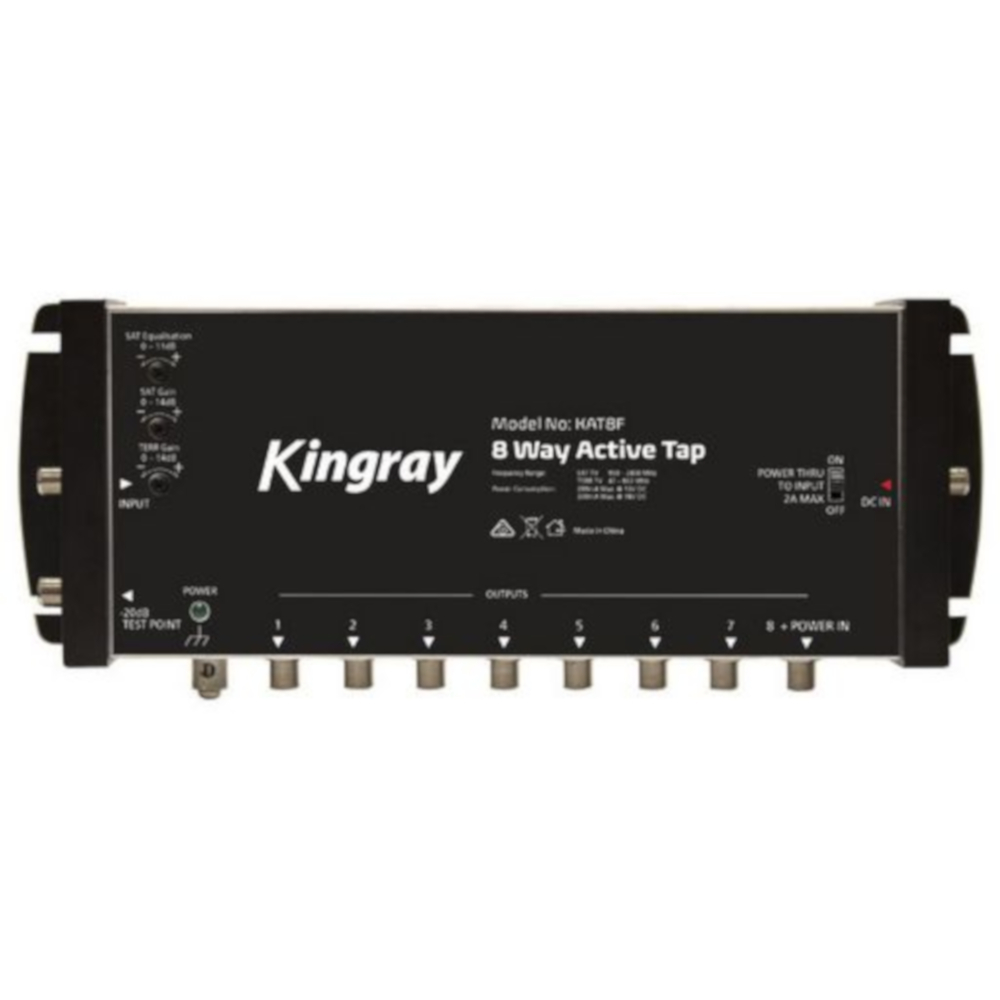

8 Way Active Tap designed for the distribution of terrestrial and satellite signals, 47-862 MHz & 950-2400 MHz Frequency Range & can be either locally or remotely powered.

• The Kingray KAT8F Active Tap is specifically designed for the distribution of terrestrial and satellite signals in a Multistacker installation.
• It features high output with adjustable gain and equalisation control.

Features

• Frequency Range of 47-862 MHz & 950-2400 MHz
• 1 Input, 8 Outputs
• 10-14dB Maximum Gain @ 47-862 MHz
• 14dB Maximum Gain @ 950-2400 MHz
• 14dB Gain Control for both FTA & Satellite
• Fixed 4dB Equalisation for FTA
• 11dB Equalisation Control for Satellite
• 20dB Test Point
• Maximum Output Level of 96dB for FTA (60dBuV IMA3 @ EN60728-5)
• Maximum Output Level of 97dB for Satellite (35dBuV IMA3 @ EN60728-3)
• Return Loss >12dB
• Connectors: F-Type
• Power Consumption: 170mA Max. @ 12V DC
• Power Consumption: 120mA Max. @ 18V DC
• Operating Voltage: 12V DC 2A
• Maximum of 2A power can be sent to the RF input via the power through switch
• Can be remotely powered with the use of a power injector (PIK2400) & suitable power supply
• Suitable Power Supply: PSK18M, PSK124F or PSK183F
