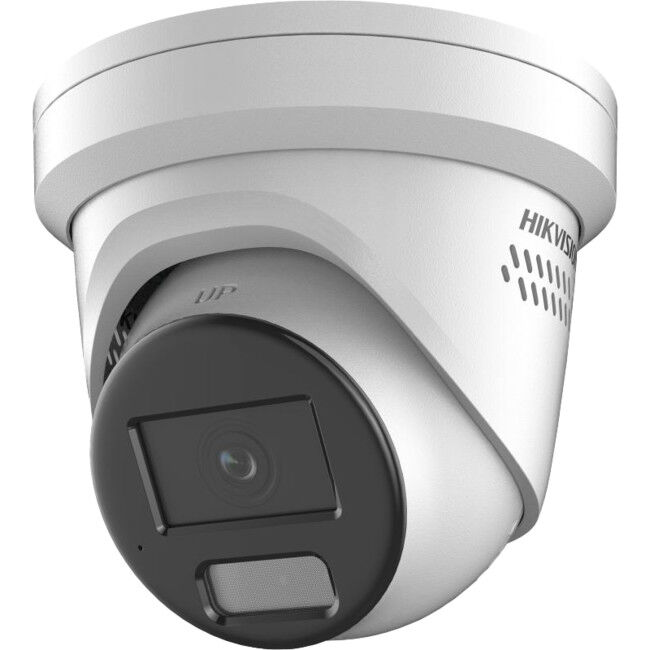

114-373-H2 8MP 2.8MM COLORVU HYBRID TURRET - HIKVISION

8MP Smart Hybrid Light with ColorVu Fixed Turret Network Liveguard Camera

Features:

• High quality imaging with 8MP resolution

• Smart Hybrid Light: advanced technology with long range

• Clear imaging against strong back light due to 130 dB WDR technology

• Efficient H.265+ compression technology

• Focus on human and vehicle classification based on deep learning

• Provide real-time security via built-in two-way audio

• Active strobe light and audio alarm to warn intruders off

• Support on-board storage up to 512 GB (SD card slot)

• Water and dust resistant (IP67)

• Audio and alarm interface available

Specs

• Image Sensor1/1.8" Progressive Scan CMOS
• Max. Resolution3840 × 2160
• Min. IlluminationColor: 0.0008 Lux @ (F1.0, AGC ON),0 Lux with light
• Shutter Time1/3 s to 1/100,000 s
• Day & NightIR cut filter
• Angle AdjustmentPan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

• Lens TypeFixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV
  • 2.8 mm, horizontal FOV 108.8°, vertical FOV 56.4°, diagonal FOV 134.3°
  • 4 mm, horizontal FOV 93.3°, vertical FOV 47.2°, diagonal FOV 114.2°
• Lens Mount M16
• Iris Type Fixed
• Aperture F1.0
• Depth Of Field
  • 2.8 mm: 3.3 m to 8
  • 4 mm: 3.8 m to 8

• DORI
  • 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m
  • 4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m

• Supplement Light TypeIR,White Light
• Supplement Light RangeUp to 30 m
• Smart Supplement LightYes
• IR Wavelength850 nm

• Main Stream
  • 50 Hz:
  • 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz:
  • 24 fps (3840 × 2160)
  • 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream
  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream
  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

*Third stream is supported under certain settings.

• Video Compression
  • Main stream: H.265/H.264/H.264+/H.265+,
  • Sub-stream: H.265/H.264/MJPEG,
  • Third stream: H.265/H.264,

*Third stream is supported under certain settings.

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline Profile,Main Profile,High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR,VBR
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region Of Interest (ROI)1 fixed region for main stream and sub-stream

• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio TypeMono sound
• Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise FilteringYes

• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
• User/Host
  • Up to 32 users
  • 3 user levels: administrator, operator, and user
• SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
• Network StorageNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
• ClientiVMS-4200,Hik-Connect
• Web Browser
  • Plug-in required live view: IE 10, IE 11,
  • Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
  • Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

• Power
  • 12 VDC ± 25%, 0.75 A, max. 9 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
  • PoE: IEEE 802.3af, Class 3, max. 10.5 W
• Material
  • Cover: metal, main body: metal
• DimensionØ138.3 mm × 115.4 mm (Ø5.4" × 4.5")
• Package Dimension170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3")
• WeightApprox. 820 g (1.8 lb.)
• With Package WeightApprox. 1316 g (2.9 lb.)
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• General FunctionHeartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
• Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• EMC
  • CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
  • RCM: AS/NZS CISPR 32: 2015,
  • IC: ICES-003: Issue 7,
  • KC: KN32: 2015, KN35: 2015
• Safety
  • UL: UL 62368-1,
  • CB: IEC 62368-1: 2014+A11,
  • CE-LVD: EN 62368-1: 2014/A11: 2017
• EnvironmentCE-RoHS: 2011/65/EU
• ProtectionIP67: IEC 60529-2013
