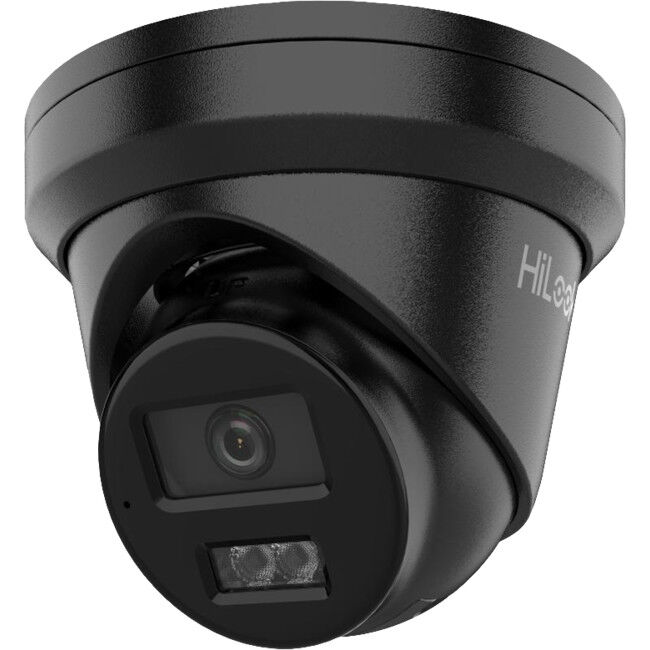

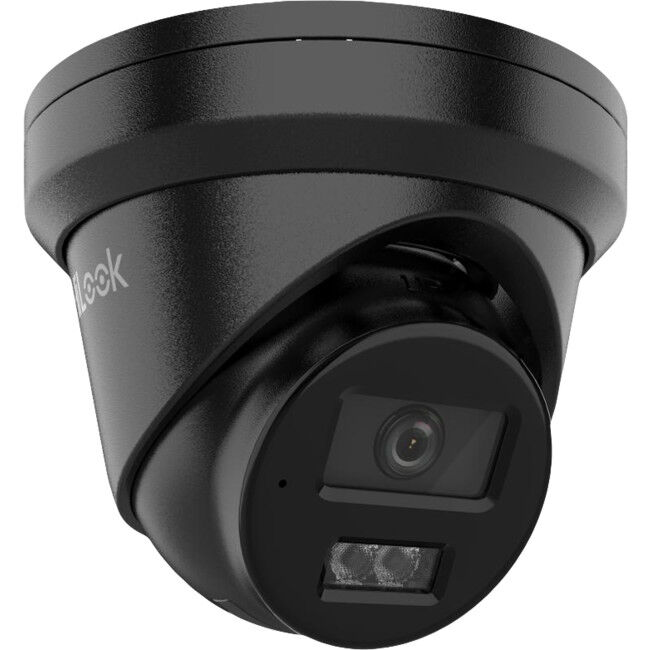

2.8MM 6MP TURRET CAMERA BLACK

HILOOK Black 6MP AI Fixed Turret Network Camera

High quality imaging with 6MP resolution
Support Human and Vehicle Intelligent Detection
Dual IR lights to enhance night vision
Built-in microphone for real-time audio security
Water and dust resistant (IP67)
Efficient H.265+ compression technology

Specifications

Camera	Image Sensor	1/2.4″ Progressive Scan CMOS
	Max. Resolution	3200 × 1800
	Min. Illumination	Colour: 0.005 Lux @ (F1.6, AGC ON) B/W: 0 Lux with IR
	Shutter Time	1/3s to 1/100,000s
	Day & Night	IR cut filter
	Angle Adjustment	Pan: 0° to 360° Tilt: 0° to 75° Rotate: 0° to 360°
Lens	Lens Type	Fixed focal lens, 2.8mm and 4mm optional
	Focal Length & FOV	2.8 mm: Horizontal FOV 105°, Vertical FOV 55°, Diagonal FOV 127° 4mm: Horizontal FOV 78°, Vertical FOV 38°, Diagonal FOV 96°
	Lens Mount	M12
	Iris Type	Fixed
	Aperture	F/1.6
	DORI	2.8mm: D: 76m O: 30m R: 15m I: 7m 4mm: D: 115m O: 45m R: 23m I: 11m
	Illuminator	Supplement Light
	Type	IR
	Supplement Light Range	Up to 30m
	Smart Supplement Light	Yes
	IR Wavelength	850nm
Video	Main Stream	50Hz: 20 fps (3200 × 1800 / 2688 × 1520 / 1920 × 1080 / 1280 × 720) 60Hz: 20 fps (3200 × 1800 / 2688 × 1520 / 1920 × 1080 / 1280 × 720)
	Sub-Stream	50Hz: 20fps (1280 × 720 / 640 × 480 / 640 × 360) 60Hz: 20fps (1280 × 720 / 640 × 480 / 640 × 360)
	Video Compression	Main Stream: H.265+ / H.265 / H.264+ / H.264 Sub-Stream: H.265 / H.264 / MJPEG
	Video Bit Rate	32Kbps to 16Mbps
	H.264 Type	Baseline Profile, Main Profile, High Profile
	H.265 Type	Main Profile
	Bit Rate Control	CBR, VBR
	Region of Interest (ROI)	1 × fixed region for main stream
	Audio Type	Mono sound
Audio	Environment Noise Filtering	Yes
	Audio Sampling Rate	8 kHz/16 kHz
	Audio Compression	G.711 G.722.1 G.726 MP2L2 PCM AAC-LC
	Audio Bit Rate	64 Kbps (G.711ulaw) 64 Kbps (G.711alaw) 16 Kbps (G.722.1) 16 Kbps (G.726) 32 to 160 Kbps (MP2L2) 16 to 64 Kbps (AAC-LC)
Network	Security	Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
	Simultaneous Live View	Up to 6 channels
	API	Open Network Video Interface (Profile S, Profile T, Profile G (only −F model supports)), ISAPI,SDK
	Protocols	TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
	User/Host	Up to 32 users 3 user levels: Administrator, Operator, and User
	Client	iVMS-4200 Hik-Connect Web Browser
	Plug-in Required Live View	IE 10, IE 11
	Local Service	Chrome 57.0+, Firefox 52.0+
Image	Wide Dynamic Range (WDR)	120dB
	SNR	≥52dB
	Day/Night Switch	Day, Night, Auto, Schedule
	Image Enhancement	BLC, HLC, 3D DNR
	Image Settings	Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
	Privacy Mask	4 programmable polygon privacy masks
Interface	Ethernet Interface	1 × RJ45 10 M/100 M self-adaptive Ethernet port
	Built-in Microphone	Yes
	Reset Key	Yes
Events	Basic Event	Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
	Smart Event	Line crossing detection and intrusion detection (support alarm triggering by specified target types (human and vehicle)
	Linkage	Upload to FTP/memory card (−F), send email, notify surveillance center, trigger recording (−F), trigger capture
General	Power	12V DC ± 25%, 0.41 A, max. 5W Ø5.5mm coaxial power plug, reverse polarity protection PoE: IEEE 802.3af, Class 3, max. 6.5W
	Material	Metal
	Language	English, Ukrainian
	General Function	Heartbeat, anti-banding, mirror, password protection, password reset via email
	Approval	EMC CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7
	Safety	UL: UL 62368-1 CB: IEC 62368-1: 2014+A11 CE-LVD: EN 62368-1: 2014/A11: 2017 BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
	Reach	Regulation (EC) No 1907/2006
	Protection	IP67: IEC 60529-2013
Environment	Storage Temperature	−30°C to 60°C (−22°F to 140°F)
	Storage Humidity	Humidity 95% or less (non-condensing)
	Startup and Operating Temperature	−30°C to 60°C (−22°F to 140°F)
	Startup and Operating Humidity	Humidity 95% or less (non-condensing)
	Environment	CE-RoHS: 2011/65/EU WEEE: 2012/19/EU
Packaging	Dimensions	Ø127.3mm × 95.9mm (Ø5.0″ × 3.8″)
	Package Dimensions	150mm × 150mm × 141mm (5.9″ × 5.9″ × 5.6″)
	Weight	Approx. 600g (1.3lb.)
	With Package Weight	Approx. 909g (2.0lb.)
