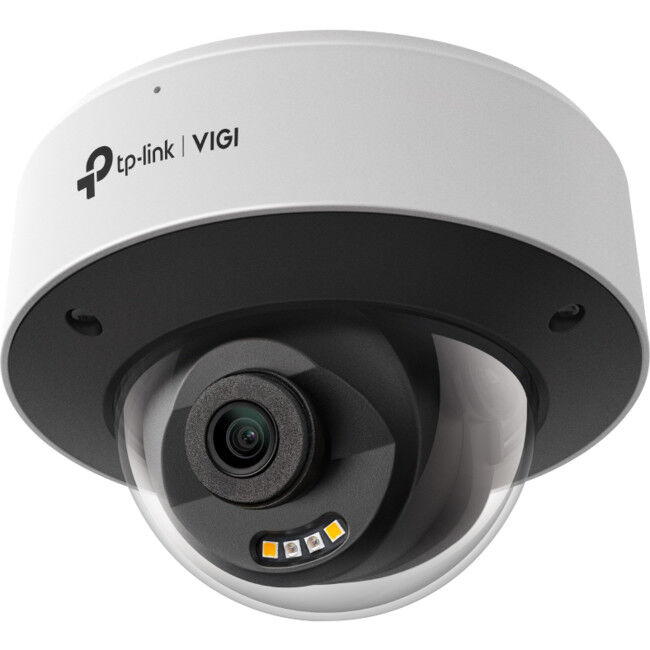

8MP DOME NETWORK CAMERA

Overview

1: This function must be used with VIGI specified software.

Specifications

NETWORK

CAMERA	Image Sensor	1/2.7″ Progressive Scan CMOS
	Shutter Speed	1/3 to 1/10000s
	Slow Shutter	Yes
	Minimum Illumination	0.005 Lux; 0 Lux with IR/White light
	Day/Night Mechanism	IR Cut Filter
	Day/Night Switch	Unified / Scheduled / Auto
LENS	Type	Fixed Focal Lens
	Focal Length	2.8mm / 4mm
	Aperture	F1.6
	FOV	2.8mm: Horizontal FOV: 110° Vertical FOV: 58.1° Diagonal FOV: 133.5° 4mm: Horizontal FOV: 88° Vertical FOV: 46° Diagonal FOV: 105.4°
	Lens Mount	M12*P 0.5
	DORI Distance	2.8 mm Detect: 85m (278ft) Observe: 35m (116ft) Recognise: 17m (56ft) Identify: 8m (28ft) 4 mm Detect: 107m (350ft) Observe: 44m (146ft) Recognise: 21m (70ft) Identify: 11m (35ft)
	Angle Adjustment (Manual)	Pan: 0° to 346° Tilt: 0° to 75° Rotation: 0° to 355°
ILLUMINATOR	IR LED	Quantity: 2 Range: 30m Wavelength: 850nm
	White LED	Quantity: 2 Range: 30m
	Illuminator On/Off Control	Auto/Scheduled/Always On/Always Off
VIDEO	Max. Resolution	3840 × 2160
	Main Stream	Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps Resolution: 3840×2160, 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If HDR is turned on, the frame rate can only support up to 20fps.
	Sub-Stream	Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps Resolution: 848×480, 704×576, 640×480, 640×360, 352×288, 320×240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If HDR is turned on, the frame rate can only support up to 20fps.
	Bit Rate Control	CBR, VBR
	Video Compression	Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
	H.264 Type	High Profile
	H.264+	Main Stream Supported
	H.265 Type	Main Profile
	H.265+	Main Stream Supported
	Video Bit Rate	Main Stream: 256 Kbps to 8 Mbps Sub-Stream: 64 Kbps to 512 Kbps
IMAGE	Image Settings	Mirror Brightness Contrast Saturation Sharpness Exposure WDR White Balance Prevent Overexposure to Infrared Light HLC Adjustable by Client Software
	Image Enhancement	BLC/3D DNR/HLC/Smart IR
	Wide Dynamic Range	120dB Note: When People & Vehicle Analytics is enabled, only DWDR is supported.
	SNR	≥52dB
	Image Parameters Switch	Yes
	Privacy Mask	Up to 4 Masks
	ROI	1 Region
	OSD Setting	Yes
AUDIO	Audio Communication	Two-Way Audio
	Audio Input	Yes
	Audio Output	Yes
	Audio Compression	Yes
	Audio Sampling Rate	8KHz
	Environment Noise Filtering	Yes
	Audio Bit Rate	64 Kbps (G.711 alaw)
	Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
	ONVIF	Yes
	API	Open Network Video Interface (Profile S/T/G)
	Simultaneous Live View	3 Main Streams & 3 Sub-Streams
	Client	VIGI App, Web UI, VIGI VMS, Utility
	Web Browser	Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above
	Cloud	Yes
	Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
ALARM AND EVENT MANAGEMENT	Smart Eventon Detection	Intrusion Detection Line-Crossing Detection Region Entering Detection Region Exiting Detection Object Abandoned Detection Object Removal Detection Loitering Detection People Detection Vehicle Detection Abnormal Sound Detection Scene Change Detection
	Basic Event	Motion detection(Enhanced with Human & Vehicle Classification for more accurate alerts) Camera Tampering Exception (Illegal Login)
	Alarm Linkage	Memory Card Video Recording Message Push Audible Warning White Light Flashing
	Deep Learning Function	People & Vehicle Analytics: Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier*¹.
INTERFACES	Network Interface	1 × RJ45 10/100M Self-Adaptive Ethernet Port, PoE
	Alarm	N/A
	Reset Button	Yes
	Power	DC Power Port
	On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB*⁴.
	Built-in Microphone	Yes; Records Anything Going on within a 15ft Radius of the Camera
	Built-in Speaker	Yes
	Audio	N/A
ENVIRONMENT	Operating Temperature	−30°C~60°C
	Storage Temperature	−40°C~60°C
	Operating Humidity	95% or Less (Non-Condensing)
	Storage Humidity	95% or Less (Non-Condensing)
GENERAL	Package Contents	VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories
	Material	Metal
	Net Weight	0.62 Kg
	Power Supply	12V DC ± 5%, Max. 11W, 5.5mm Coaxial Power Plug PoE: 802.3af/at, class 0, Max. 12.3W
	Protection	IP67 Waterproof, IK10 Vandal Proof
	Product Dimensions (L×W×H)	122mm × 122mm × 89mm (4.80″ × 4.80″ × 3.50″)
	Certifications	CE, NTRA, FCC, VCCI, BSMI, ONVIF, KC

1: This function must be used with VIGI specified software.2: When People & Vehicle Analytics is enabled, only DWDR is supported.3: Calculations based on laboratory testing using a 3MP VIGI camera, and an actual performance may vary according to the amount of activity recorded, resolution and other variables.4: SD card is not included in the package.

(S285-2.8MM)
