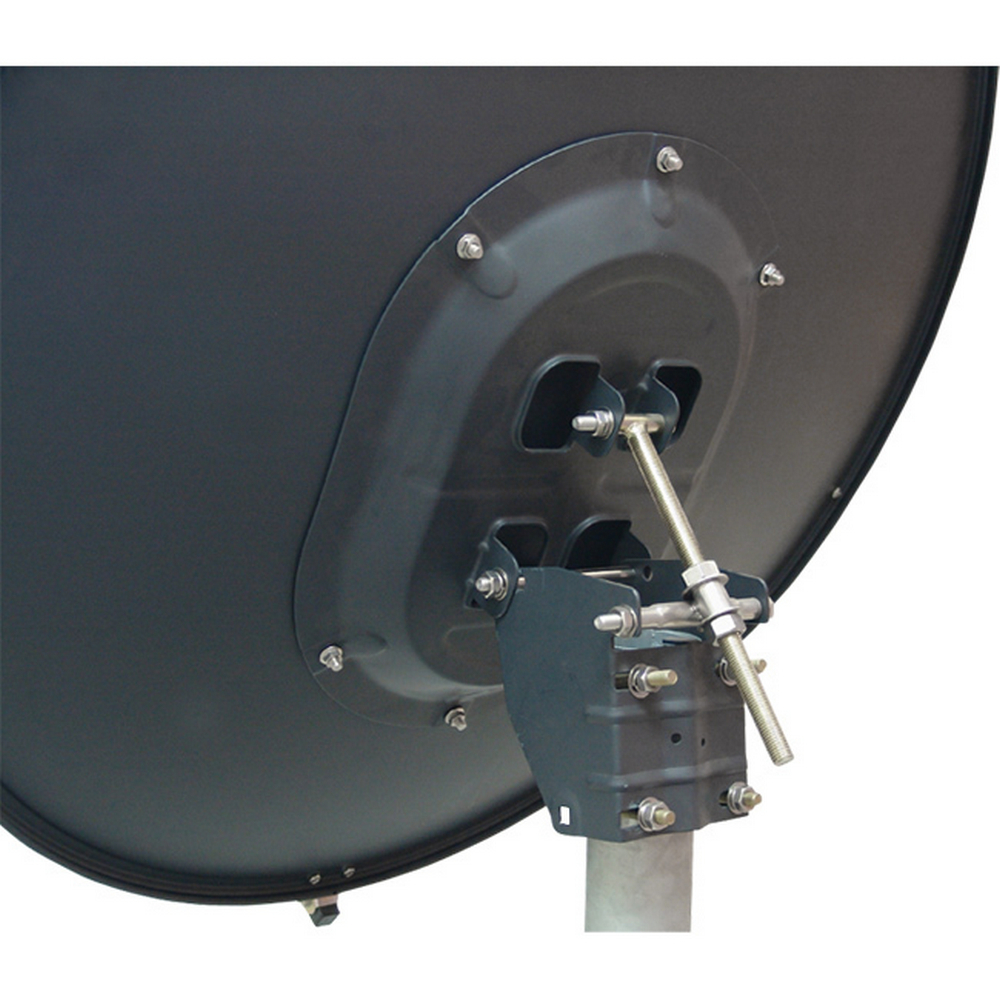

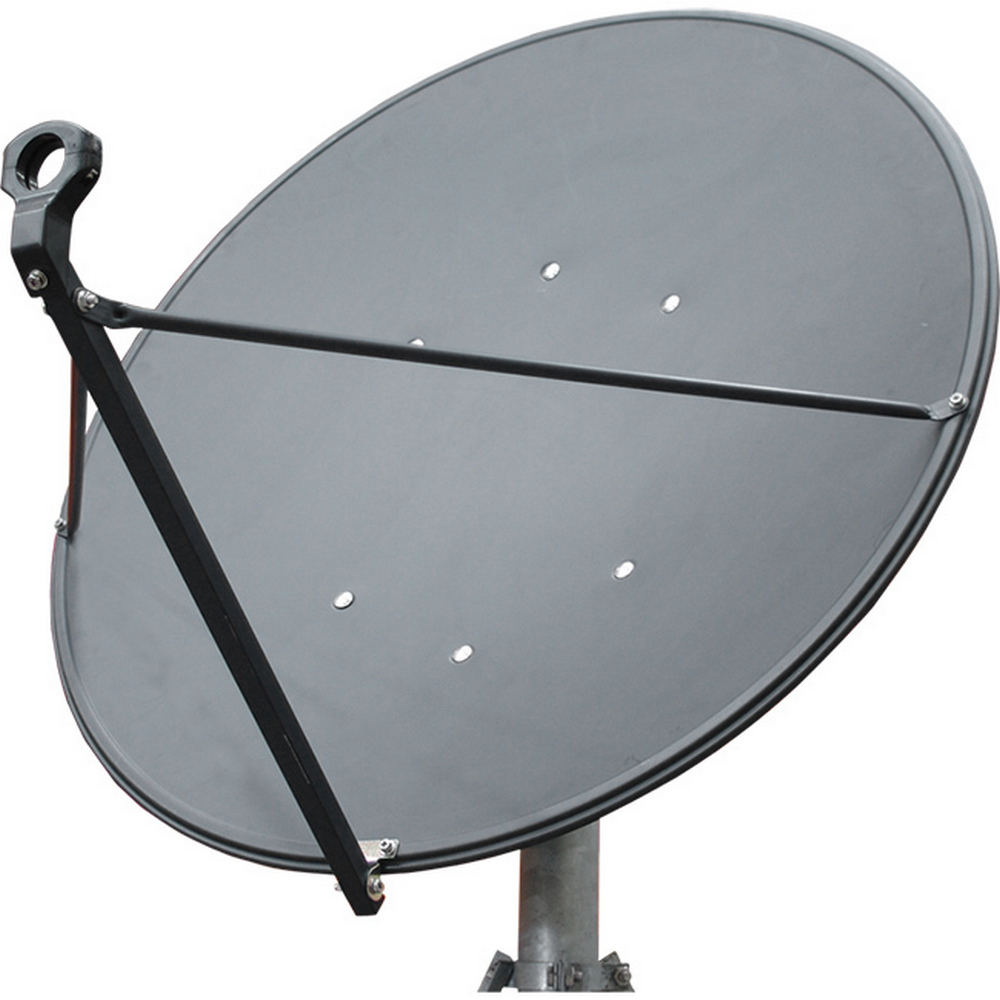

90CM OFFSET SATELLITE DISH

  • Satellite dish with tri arm design.
  • Type: Offset
  • Diameter: 90cm horizontal
  • Material: Galvanised steel with powder coat finish
  • Colour: Dark grey

Best suited for commercial installations. The polyester based powder coating is designed for the exterior environment, salt spray, light, colour retention and is alsoweather resistant.

Specifications

Specifications SDJ90C1
Reflector Type Offset
Offset Angle 24.62°
Aperture (Diameter) Horizontal Axis:90 cm Vertical Axis:99cm
Efficiency 75 % Min
Ku-Band Gain @ 12.50 GHz 39.82 dBi
F/D Ratio 0.6
Focus Length 540 mm
Material Galvanised Steel
Finish Polyester Powder Coating
Colour Grey / Cool Grey / Dark Grey
Mounting Mounting Type Pole, Wall & Ground Mount
Adjustment Type AZ/EL
Material Steel / Galvanised Steel
Finish Polyester Powder Coating
Colour Grey / Light Grey / Dark Grey
Elevation 15° … 90°
Azimuth 0° … 360°
Pole Diameter 50 … 90 mm
Environment Ambient Temperature - 40°C … + 60°C
Relative Humidity 0 … 100%

(SDJ90C1)

12 Months

SKU SDJ90C1
Model # SDJ90B
Brand JONSA
Unit Of Measure Each
Assembled Width 11.600m
