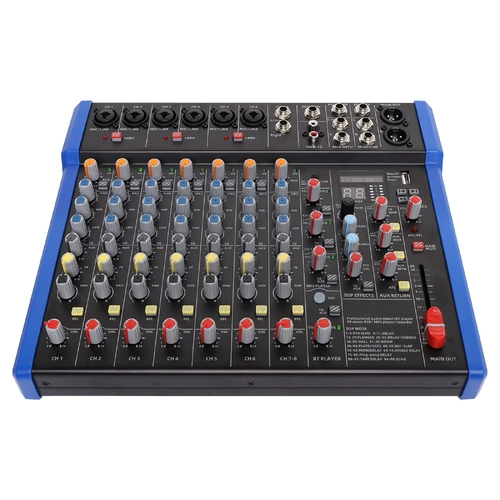

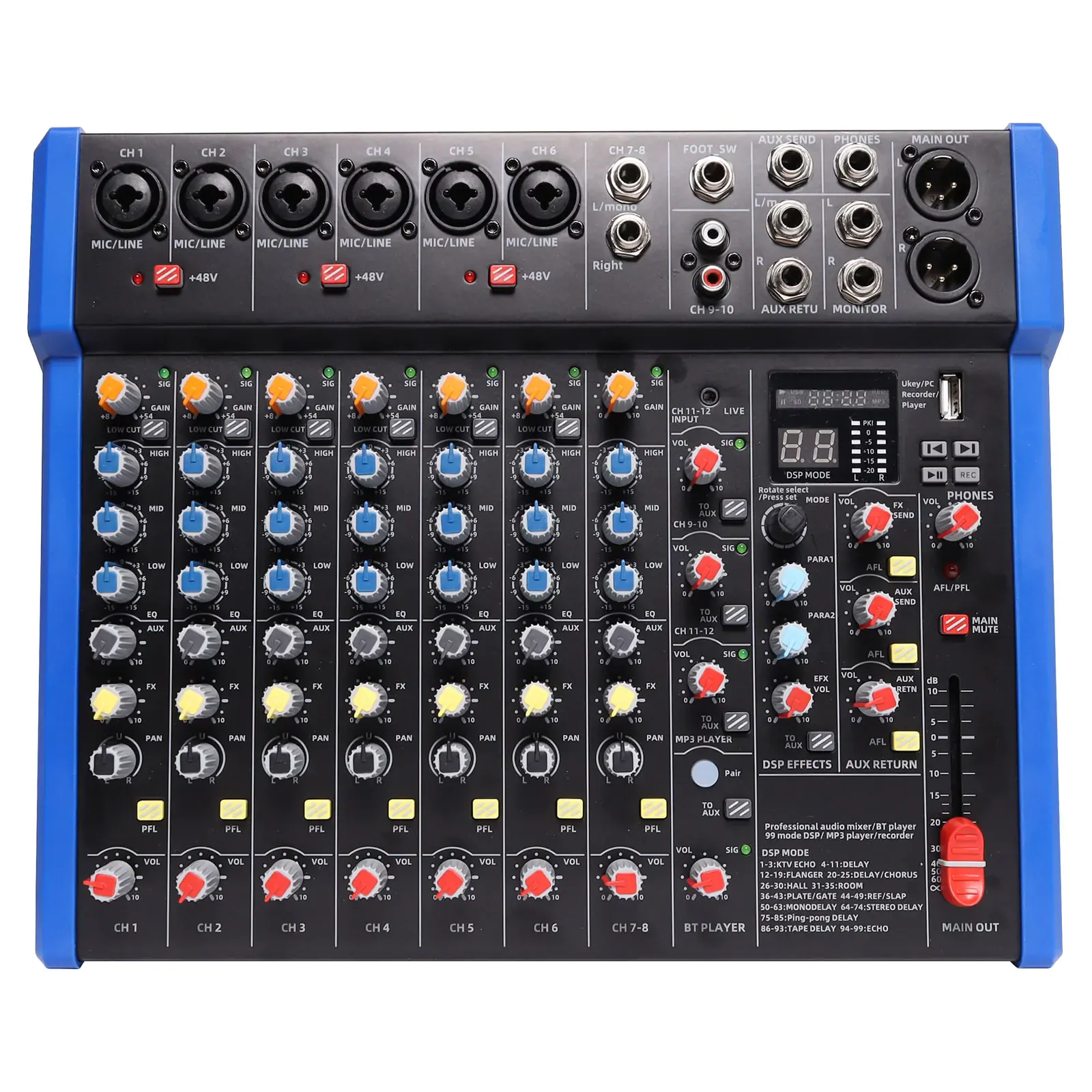

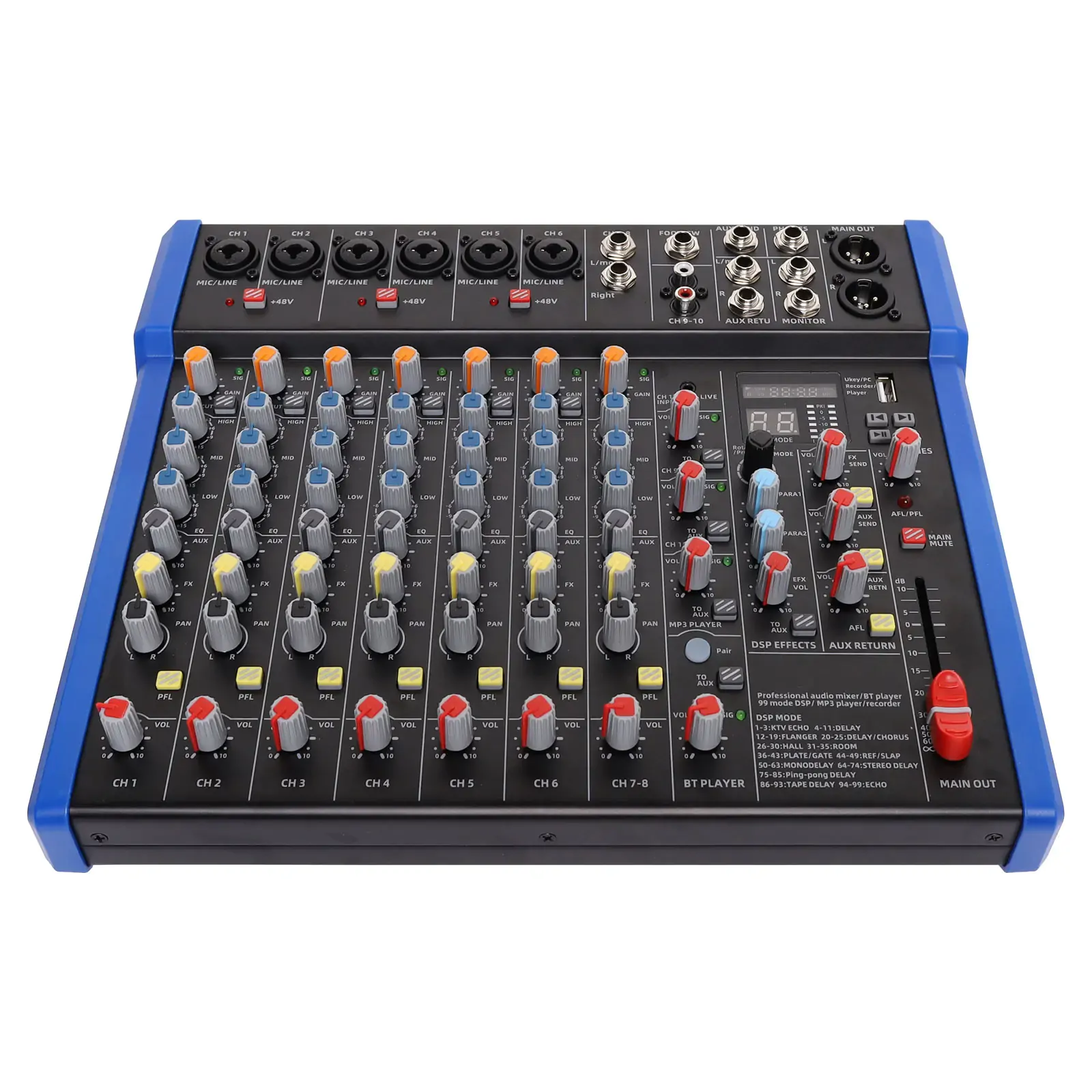

A lightweight and compact USB powered mixer featuring 14 channels. Channels 1 to 6 are XLR/6.35mm combo sockets suitable for both mic and line level signals. Channels 7 and 8 are 6.35mm L/R mono jack inputs. Channel 9 and 10 is a stereo RCA input. Channel 10 and 11 is a stereo 3.5mm jack input. Its an ideal mixing solution for small to medium venues. An additional input is provided via Bluetooth audio streaming from your device. Being USB powered it is very portable and easy to power.

Please Note: Requires a 2Amp USB supply. See M 8861B in accessories below
Channels 1-8 are identical and feature:
• Signal presence indicator
• Gain adjustment with low cut on/off
• High, mid and low adjustments
• Aux input level adjustment
• Fx level adjustment
• Pan L/R control
• PFL button
• Volume control.

Channels 9-12 each feature adjustable volume control and aux send button.
Bluetooth is also provided with volume control and aux send button.

Features

• All inputs top mounted for easy access
• Combo XLR and 6.35mm jack inputs on channels 1-6
• Bluetooth audio reciever
• 24 bit 48KHz DSP effects with preset adjustment and level
• Adjustable aux return level
• USB MP3 recording and playback
• LED VU meter
• Monitor & phones outputs
• Aux send and return
• Foot switch input
• 48V phantom power

Specifications

• Inputs
• Mic: +14dB to +60dB (120dB SNR)
• Line: -6dB to +38dB (95dB SNR)
• Stereo: -8dB to 15dB (96dB SNR)
• Equalisation
• Low: 50Hz ±15dB
• Mid: 700Hz ±15dB
• High: 10KHz ±dB
• General
• Main outputs: +28dB balanced / +22dB unbalanced
• Frequency response: 20Hz - 20KHz
• Power: USB Type C 5V 2A
• Dimensions: 270W x 235D x 68Hmm
• Weight: 2kg
