Overview

The 4 port HDMl 4K switch lets you share a display with four HDMl™-enabled A/V devices. The switch features four independent inputs that each support 4K resolution and 7.1 surround sound audio. You'll be amazed at how this video switch maintains Ultra HD picture quality. 4K is supported by the latest A/V devices imd delivers four times the resolution of 1080p. Plus, because the switch is backward compatible with high-definition 1080p, you can assure any video source will look great in your digital signage application. Also, the audio embedded in HDMI™ can be extracted via HDMI, Toslink or Coaxial and the switch can return the audios to AV receivers with audio return channel (ARC) function.
Package Contents:

• 1x Main unit

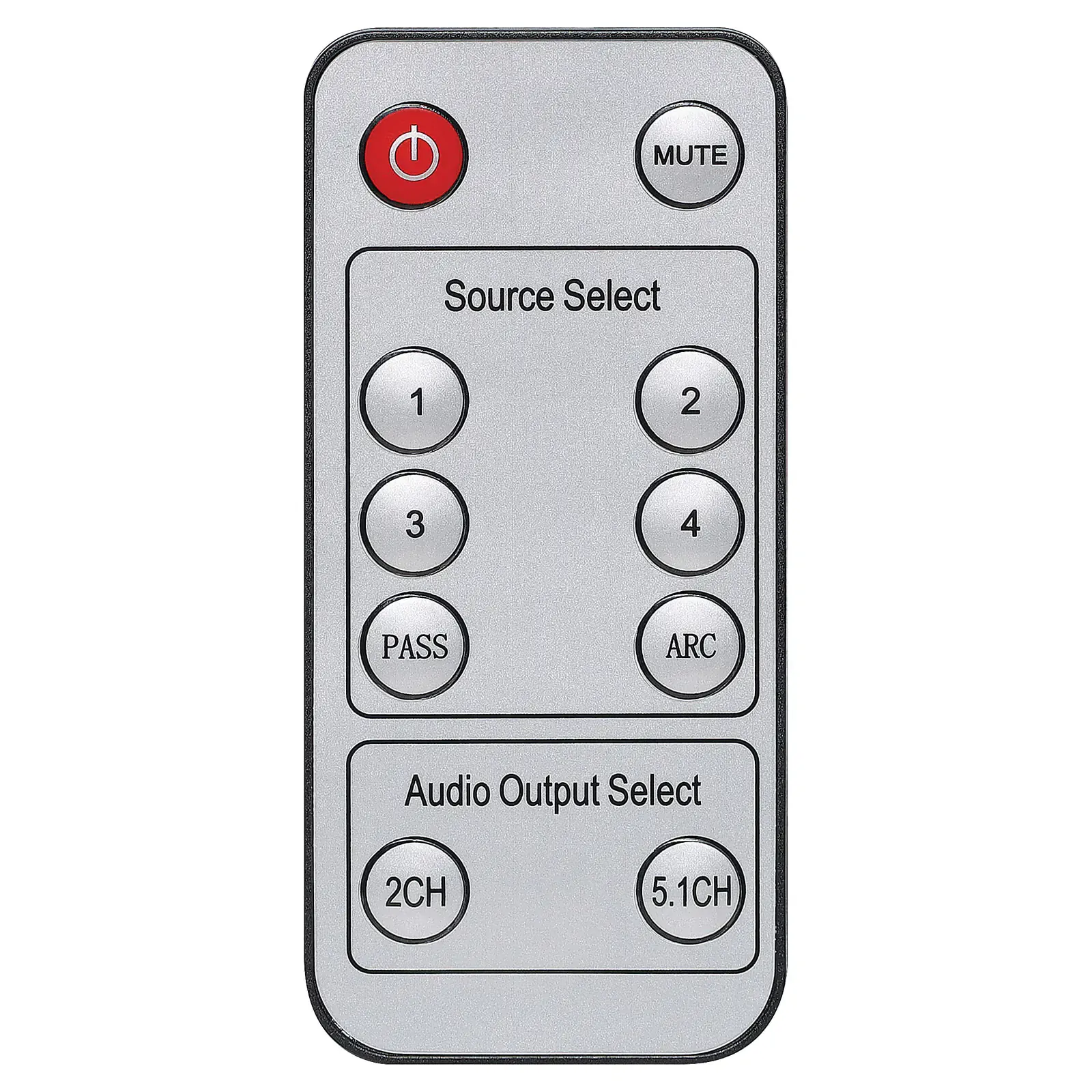

• 1x Remote control
• 1x 5V DC power adapter
• 1x User manual

Note: This product contains a CR2025 button cell battery.

Features

• Support manual control and remote control
• Enables the most recently activated video source to be displayed automatically
• Support digital audio output simultaneously: Audio-H (HDMI only for audio), Stereo, Toslink and Coaxial
• Support resolution up to 4K@60Hz 4:4:4
• Support High Dynamic Range (HDR) video
• Support 600MHz l6Gbps per channel (18Gbps all channels) bandwidth
• Support 12bit per channel (36bit all channels) deep colour
• Support HDCP2.2
• Support uncompressed audio such as LPCM 7.1
• Support compressed audio such as DTS, Dolby Digital (including DTS-HD Master Audio and Dolby TrueHD)
• Support Audio Return Channel

Specifications

• Input Ports: 4x HDMI
• Output Ports: 1x HDMI, 1x Audio-H, 1x Stereo, 1x Coaxial, 1x Toslink
• Vertical Frequency Range: 60/60Hz
• Video Amplifier Bandwidth: 6.0Gbps/600MHz per channel (18Gbps all channels)
• Interlaced (50&60Hz): 480i, 576i, 1080i
• Progressive (50&60Hz): 480p, 576p, 720p, 1080p, 4K @ 60Hz
• Limited Warranty: 1 year parts and labour
• Operating Temperature: 0°C to 70°C
• Storage Humidity: 5% to 90% RH non condensation
• Power Supply: 5V DC
• Power Consumption (Max): 5W
• Switcher Unit Cert: CE, FCC, RoHS
• Power Supply Cert: CE, FCC, RoHS
• Power Adapter Standard: US, EU, UK, AU
• Dimensions: 211L x 66W x 26H mm
• Net Weight: 356g
• Material: Metal
• IR Remote Control: CR2025 3V Lithium coin cell battery

  *Specifications are subject to change without notice.
