Overview

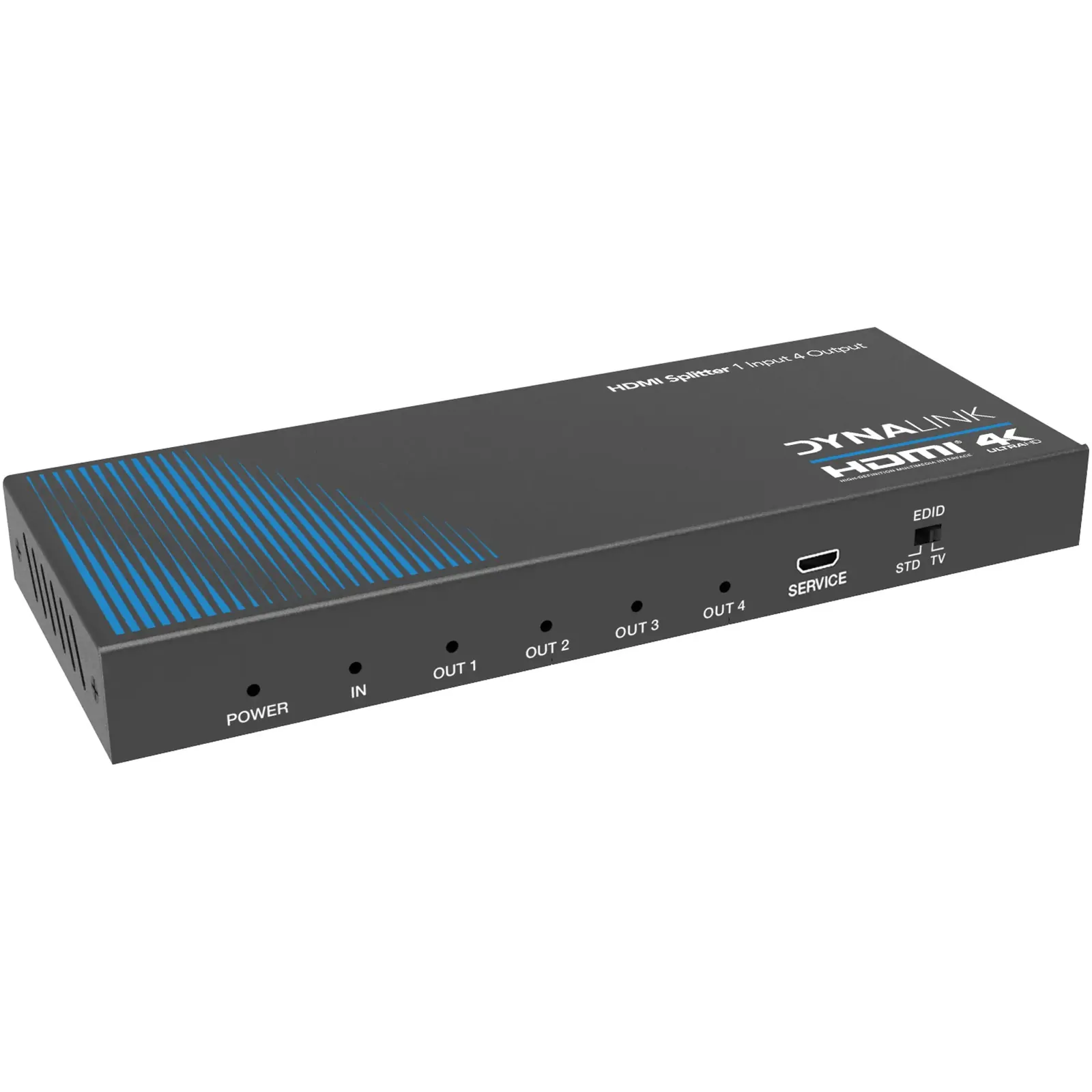

This HDMI 1x4 Splitter designed with 1x HDMI input and 4x HDMI output, can distribute 1x HD source signal to 4x display devices simultaneously and quickly. Video resolution is up to 4K2K@60Hz YCbCr 4:4:4, and digital audio format is up to LPCM 7.1CH. It supports advanced EDID management.

Each signal is designed in strict accordance with industry standards to prevent cross-talk between signals and minimize signal attenuation. This ensures the high-quality output of every HD signal after distribution, achieving perfect transmission.

The device is widely used in multimedia conference halls, television teaching, large-screen display and other applications.

Box Contents

• 1× 4K60 1x4 HDMI Splitter
• 1× 5V/1A Power Supply
• 1× User Manual

Features

• HDCP 2.3/2.2/1.4 and DVI 1.0 compliant
• Video resolution is up to 4K2K@60Hz YCbCr 4:4:4
• Audio format up to 7.1CH: LPCM, Dolby TrueHD, DTS-HD Master Audio
• Support HDR and 3D audio format
• Advanced EDID management
• Compact design for easy and flexible installation

Specifications

Technical

• HDMI Compliance: HDMI 2.0b
• HDCP Compliance: HDCP 2.3/2.2/1.4
• DVI Compliance: DVI 1.0
• Video Bandwidth: 18Gbps
• Colour Depth: 8-bit,10-bit,12-bit
• Colour Space: RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
• HDR: HDR, HDR10, HDR10+, Dolby Vision, HLG
• 3D Audio Format: Yes

Video Resolution

• (Input & Output): 640x480p60Hz, 800x600p60Hz, 1024x768p60Hz, 1280x1024p60Hz, 1360x768p60Hz, 1440x900p60Hz, 1440x1050p60Hz, 1600x1200p60Hz, 720x480i59.94Hz(480i59), 720x480p59.94Hz(480p59), 720x576i50Hz(576i50), 720x576p50Hz(576p50), 1280x720p50Hz(720p50), 1280x720p59.94Hz(720p59), 1280x720p60Hz(720p60), 1920x1080i50Hz(1080i50), 1920x1080i59.94Hz(1080i59), 1920x1080i60Hz(1080i60), 1920x1080p23.98Hz(1080p23), 1920x1080p24Hz(1080p24), 1920x1080p25Hz(1080p25), 1920x1080p29.97Hz(1080p29), 1920x1080p30Hz(1080p30), 1920x1080p50Hz(1080p50), 1920x1080p59.94Hz(1080p59), 1920x1080p60Hz(1080p60), 3840x2160p23.98Hz(2160p23), 3840x2160p24Hz(2160p24), 3840x2160p25Hz(2160p25), 3840x2160p29.97Hz(2160p29), 3840x2160p30Hz(2160p30), 4096x2160p23.98Hz, 4096x2160p24Hz, 4096x2160p25Hz, 4096x2160p29.97Hz, 4096x2160p30Hz, 4096x2160p60Hz

Connection

• Input: 1× HDMI IN [Type A, 19-pin female]
• Output: 4× HDMI OUT [Type A, 19-pin female]

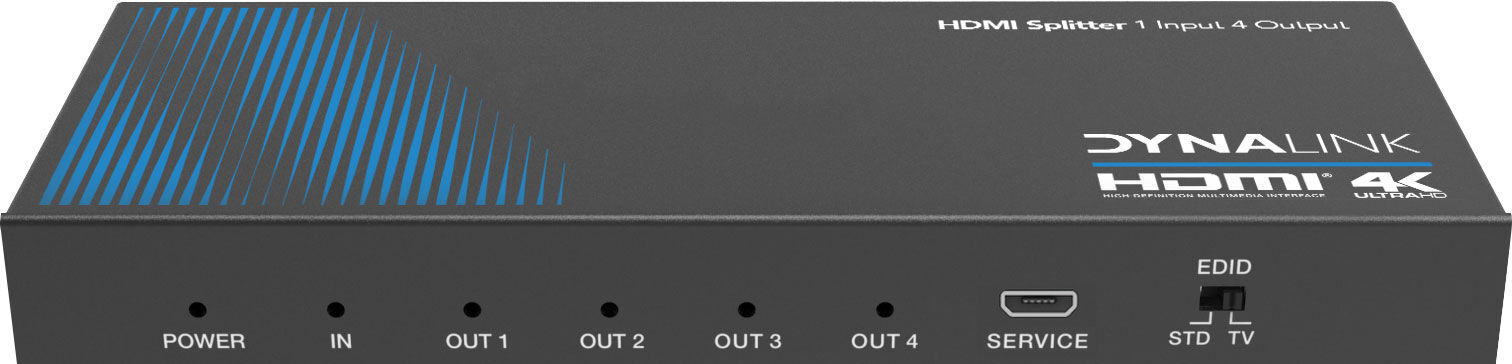

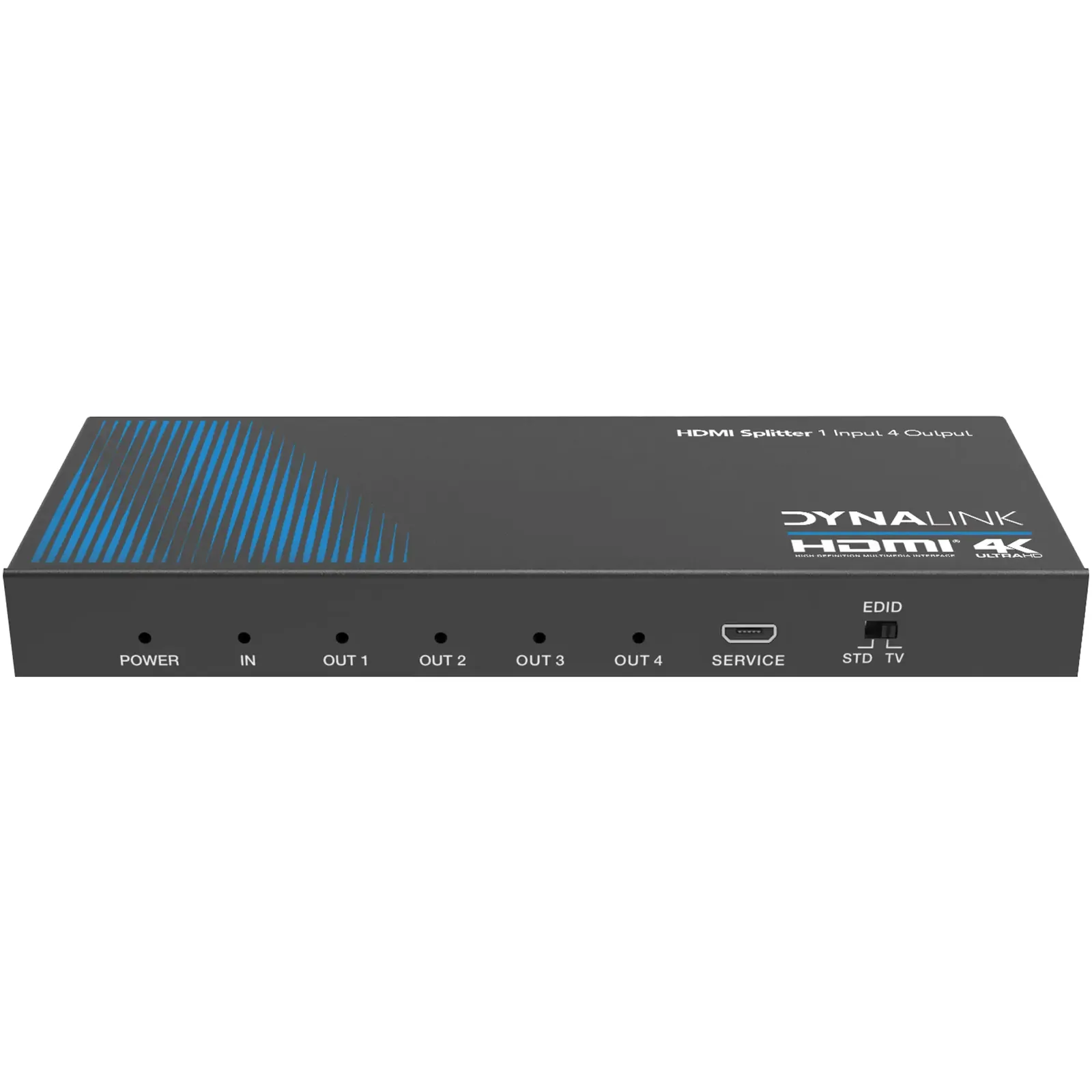

• Control: 1× SERVICE [USB Type C, update port]

Mechanical

• Housing: Metal Enclosure
• Colour: Black
• Dimensions: 163W × 63D × 16Hmm
• Weight: 264g
• Power Supply: DC 5V/1A
• Power Consumption: 3W (Max)
• Operating Temperature: 0°C ~ 40°C
• Storage Temperature: -20°C ~ 60°C
• Operating Humidity 20%~80% relative humidity, non-condensing
• Storage Humidity: 10%~90% relative humidity, non-condensing

Recommended HDMI Cable

• Resolution: 4K60 = 8m Length
• Resolution: 1080P = 15m Length
• The use of “Premium High Speed HDMI” cable is highly recommended.

  *Specifications are subject to change without notice.
