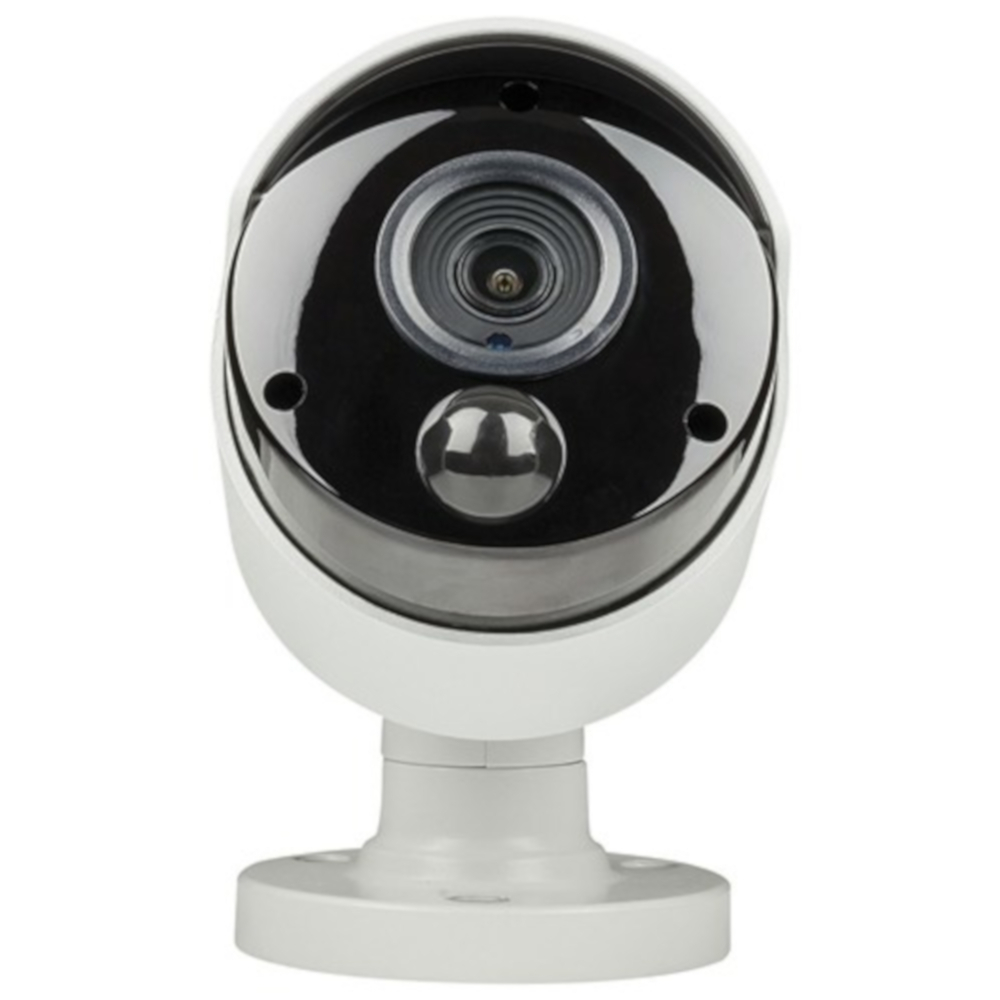

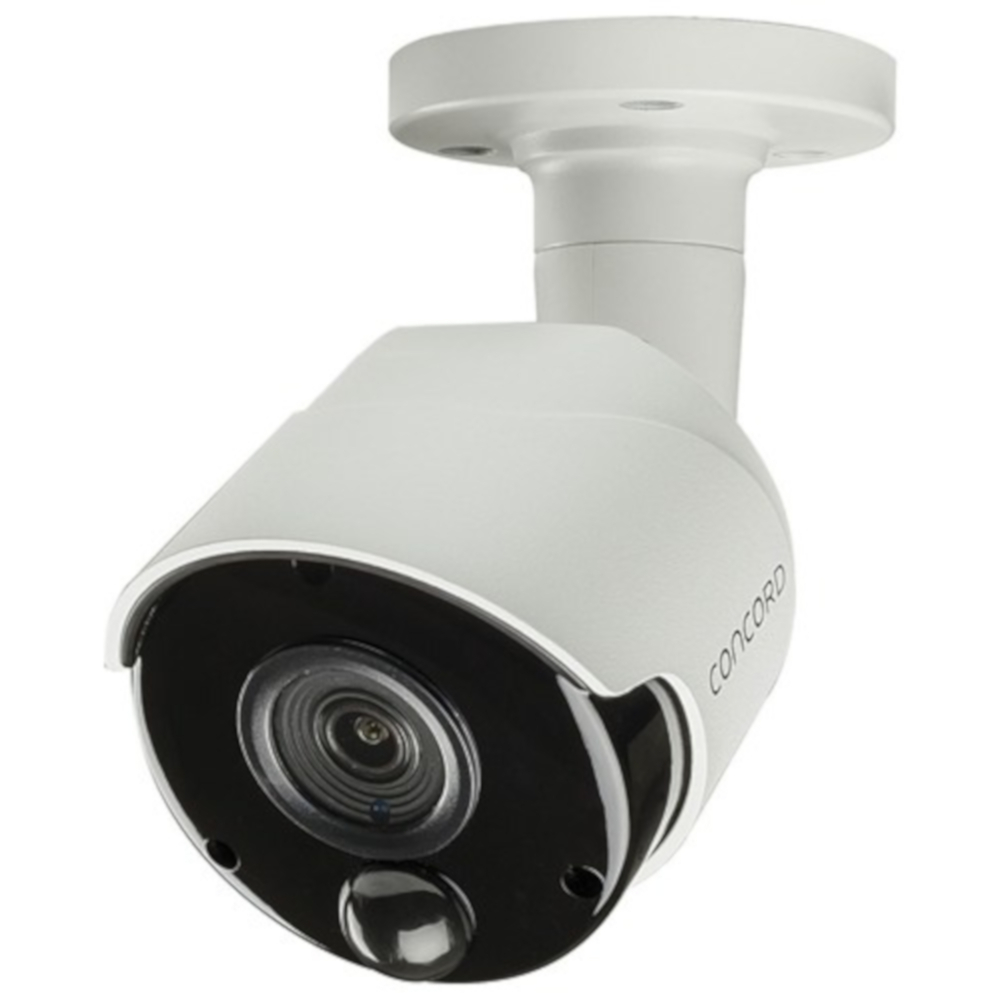

Concord AHD 1080p PIR Bullet Camera surveillance system for more coverage

Expand your surveillance system with this weatherproof HD camera.

The bullet shape makes it more visible for potential intruders, working as a deterrent to protect your property and loved ones.

Features a built-in Thermal Detect Technology for compatible DVR systems and built-in infrared LEDs for night vision up to 15m.

The integrated IR cut filter improves colour reproduction during daylight and automatically switches off in darkness.

CONCORD CDC2ABP-A

Included:

1 x Concord AHD 1080p PIR Bullet Camera

1 x 18m Cable

1 x Mains Power Adaptor

Mounting Hardware

Specifications

Equipment Type : Surveillance Camera

IP Rating : IP66

Dust/Particle Ingress Protection : 6 - Dust tight, no ingress of dust

Liquid/Moisture Ingress Protection : 6 - Powerful water jets

IP rating for : Camera

Dimensions for : Camera

Dimension details : Height includes bracket

Length : 140.0mm

Width : 70.0mm

Height : 85.0mm

PSU Powers : Camera

DC Voltage : 12.0V

DC Current Draw : 250.0mA

Item Connection : Barrel Plug

Suitable PSU Included : true

Resolution Frequency : 30.0Hz

Type of Camera : Bullet

Output Signal : AHD

Resolution : 1080p (1920 x 1080)

Video Output Connection : BNC

Included Lead Length : 18.0m

Lens Diameter : 3.6mm

Lens Angle : 87.0°

Sensor Size : 1/2.8 Inch

Sensor Type : CMOS

Frame Rate : 25.0fps

Minimum Illumination : 0.05lux

Infrared Enabled : true

Infrared Range : 15.0m

Thermal Detection PIR Sensor : true

Thermal Detection Range : 10.0m

(QC5020)

12 months

SKU	QC5020
Model #	QC5020
Barcode #	9319236750049
Brand	Concord
Unit Of Measure	1
Assembled Length	0.140m
Assembled Height	0.085m
Assembled Width	0.070m
