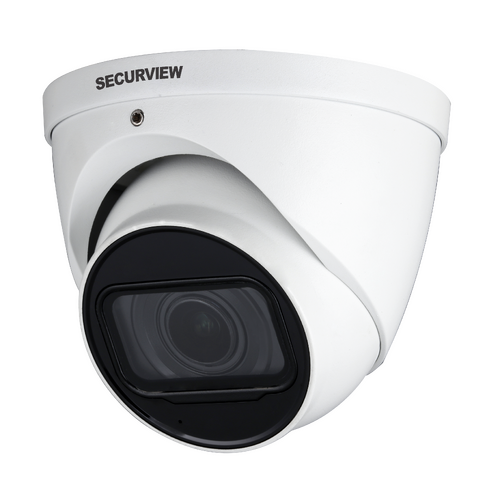

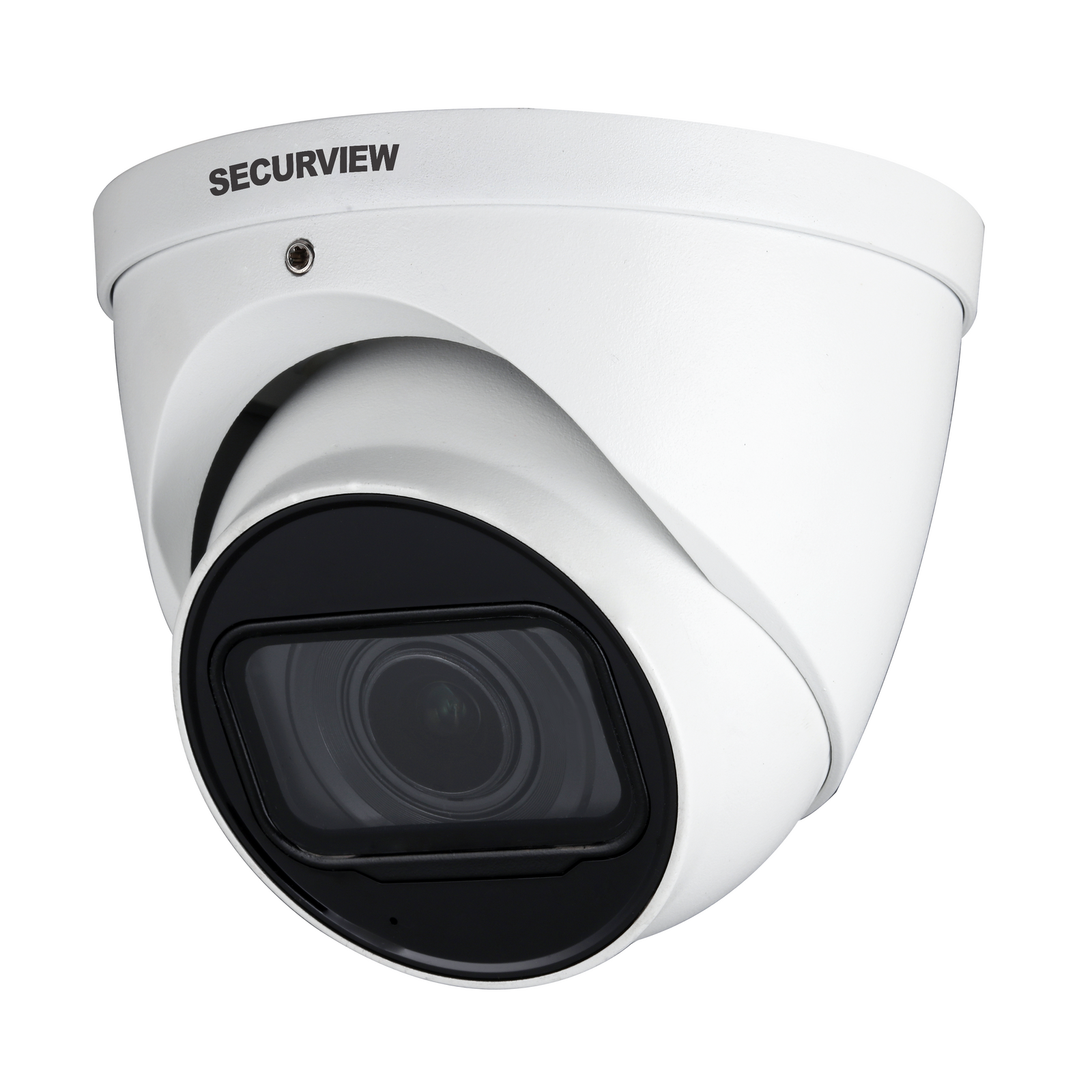

Professional Series 5.0MP Motorised HDCVI Turret

Professional Series 5.0MP Motorised HDCVI Turret

With high resolution image quality up to 5.0MP and a compact, weather resistant metal casing body, the VSCVI-5DIRMG2 captures excellent video footage, ultra-low light performance, long range infrared, and zero image distortion with its flat lens cover
Features

Stream up to 5.0MP (2880 × 1620) at 25fps
Motorised varifocal 2.7~13.5mm lens with fixed iris
31.4° ~ 113° horizontal viewing angles
Superb colour image performance in low light at 0.001lx
Smart infrared illumination, up to 60m range
CVI / TVI / AHD / CVBS / Analog switchable (DIP switch)
True WDR (120dB) and 3D noise reduction
IP67 rated weather resistant metal housing
Dual power input 12VDC/24VAC
Switch modes via DIP switche

Specifications

General

Image Sensor: 1/2.7” 5.0 Megapixel CMOS
Max. Resolution: 5.0 Megapixel
Effective Pixels: 2880 (H) × 1620 (V)
Signal Noise Ratio: > 65dB

Camera

Lens: 2.7mm ~ 13.5mm F1.6 Motorised Lens, fixed iris
Lens Type: Motorised Varifocal
Angle of View: 31.4° ~ 113° (H) / 17.6° ~ 58° (W)
Focus: Fixed / 0.8m Min. Focus Distance
Minimum Illumination: 0.001 Lux at F1.8 (Colour) / 0 Lux IR Active
Electronic Shutter: 1/3s ~ 1/100,000s
Day/Night: Auto (ICR) / Color / B&W
Infrared Range: 60m
White Balance: Auto / Manual
Noise Reduction: 3D
Gain Control: Auto / Manual
Lighting Compensation: BLC / HLC / WDR (120dB)

DORI

Detect (25px/m): 64m
Observe (63px/m): 26m
Recognise (125px/m): 13m
Identify (250px/m): 6m

Video

Resolution: 5.0MP (2880 × 1620) to CIF (352 x 288)
Frame Rate: 25fps (5.0MP and lower)
Transmission Distance: Rated for up to 700m via coaxial cable (performed in ideal test conditions)
