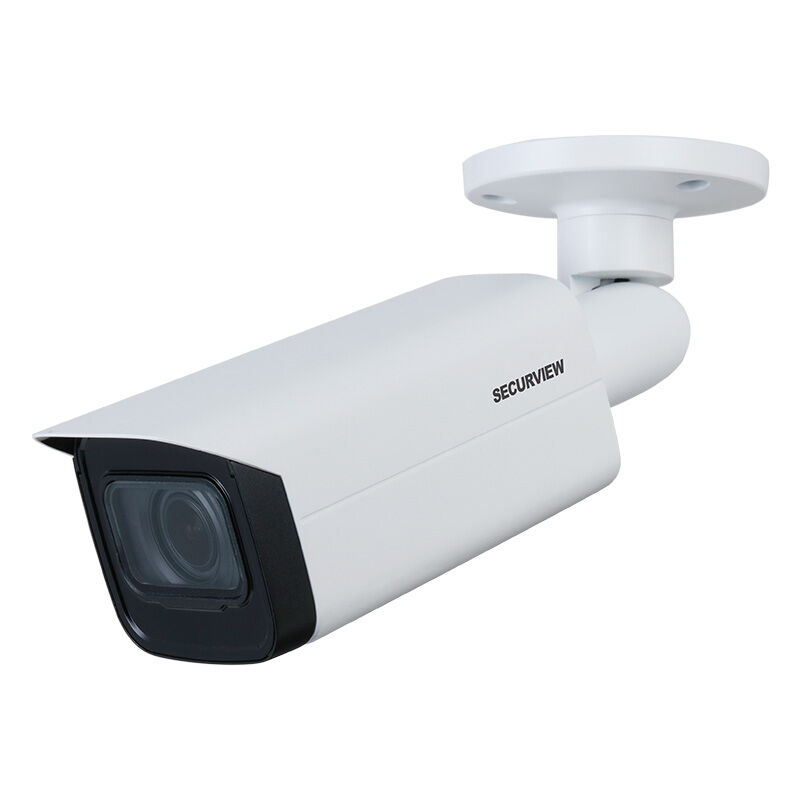

Professional Series 2.0MP WDR Vari-Focal Motorised HDCVI Bullet VSCVI-2BIRMG

With superior 80m infrared illumination, Full HD resolution and superior low light colour performance, the VSCVI-2BIRMG captures clear footage at all hours, featuring a motorised varifocal lens for easy remote image adjustment.

Features:

•  Stream 2.0MP (1920 x 1080) at 25fps
•  Motorised varifocal 2.7~13.5mm lens with fixed iris
•  2.0MP CMOS sensor for excellent low light performance
•  Smart infrared illumination, up to 80m range
•  Single channel audio input with built in microphone
•  Supports HDCVI, AHD, HDTVI & Composite video format modes
•  HDCVI / TVI / AHD / Composite switchable via DIP switch
•  Up to 700m video transmission over coaxial cable
•  True WDR (130dB) and 3D noise reduction
•  IP67 rated weather resistant metal housing
•  Dual voltage power support 12VDC and 24VAC

Specifications

General

• Image Sensor : 1/2.7" 2.0MP CMOS
• Max. Resolution : 2.0 Megapixel
• Effective Pixels : 1920 x 1080
• Signal Noise Ratio : >65db

Camera

• Lens : 2.7mm ~ 13.5mm F1.5 Motorised Lens, Fixed Iris
• Lens Type : Motorized Varifocal
• Angle of View : 108° (wide) ~ 30° (tele)
• Focus : Fixed / 0.8m Min. Focus Distance
• Minimum Illumination : 0.001 Lux at F1.5 (Colour) / 0 Lux IR Active
• Electronic Shutter : 1/25 s ~ 1/100,000s
• Day/Night : Auto (ICR) / Manual / Colour / BW
• Infrared Range : 80m
• White Balance : Auto / Area WB
• Noise Reduction : 3D NR
• Gain Control : Auto/Manual
• Lighting Compensation : BLC / HLC / WDR (130dB)

Video

• Resolution : 2.0MP (1920 x 1080) to 960H (960 x 576)
• Frame Rate : 25fps (1080p and lower)
• Transmission Distance : Rated for up to 700m via coaxial cable (performed in ideal test conditions)

Interface

• Audio Input : 1 Channel built-in microphone
• Alarm Interface : N/A
• Video Output : 1 x HDCVI / AHD / TVI / Composite video output
• Modes Supported : HDCVI, AHD, HDTVI & Composite
• Mode Switching : DIP Switch
• Synchronisation : Internal
• OSD Menu : Support

Environmental

• Ingress Protection : IP67
• Vandal Resistant : N/A
• Series : Professional Series
• Housing : Aluminium
• Camera Type : Bullet
• Tri-Axis Mounting : Yes
• Power Input : 12VDC / 24VAC
• Power Consumption : < 12.5W
• Dimensions : 244.1mm x 90.4mm x 90.4mm
• Weight : 0.79kg
• Operating Environment : -30° to 60°C / RH95% (max)
