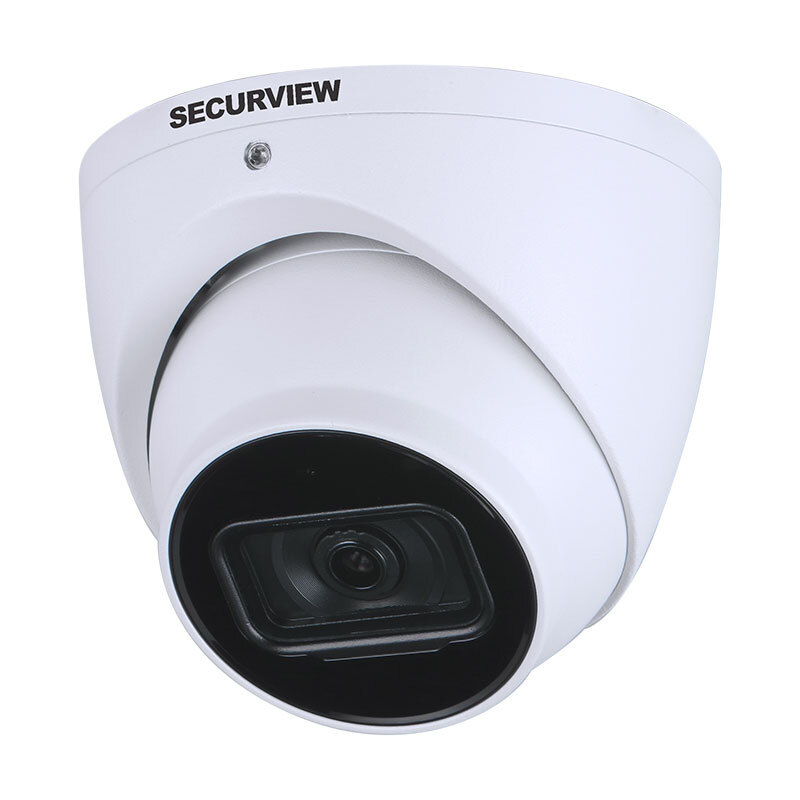

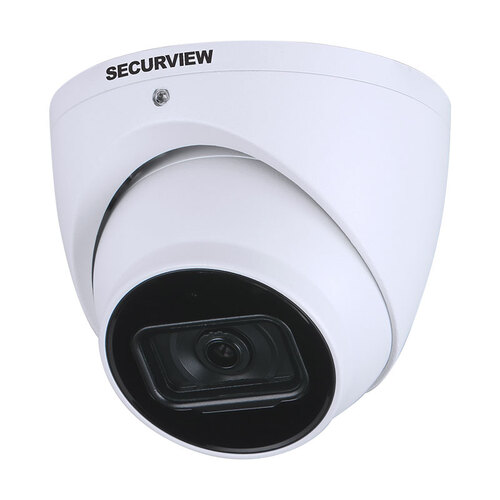

The VSCVI-5DIRG2 offers high performance surveillance over coax in a compact body. Deliver perfect evidence in challenging conditions with weather resistance for outdoor use, ultra low light performance and a small install footprint.

Features:

•  Stream up to 5.0MP (2880 x 1620) at 25fps
•  2.8mm lens with wide 132° viewing angle
•  Superb colour image performance in low light at 0.001lx
•  Smart infrared illumination, up to 50m range
•  Switchable BNC output for HD/composite video
•  True WDR (120dB) and 2D/3D noise reduction
•  Up to 700m video transmission over coaxial cable
•  IP67 rated weather resistance
•  Compact Ø106mm base for versatile installation
•  Supports HDCVI, AHD, HDTVI & Composite video format modes
•  Switch modes via DIP switches

Specifications

Camera

• Image Sensor : 1/2” 5.0 Megapixel CMOS
• Max. Resolution : 5.0 Megapixel
• Effective Pixels : 2880 (H) x 1620 (V)
• Minimum Illumination : 0.001 Lux at F1.6 (Colour) / 0 Lux IR Active
• Electronic Shutter : 1/3s ~ 1/100,000s
• Infrared Range : 50m
• Signal Noise Ratio : >65dB

Lens

• Lens : 2.8mm F1.6 Fixed Lens
• Lens Type : Fixed
• Angle of View : 132° (H) / 111° (V) / 50° (D)
• Focus : Fixed / 0.9m Min. Focus Distance

Video

• Resolution  : 5.0MP (2880 x 1620) to 960H (960 x 576)
• Frame Rate : 25fps (5.0MP and lower)
• Day/Night : Auto (ICR) / Color / B&W
• Lighting Compensation : BLC / HLC / WDR (120dB)
• White Balance : Auto / Manual
• Noise Reduction : 2D / 3D
• Gain Control : Auto
• Transmission Distance : Rated for up to 700m via 75-3 coaxial cable (performed in ideal test conditions)

Interface

• Audio Input : 1 channel in & Built-in mic
• Alarm Interface : N/A
• Video Output : 1 x HDCVI / AHD / TVI / Composite video output
• Modes Supported : HDCVI, AHD, HDTVI & Composite
• Mode Switching : DIP Switches
• Synchronisation : Internal
• OSD Menu : Support

Environmental

• Ingress Protection : IP67
• Vandal Resistant : N/A
• Series : Professional Series
• Housing : Aluminium
• Camera Type : Turret
• Tri-Axis Mounting : Yes
• Power Input : 12VDC
• Power Consumption : <5.9W
• Dimensions : ø106mm x 94mm
• Weight: 0.43kg
• Operating Environment :-40° to 60°C / RH90% (max)
