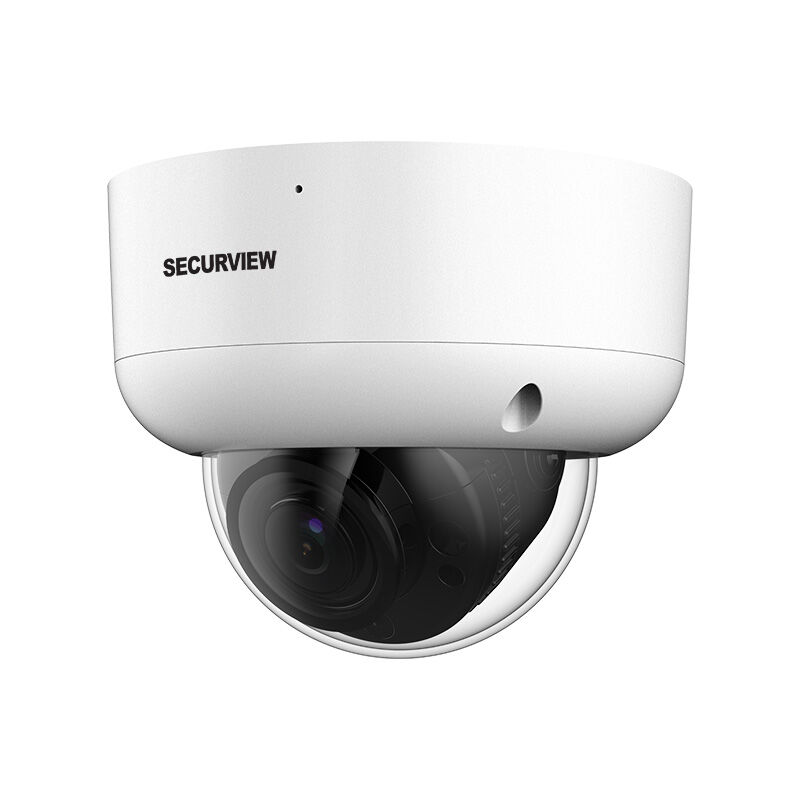

Professional Series 2.0MP Motorised HDCVI Vandal Dome VSCVI-2DIRMD

The VSCVI-2DIRMD captures excellent video footage, ultra-low light performance, long range infrared, and zero image distortion with its flat lens cover.

Features:

•  Stream up to 2.0MP (1920 x 1080) at 25fps
•  Motorised varifocal 2.7~13.5mm lens with fixed iris
•  108° ~ 30° horizontal viewing angles
•  Superb colour image performance in low light at 0.001lx
•  Smart infrared illumination, up to 60m range
•  CVI / TVI / AHD / CVBS / Composite switchable via DIP switch
•  True WDR (130dB) and 2D/3D noise reduction
•  Audio signal transmission over coaxial cable
•  IP67 rated weather resistant metal housing
•  Dual power input 12VDC/24VAC
•  Switch modes via DIP switches

Specifications

General

• Image Sensor : 2.0 Megapixel CMOS
• Max. Resolution : 2.0 Megapixel
• Effective Pixels : 1920 (H) × 1080 (V)
• Signal Noise Ratio : > 65dB

Camera

• Lens : 2.7mm ~ 13.5mm F1.3 Motorised Lens, fixed iris
• Lens Type : Motorised Varifocal
• Angle of View : 108° ~ 30° (H) / 56° ~ 17° (W)
• Focus : Fixed / 0.8m Min. Focus Distance
• Minimum Illumination : 0.001 Lux at F1.5 (Colour) / 0 Lux IR Active
• Electronic Shutter : 1/25s ~ 1/100,000 s
• Day/Night : Auto (ICR) / Color / B&W
• Infrared Range : 60m
• White Balance : Auto
• Noise Reduction : 3D
• Gain Control : Auto / Manual
• Lighting Compensation : BLC / HLC / WDR (130dB)

Video

• Resolution : 1080p (1920 x 1080) to 960H (960 × 576/960 × 480)
• Frame Rate : 25fps (1080p and lower)

Interface

• Audio Input : 1 channel in & Built-in Mic
• Alarm Interface : N/A
• Video Output : 1 x CVI / TVI / AHD / CVBS by one BNC port (DIP Switch)
• Modes Supported : HDCVI, AHD, HDTVI & Composite
• Mode Switching : DIP Switches
• Synchronisation : N/A
• OSD Menu : N/A

Environmental

• Ingress Protection : IP67
• Vandal Resistant : IK10
• Series : Professional Series
• Housing : Metal
• Camera Type : Vandal Dome
• Tri-Axis Mounting : No
• Power Input : 12VDC / 24VAC
• Power Consumption : < 9.9W
• Dimensions : Ø126mm x 100mm
• Weight : 0.65kg
• Operating Environment : -30° to 60°C / RH90% (max)
