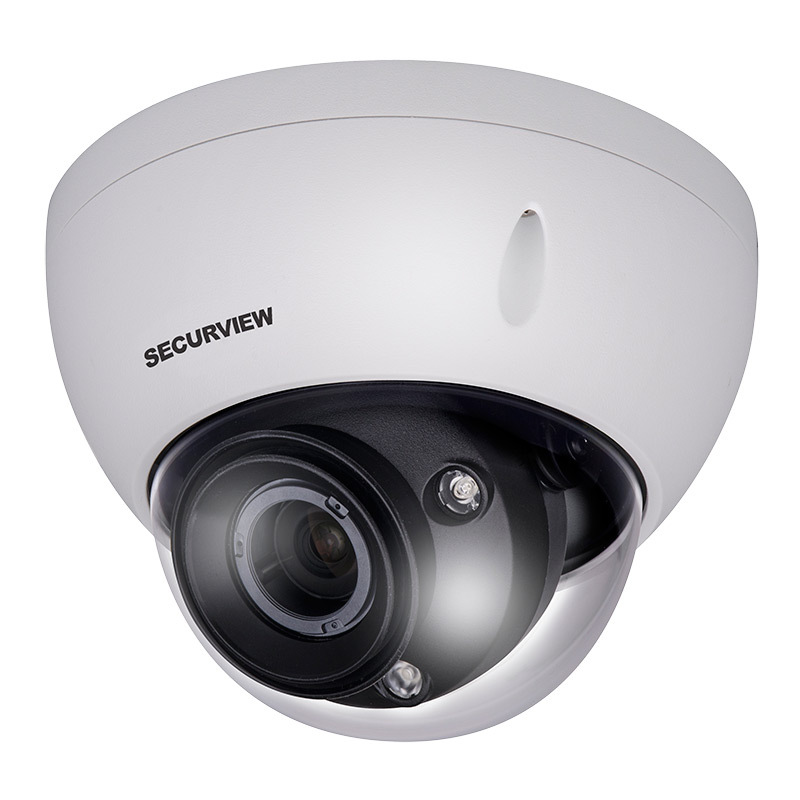

Ultimate Series 8.0MP WDR Motorised HDCVI Dome

The VSCVI8MPVDIRM features an auto iris motorised lens, dual voltage, true WDR and alarm/audio inputs. Experience incredible Ultra HD resolution footage for HDCVI recorders.

Camera Features:

Streams up to Ultra HD 8.0MP (3840 x 2160) at 15fps
Motorised 3.7 ~ 11mm lens, auto iris
Ultra low light colour performance at 0.005lx/F1.5 min illumination
Up to 700m HD video transmission over coax
Infrared illumination up to 50m
High definition & standard definition dual outputs
Alarm and audio I/O interface
True WDR (120dB) & 3D noise reduction
IP67/IK10 metal weather & vandal rated camera housing
Supports HDCVI & Composite video format modes
Switch modes via dual BNC video outputs

Specifications

General

Image Sensor : 1/2” 8.0 Megapixel CMOS
Max. Resolution : 8.0 Megapixel
Effective Pixels : 3840 (H) x 2160 (V)
Signal Noise Ratio : > 65dB

Camera

Lens : 3.7 ~ 11mm F1.5 Motorised Lens; Auto Iris
Lens Type : Motorised Varifocal
Angle of View : 112° (wide) ~ 46° (tele)
Focus : Auto/Manual Focus / 0.2m Min. Focus Distance
Minimum Illumination : 0.005 Lux at F1.5 (Colour) / 0 Lux IR Active
Electronic Shutter : 1/3 ~ 1/100,000s
Day/Night : Auto (ICR) / Colour / B&W
Infrared Range : 50m
White Balance : Auto
Noise Reduction : 2D / 3D
Gain Control : Auto
Lighting Compensation : BLC / HLC / WDR (120dB)

DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)

Detect (25px/m) : 83m (wide) / 190m (tele)
Observe (63px/m) : 33m (wide) / 6m (tele)
Recognise (125px/m) : 17m (wide) / 38m (tele)
Identify (250px/m) : 8m (wide) / 19m (tele)

Video

Resolution : 8.0MP (3840 x 2160) to CIF (352 x 288)
Frame Rate : 15fps (8.0MP) / 25fps (4.0MP and lower)
Transmission Distance : Rated for up to 700m via 75-3 coaxial cable (performed in ideal test conditions)

Interface
