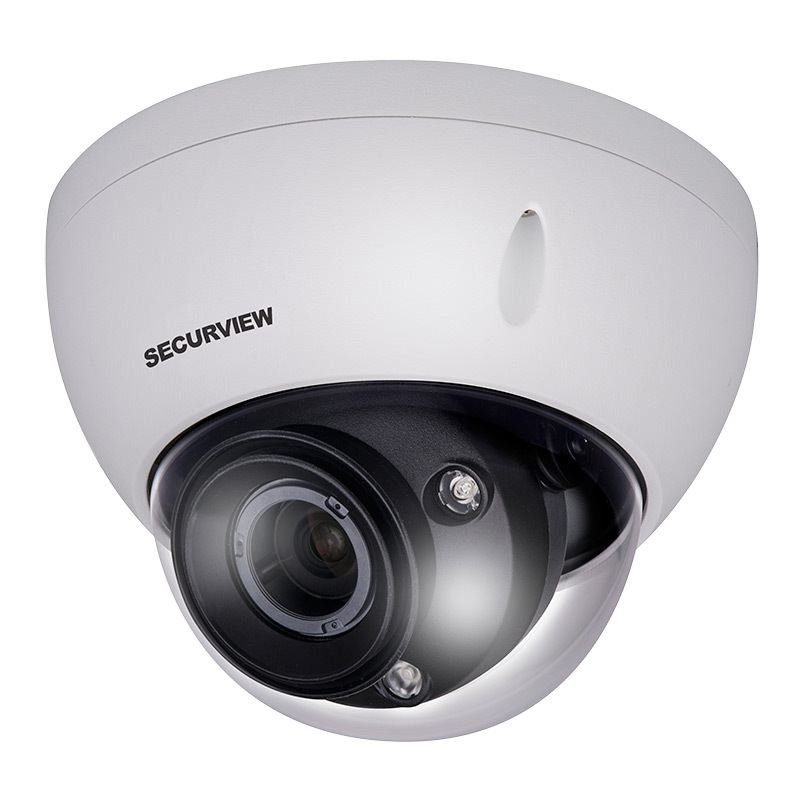

Ultimate Series 1080p WDR Motorised HDCVI Dome

The VSCVI2MPVDIRM50M features dual voltage, auto iris motorised lens, alarm & audio input, and is tri-axis adjustable. Experience unparalleled nighttime performance with ultra low light colour recording.

Camera Features:

Stream up to 1080p/2.0MP (1920 x 1080)
Motorised varifocal lens with auto-iris (DC)
Smart infrared illumination, up to 100m range
Up to 700m video transmission over coaxial cable (performed under ideal test conditions)
Colour image in low light at 0.005lx
Dual BNC outputs for HD and composite video
Dual voltage compatible: 12VDC and 24VAC
True WDR (120dB) and 2D/3D noise reduction
IP67/IK10, metal weather rated camera housing
Supports HDCVI & Composite video format modes
Switch modes via dual BNC video outputs

Specifications

General

Image Sensor : 1/2.8” 2.1 Megapixel CMOS
Max. Resolution : 2.0 Megapixel
Effective Pixels : 1945 (H) x 1097 (V)
Signal Noise Ratio : > 50dB

Camera

Lens : 2.7 ~ 12mm Motorised Lens; Auto Iris
Lens Type : Motorised Varifocal
Angle of View : 95° (wide) ~ 36° (tele)
Focus : Auto/Manual / 0.3m Min. Focus Distance
Minimum Illumination : 0.005 Lux at F1.4 (Colour) / 0 Lux IR Active
Electronic Shutter : 1/3 ~ 1/30,000s
Day/Night : Auto (ICR) / Colour / B&W
Infrared Range : 50m
White Balance : Auto
Noise Reduction : 2D / 3D
Gain Control : Auto
Lighting Compensation : BLC / HLC / WDR (120dB)

DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)

Detect (25px/m) : 48m (wide) / 133m (tele)
Observe (63px/m) : 19m (wide) / 53m (tele)
Recognise (125px/m) : 10m (wide) / 27m (tele)
Identify (250px/m) : 5m (wide) / 13m (tele)

Video
