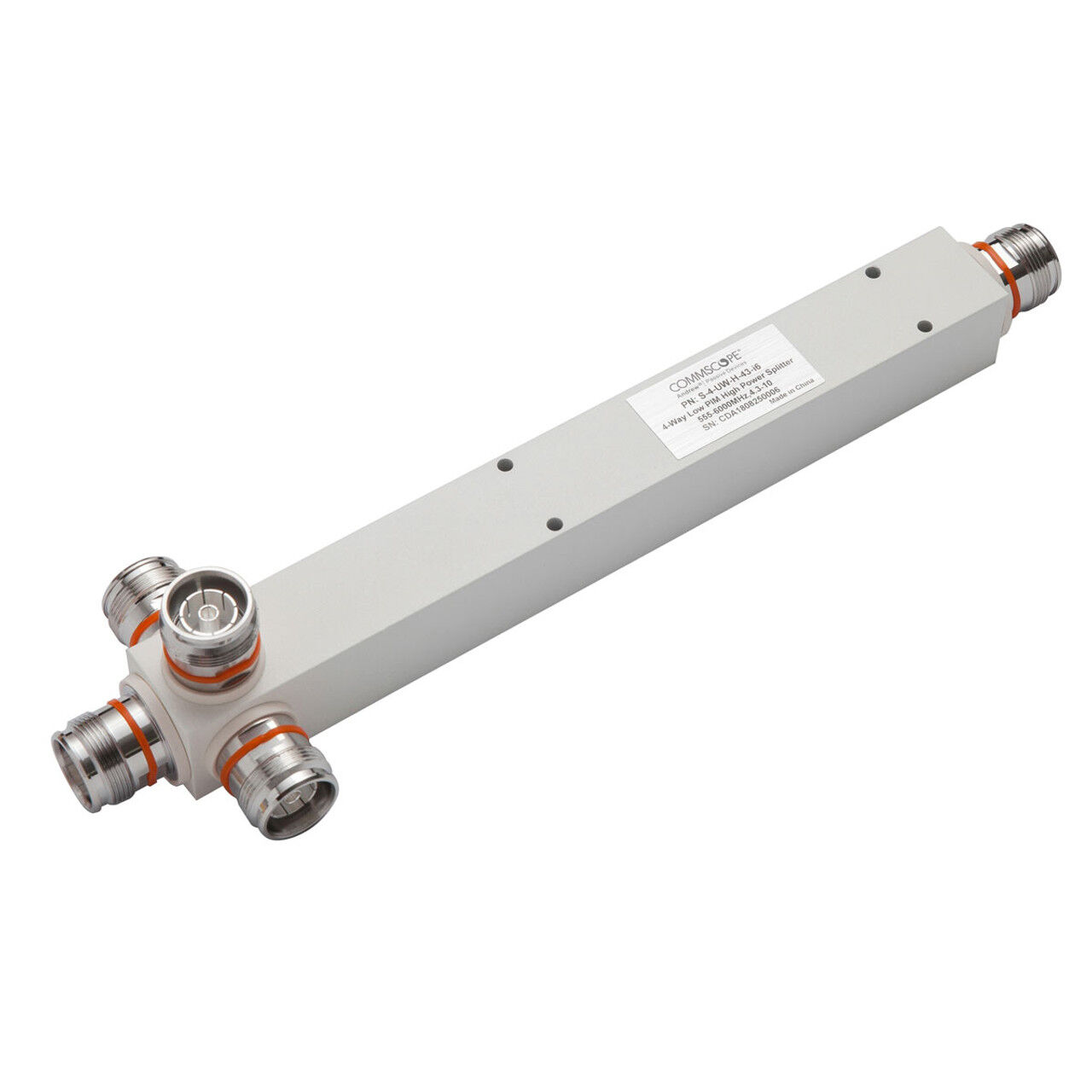

CommScope 4-Way Low PIM 4.3-10Female High Powersplitter 555

CommScope Ultra Wideband 4-Way Low PIM High Power Splitter, 555–6000 MHz

Upgrade your network with CommScope's Ultra Wideband 4-Way Low PIM High Power Splitter, covering 555–6000 MHz. Ensure reliable signal distribution with minimal interference.

Key Features:

Wideband Coverage: 555–6000 MHz frequency range supports LTE, 5G, and future technologies.
Low PIM: Minimized passive intermodulation distortion for enhanced signal integrity.
Reactive Design: Optimized impedance matching for maximum power transfer and minimal loss.
High Power Handling: Suitable for indoor and outdoor installations, even in harsh conditions.
Four-Way Split: Efficiently distribute signals to four output ports for versatile deployment.
Compact and Durable: Precision engineering for long-term reliability and space-saving installation.
Compatibility: Seamless integration with various networking equipment and systems.

Product Classification: Power Splitter
Specification Category	Details
Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Product Type	Power splitter

General Specifications
Specification Category	Details
Device Type	Splitter
Application	Indoor/Outdoor
Color	White
Inner Contact Plating	Silver
Interface	4.3-10 Female
Outer Contact Plating	Trimetal

Electrical Specifications
Specification Category	Details
3rd Order IMD	-165 dBc
3rd Order IMD Test Method	Two +43 dBm carriers
Insertion Loss at Frequency Band	0.3 dB @ 555–2700 MHz \| 0.55 dB @ 2700–3800 MHz \| 0.75 dB @ 3800–4900 MHz \| 1.4 dB @ 4900–6000 MHz
Average Power, maximum	300 W
Impedance	50 ohm
Operating Frequency Band	555 – 6000 MHz
Peak Power, maximum	3 kW
Power Rating, Splitting	300 W
Reflected Power, maximum	300 W
Split Loss	6 dB
VSWR at Frequency Band	1.25 @ 555–2700 MHz \| 1.25:1 @ 2700–3800 MHz \| 1.3:1 @ 3800–6000 MHz

General Information
Manufacturer:	CommScope
Manufacturer Part Number:	S-4-UW-H-43-I6
Barcode:	90007090
Packaging Details
Weight:	0.47 KGS
Width:	7.00 (cm)
Height:	5.00 (cm)
Depth:	31.00 (cm)
