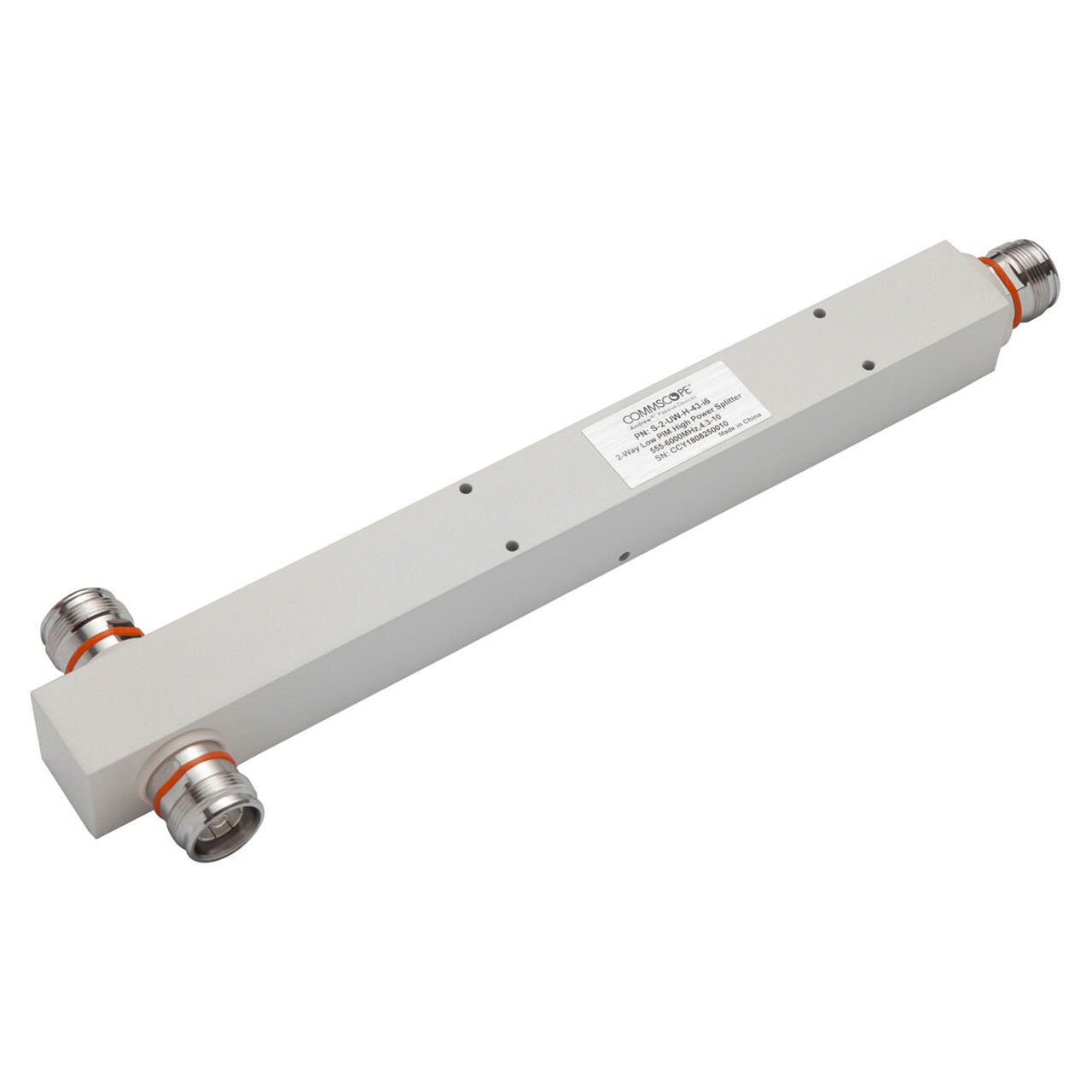

CommScope Ultra Wideband Two-way Low PIM Reactive High Power Splitter, 555–6000 MHz

CommScope Ultra Wideband Two-way Low PIM Reactive High Power Splitter, designed for optimal network performance within the 555-6000 MHz frequency range. Key features include:

  • Wideband Coverage: Supports diverse frequencies for versatile applications.
  • Two-way Splitting: Efficiently distributes signals to multiple destinations.
  • Low PIM: Minimizes intermodulation distortion for signal integrity.
  • Reactive Design: Dynamically adjusts to impedance variations for optimized transfer.
  • High Power Handling: Robust construction withstands demanding applications.
  • Compatibility: Seamlessly integrates with existing infrastructure.
  • Easy Installation: User-friendly design for quick setup and minimal downtime.
  • Product Classification & General Specifications
    Specification Category Details
    Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
    Product Type Power splitter
    Device Type Splitter
    Application Indoor/Outdoor
    Color White
    Inner Contact Plating Silver
    Interface 4.3-10 Female
    Outer Contact Plating Trimetal
    Electrical Specifications
    Specification Category Details
    3rd Order IMD -165 dBc
    3rd Order IMD Test Method Two +43 dBm carriers
    Insertion Loss at Frequency Band 0.2 dB @ 555–2700 MHz | 0.3 dB @ 2700–6000 MHz
    Return Loss, minimum 19.1 dB
    Average Power, maximum 300 W
    Impedance 50 ohm
    Operating Frequency Band 555 – 6000 MHz
    Peak Power, maximum 3 kW
    Power Rating, Splitting 300 W
    Reflected Power, maximum 300 W
    Split Loss 3 dB
    VSWR 1.25

(ACC-CS-00030)

SKU ACC-CS-00030
Barcode # 90007088
Brand COMMSCOPE
