200W MINI AMPLIFIER - ACCENTO DYNAMICA

This amp is remarkably compact, yet still delivers crisp, vibrant sound comparable to much larger bulky amplifiers. The ADA121 features the powerful TDA7498 audio IC that can deliver 2x 100Wrms outputs. The TDA7498 is a dual BTL class-D audio amplifier with a single power supply designed for home audio applications and is fully protected against faults with built-in thermal and short-circuit protection. Perfect for deep bass and an expanded sound stage compatible with most analogue line sources.
The compact size of the Accento Dynamica Class-D amplifier makes it an ideal choice for small areas with limited space or for those looking for a cleaner audio environment. This amplifier is sold without power supply to give you the option of your own voltage source. Unlike analogue amplifiers, the new Cass-D technology is very tolerant of your voltage source allowing compatibility with a wide range of power supplies. For maximum power output, you must match the power supply wattage + about 10%. So for 200Wrms output you will require a 36V@6A power supply. If you select a lower voltage power source then the amplifier will still work perfectly unrestricted but the output power can not exceed the input power. e.g. a 24V@5A power supply will reduce the maximum output volume by a mere -3dB without clipping issues.
Features

• Class D amp combines high fidelity and efficiency
• High power in a convenient compact package
• Highly efficient >90% Dual-BTL Class-D chipset

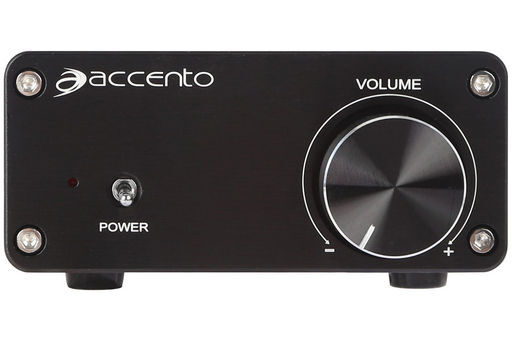

• Simple operation with an on/off switch & volume

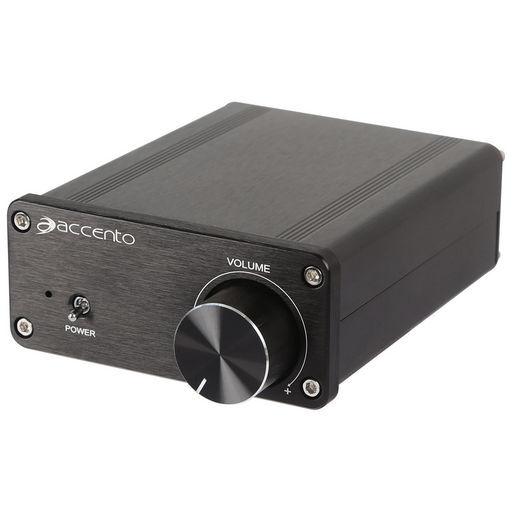

• Quality metal case black anodised extruded aluminium
• Attractive front facia with panel thick brushed aluminium
• Non-scratch rubber feet for desktop use

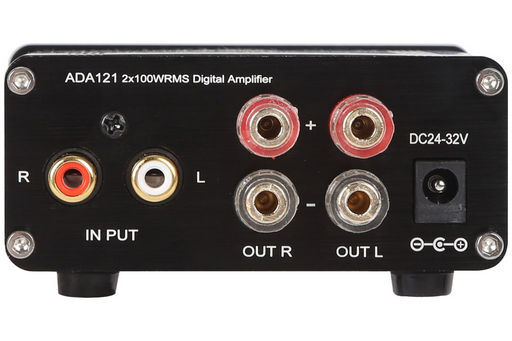

• Analogue Stereo RCA line level gold-plated input
• Bare-wire or 4mm speaker connection terminals
• Super compact 93(w)x43(h)x110(d)mm case
• TDA7498, 93dB, 20-22000Hz, 2x 100Wrms, 4Ω
• Requires 24V-32Vdc power supply (sold separately)

Specifications

• Type: Amplifier Compact
• Channels: Stereo
• Power output: 2 x 100 watts
• Minimum speaker impedance: 4Ω
• SNR: 95dB
• Input impedance: 47kΩ
• Frequency response: 20-22,000 Hz
• Channel separation: 85dB
• Dynamic Range: 95dB
• Signal Input: RCA gold-plated lotus signal input
• Signal output: 4-wire signal output. Bare-wire or 4mm
• Power Supply: Recommended DC24-32V
• DC Plug: O/D 5.5mm, Centre Pin 2.5mm (Positive)
• Case Material: Extruded Aluminium body Anodised front panel.
• Dimensions Case: 93mm(w) x 43mm(h) x 110mm(d)
• Weight: 0.35kg
• Bluetooth: No
• Colour: Black
• Manufacturer: Accento Dynamica
• Noise: 95dB
• Output Speaker: Wire Bare-end or 4mm
• Packaging: Single
• Power (RMS): 51 - 100 Watt
• Price Type: Single
• Size: 43x93x110mm
• Vmin 24Vdc
• Voltage: 12V
• Audio Output: Class-D
