Overview

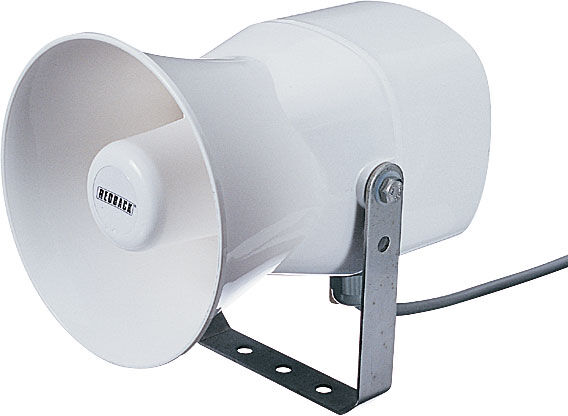

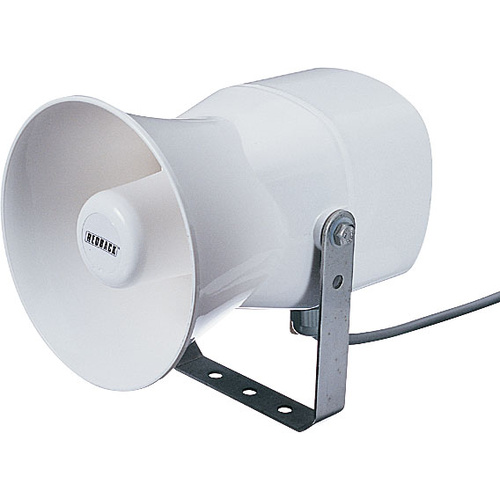

The REDBACK® C 2047 is specifically designed for applications with a high level of dust or moisture in the operating environment. The speaker is compliant with IP67 dust and hose-proof standard. Made from tough UV stabilised ABS, this speaker includes stainless steel exterior metal hardware. Featuring an operating temperature range of -30°C to +55°C, this horn speaker can be utilised in schools, train and bus stations, airports, car parks and cool rooms. Power taps are selectable to suit the power of the amplifier or the area to be covered.

Perfect for cool rooms with an operating temperature down to minus 30°C!

Features

• UV stabilised ABS construction
• Operating temperature range -30°C to +60°C
• Stainless steel mounting hardware
• Complies with IEC529 / IP67 dust and hose-proof standard
• Selectable 100V line power taps 1.9, 3.75, 7.5W, 15W & 30W
• High efficiency driver and line transformer

100V Power Taps

• Blue: 30W, 333 Ohms
• Yellow: 15W, 667 Ohms
• Green: 7.5W, 1.33K Ohms
• Brown: 3.75W, 2.67K Ohms
• Red: Common

 Specifications

• Power taps: 1.9, 3.75, 7.5, 15 & 30W
• SPL: 105dB, 1W @ 1m
• Temp. range: -30°C to +60°C
• IP rating: IEC529 / IP67
• Freq. response: 500Hz - 7kHz
• Flare diameter: 130Ø x 180mm
• Weight: 1.4kg

  *Specifications are subject to change without notice.
