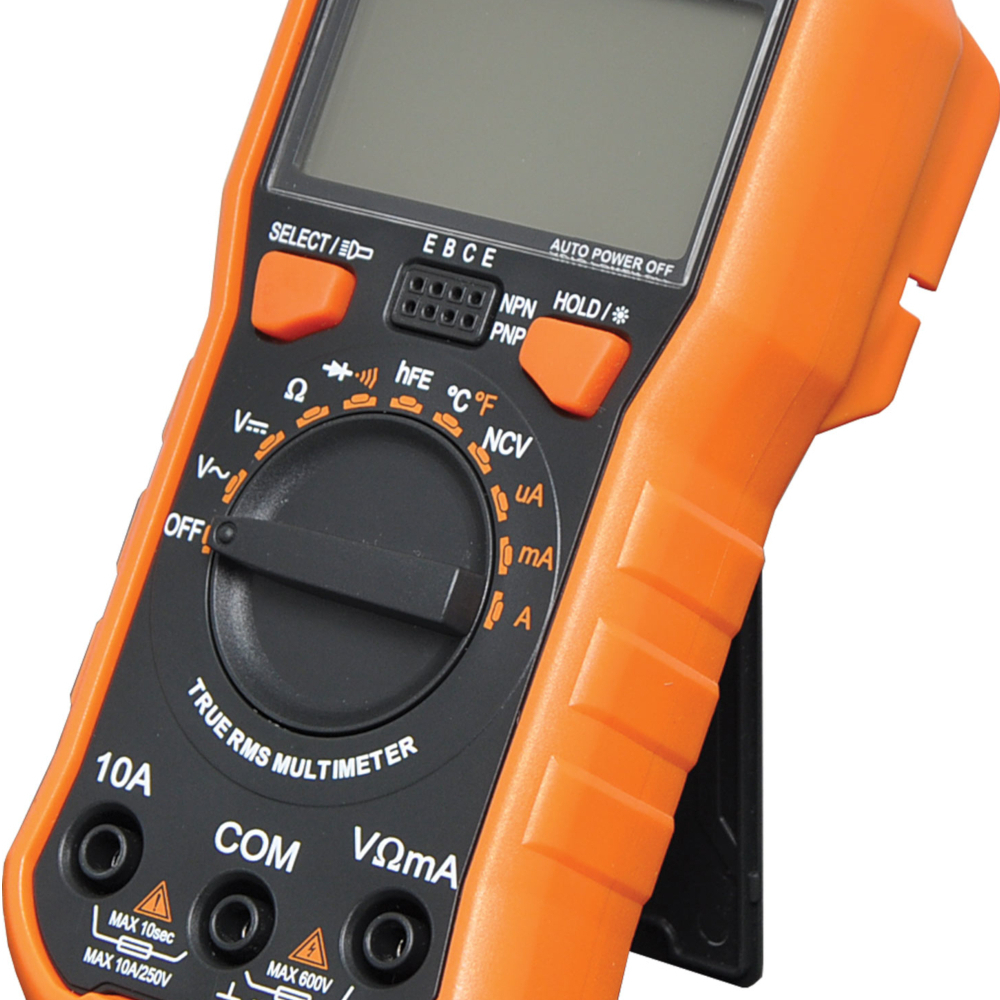

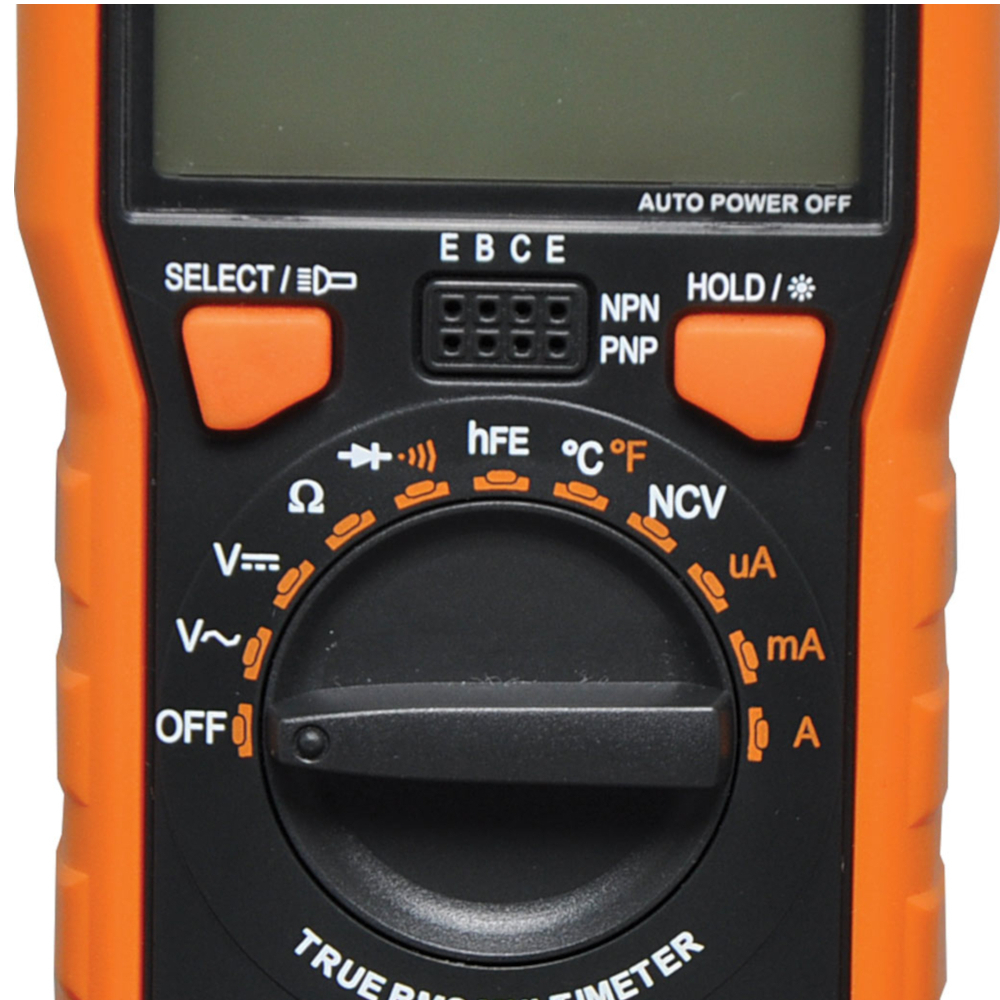

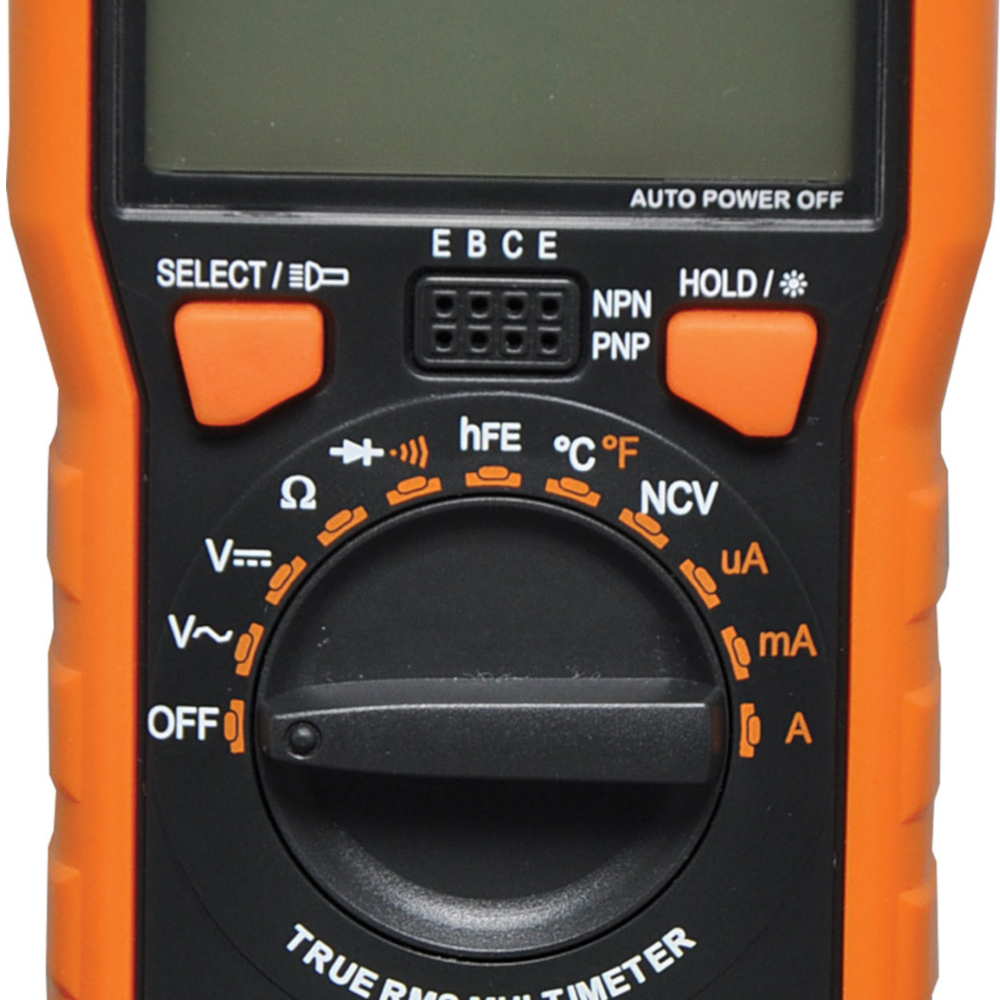

An affordable, versatile meter designed for the electronics enthusiast or handyman. Auto-ranging design makes it easy to use single handed when testing - no need to switch ranges all the time! It includes a non-contact voltage detector for identification of live wires. Includes test leads, holster & temperature probe.
Features
- New type holster, streamlined design, comfortable handle;
- Large LCD display makes reading clear;
- Strong antimagnetic and anti?interferential performance;
- Auto power off when there is no measurement in 15minutes
- Full function protection
- Unit symbol display, easy to read
- True RMS, non contact voltage detect (NCV) and data hold fucntion
- Lighting function, backlight display.
- Specifications
- Technical Data
- DCV: 200mV/2V/20V/200V/600V, ±(0.5%+4)
- ACV: 2V/20V/200V/600V, ±(0.8%+6)
- DCA: 200uA/2000uA/20mA/200mA/2A/10A, ±(1.0%+5)
- ACA: 200uA/2000uA/20mA/200mA/2A/10A, ±(1.5%+5)
- Resistance: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ, ±(0.8%+1)
- Temperature: ?40°C~1000°C, ±(1.0%+5)
- 0°F~1832°F, ±(1.0%+5)
- Special function
- True RMS: Yes
- NCV: Yes
- Data hold: Yes
- Function protection: Yes
- Torch function: Yes
- Backlight display: Yes
- Diode test: 0V~2V, it displays “OL” if over 2V
- hFE test: 0~2000
- Continuity alarm: Less than 50Ω, it displays “OL” if over 200Ω
- Low battery indicator: Approx. less than 2.4 V
- Auto power off: About 15 minutes
- Input impedance: 10MΩ
- Sampling rate: 3 times/s
- AC frequency response: 40Hz?2kHz
- Operation method: Auto range
- Max. display: 2000
- LCD dize: 61x28mm
- Battery: 3V AAA×2
- Power consumption: Quiescent current about 2mA
- General
- Color: Orange and Grey
- Weight: 195g(including battery)
- Dimensions: 140×72×37mm
- Accessories: Test leads, battery, manual, TP01 temperature probe
(Q1134A)
12MONTHS
SKU | Q1134A |
Model # | Q1134A |
Barcode # | 9321758223604 |
Unit Of Measure | 1 |
