Overview

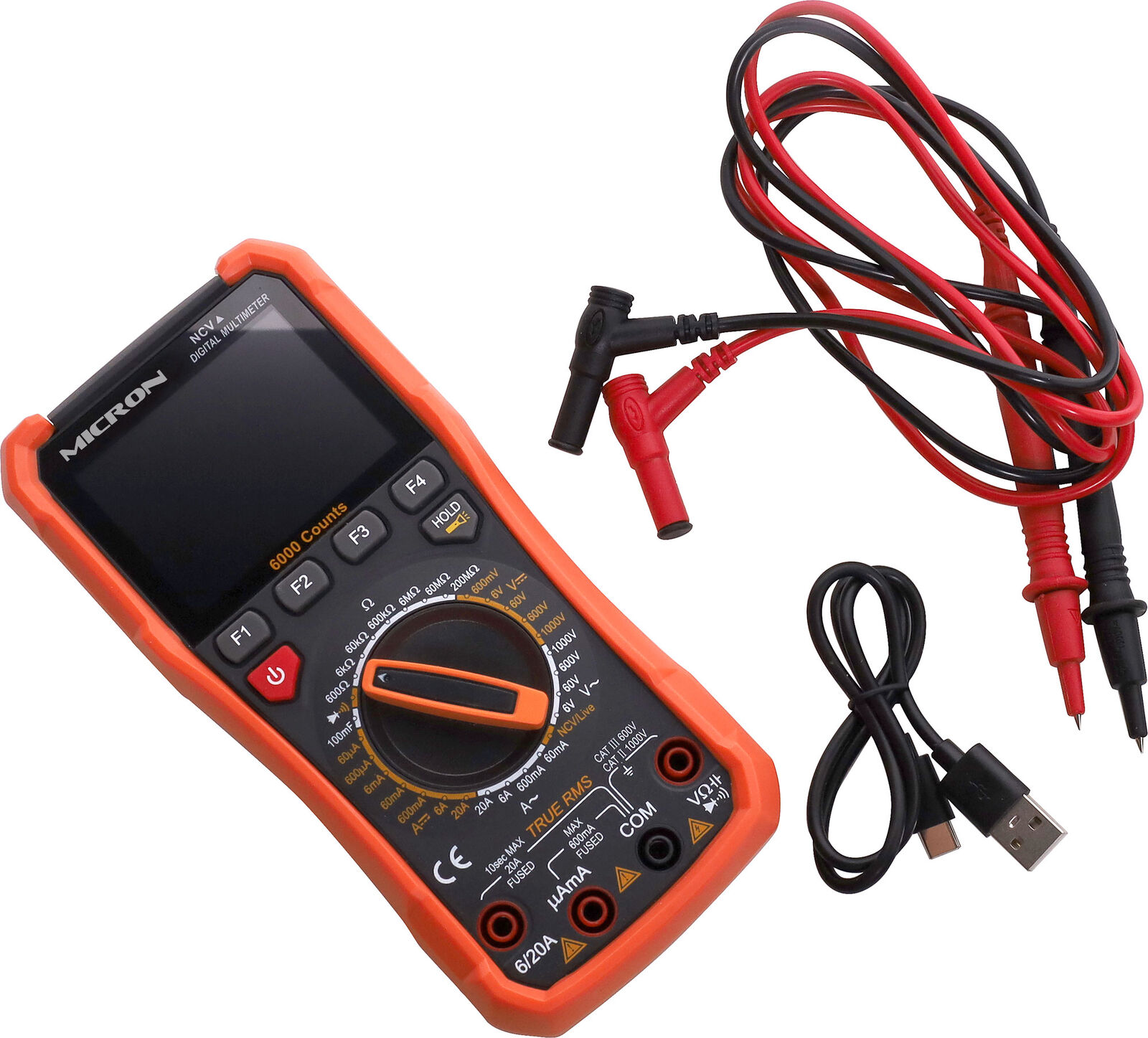

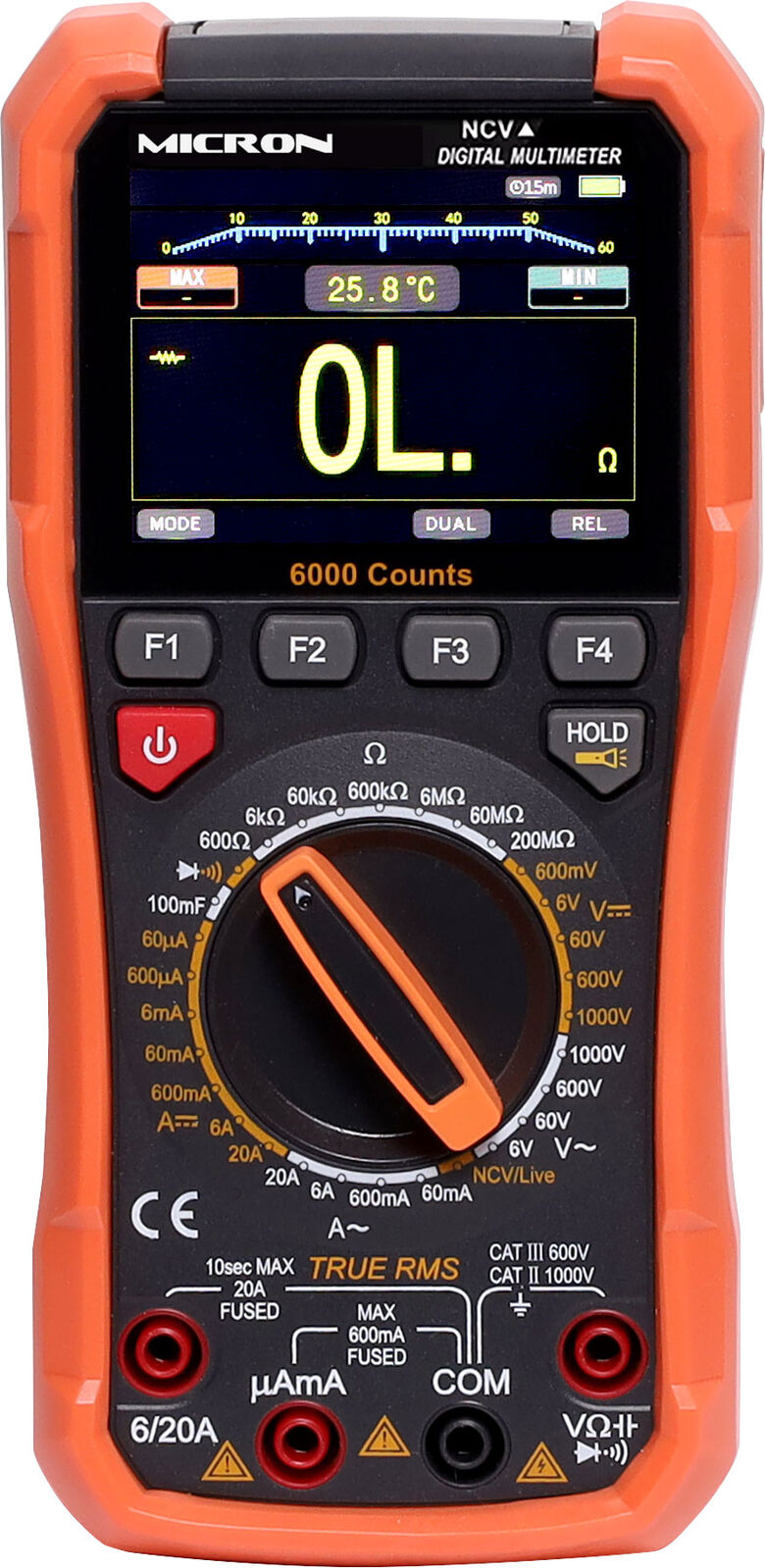

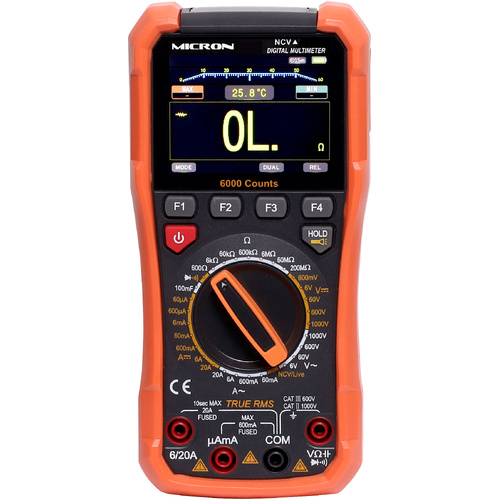

This superbly built 30 range multimeter features a striking 2.8” colour screen with 6000 count readout. It is equipped with a main and auxiliary display showing min, max, level reading and ambient temperature. It is capable of measuring AC/DC voltages up to 1000V as well as current up to 20A, resistance, capacitance, diode test, continuity, non-contact voltage detection & live socket testing. Relative function is provided for monitoring measurement variability, plus min/max recording and data hold. It requires no batteries and is rechargeable using standard USB type C. Includes charging cable, and test leads.

Features

• True RMS AC measurement
• 6000 count 3.75 digit LCD
• Non contact AC voltage detection with live socket test function
• Capacitance measurement
• Fused 20A input
• Continuity and diode test
• Auto power off
• Low battery indicator
• USB C rechargeable
• Data hold mode
• Min/max readings always on screen • Bright 2.3” colour TFT screen
• In built torch
• Cat III 600V, Cat II 1000V

Specifications

• Voltage DC: 600mV, 6V, 60V, 600V, 1000V (±0.5%+3d)
• Voltage AC: 6V, 60V, 600V, 1000V (±0.8%+5d)
• Current DC: 60mA, 600mA, 6A, 20A (±1.5%+10d)
• Current AC: 60mA, 600mA, 6A, 20A (±1.5%+15d)
• Resistance: 600?, 6k?, 60k?, 600k?, 6M?, 60M?, 200M? (±0.8%+3d)
• Capacitance: 6nF, 60nF, 600nF, 6µF, 60µF, 600µF, 6mF, 60mF, 100mF (±3.5%+20d)
• Continuity: Less than 50? (±10?)
• Diode test: Test voltage 3.9V @ 1mA
• Protection: 250V/20A fused
• Display: 3.75 digit TFT colour, 6000 count
• Dimensions: ? 87W x 54D x 181H mm

  *Specifications are subject to change without notice.
