Overview

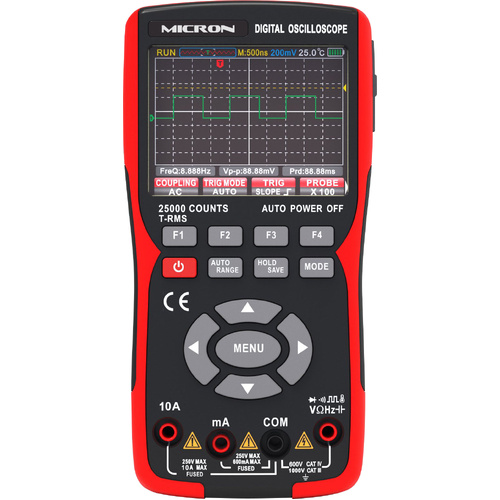

This handheld oscilloscope adopts a dual injection molding process, featuring a beautiful appearance, compact size, convenient portability, and flexible operation. The functional buttons have a clear and intuitive menu interface. The screen utilizes a 3.5-inch IPS full-view color display, with a multimeter display of up to 25,000 counts. This product integrates the functions of an oscilloscope, signal generator, and multimeter into a three-in-one device. With superior performance and powerful functionality, it can be used in various measurement scenarios, meeting a wide range of user measurement needs.

Features

• 2 channel digital oscilloscope + digital multimeter
• Easy to use button and screen layout
• Small enough for single hand operation
• Large, clear 2.8” colour screen 320x240 resolution
• Oscilloscope: 280MSa/s Sample Rate, 50MHz Bandwidth
• USB C recharging with 18650 replaceable lithium battery
• Automatic frequency & amplitude measurement
• 25000 count 10A multimeter

 Specifications

Oscilloscope

• Bandwidth: 50Mhz
• Sample rate range: 200M / 280MSa/s
• Record length: Up to 120Kb
• Vertical sensitivity: 20mV/div - 10V/div
• Trigger type: Rising/falling edge
• Auto wave measurements: Period, frequency, peak to peak value, max value, minimum value, RMS, duty cycle, frequency meter

Multimeter

• Voltage DC: 250mV, 25mV, 2.5V, 25V, 250V, 1000V (±0.05%+3d)
• Voltage AC: 250mV, 25mV, 2.5V, 25V, 250V, 750V (±0.05%+3d)
• Current DC: 25mA, 250mA, 2.5A, 10A (±0.5%+3d)
• Current AC: 25mA, 250mA, 2.5A, 10A (±0.8%+3d)
• Resistance: 250?, 2.5K?, 25K?, 250K?, 2.5M? , 25M?, 250M? (±0.5%+3d)
• Capacitance: 9.999nF, 99.99nF, 999.9µF, 99.99µF, 999.9µF, 9.999mF, 99.99mF (±2%+5d)
• Diode test: 0 - 2.0V

General

• Charging input: USB Type C
• Display: 2.8” 64K colour 320x240 screen, 25000 count DMM
• Dimensions: 177 x 89 x 40mm

  *Specifications are subject to change without notice.
