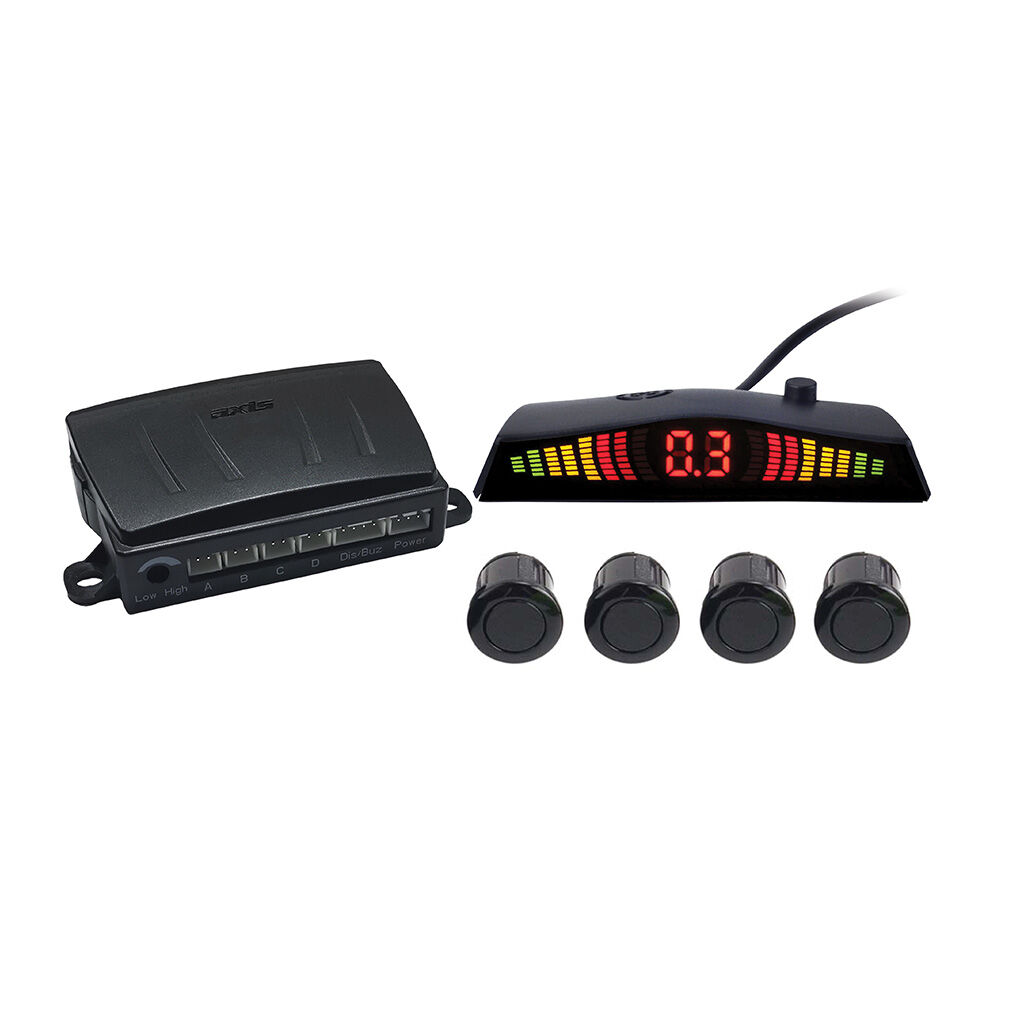

The APS401 is specifically engineered for passenger vehicles and offers a hassle-free parking sensor system.It can be easily installed on both the front and rear bumpers,featuring a LED display and audible alert for accurate distance guidance. Its wide 9-32V DC input allows for compatibility with various vehicle types.

Specifications

GENERAL:

  • Rated Voltage:12/24V DC
  • Operating Range:9-32V DC
  • Operating Current:20 -150mA @12V

LED/BUZZER

  • Proximity Alert:Visual & Audible Tone
  • Audible Buzzer:70-90dB @10cm
  • Cable Length:8m(LED Display)

CONTROL BOX

Adjustments:

  • DIP Switch 1:Front or Rear Use
  • DIP Switch 2:Rear Range Select(Rear Tow Bar Adjustment)
  • DIP Switch 2:Front Range Select
  • Front Setting:Speed Setting Adjustment
  • Front Setting:Auto On/Off with Brake
  • Power Leads:4.5m
  • Dimensions:100 x 54 x 24mm

SENSORS

  • Sensor Type:Paintable ABS
  • Sensor Size:18mm
  • Sensor Hole Cut-out:18.3mm
  • Sensor Cable Length:2.5m

Sensor Installation:

  • Front:400 -500mm High
  • Rear:500 - 600mm High

Detecting Distance:

  • Front Setting:0.3 - 0.9m
  • Rear Setting:0.3 - 2.5m
  • Working Temperature:-30 to +70°C
  • Water Resistance:IP67 .

(APS401)

SKU APS401
Model # APS401
Barcode # 9321886015539
Brand AXIS
