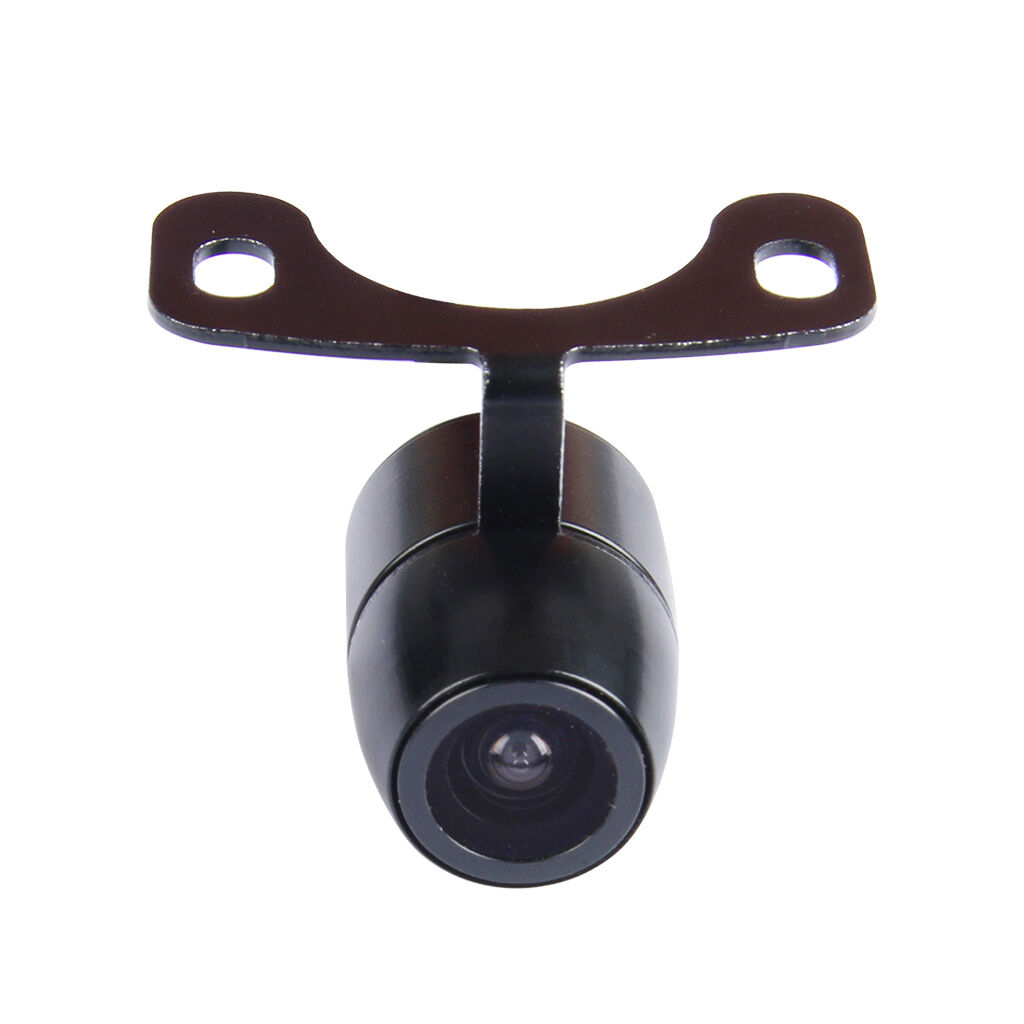

The SD20 offers versatility with its 12/24v input and IP67 weatherproof rating.This rear-view camera seamlessly connects with RCA input LCD monitors,providing a hassle-free installation process.It comes with dual mounting heads,Allowing for flexible license plate or surface mounting options.The camera is equipped with built-in selectable parking guidelines,Enhancing safety and ease while reversing.

Specifications

• Image Device:1/3 CMOS
• Diagonal Viewing Angle:120°
• Horizontal Viewing Angle:100°
• Signal System:PAL
• Effective Pixels:640(H) x 480(V)
• Resolution:480 TV Lines
• Compatibility:All Monitors with RCA Input
• Lens:Full Glass
• Orientation:Selectable Mirror/Non-Mirror
• Guidelines:Selectable On/Off
• Light Sensitivity:0.2 Lux
• Ingress Protection:IP67
• Integrated Microphone:No
• Operating Temp:-20 to 70° C
• Power Consumption:<1W 20-90mA
• Dimensions(Excl. Bracket):16.5W x 16.5H x 23D mm (Excluding Bracket)
• Connection:Mini 4-Pin / Terminated RCA (M)
• Lead:6M
• Power Supply:9-32V DC
• Power Consumption:<1W
• Max Current:<90mA

INCLUDED:

• Dual Mounting Heads (Butterfly and Bumper Fit)
• Installation Hardware
• Metal Hole Saw for Bumper Fit Installation
• 6m Video Cable,Mini 4-Pin terminated RCA (M)
