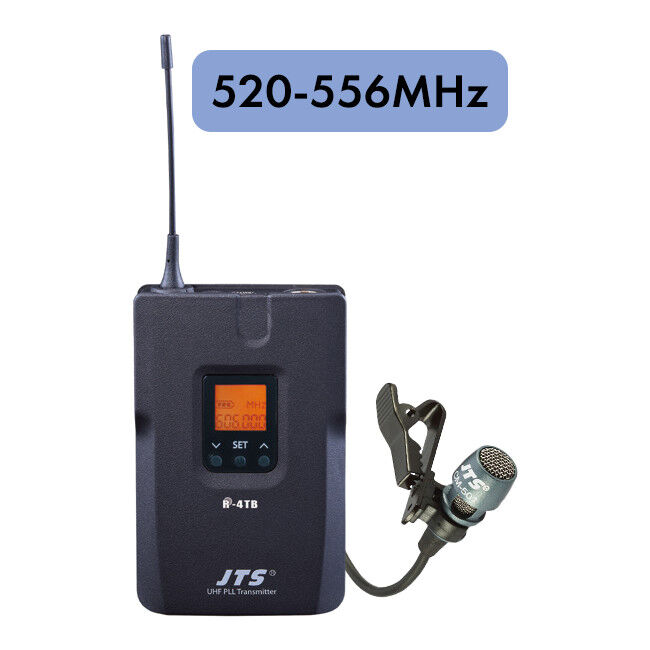

R-4TB JTS transmitter belt-pack inc CM-501 lapel mic for R-4 system- 520-566MHZ

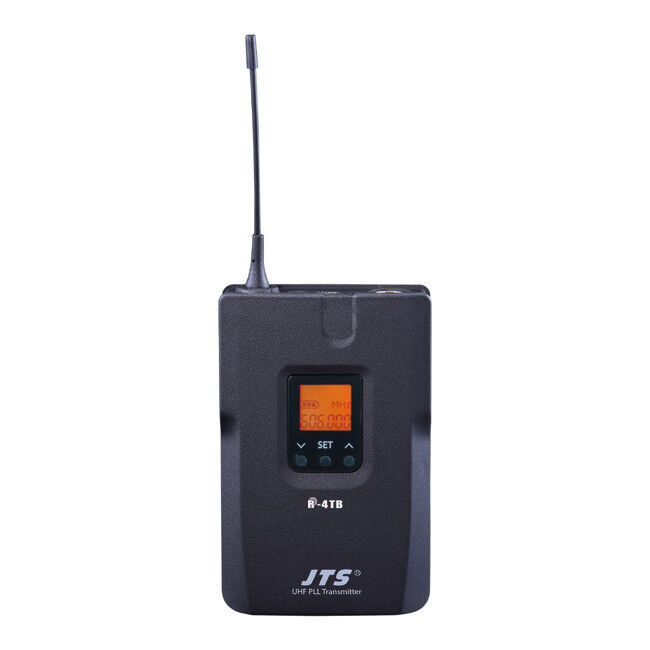

R-4TB

  • 2400 to 3000 selectable frequencies.
  • Preset 15 groups each of up to 63 compatible channels.
  • Phase-Locked Loop (PLL) synthesized tune.
  • Extended dynamic range and smooth frequency response.
  • Adjustable transmission power between Low and High.
  • The panel Lock-On function prevents tampering and RF interruption.
  • Together with JTS various music instrument mics, headset mics and tie clip mics; this bodypack is versatile for all applications.



NEWEST FEATURES:



  • It is designed with slot-in charging feature with two AA NiMH rechargeable batteries.



Specifications:



  • Frequency Preparation
 PLL Synthesized Control
  • Carrier Frequency Range
  • B1: UHF 520~566 MHz
  • B4: UHF 638~674 MHz
  • Bandwidth
 108MHz Wideband
  • RF Outputs
 Low / High
  • Stability
 < ±10KHz
  • Frequency Deviation
 ±48KHz (Peak)
  • LCD Display
 Group, Channel, Frequency, Battery Status, Username, GAIN Adjust
  • Controls
 Power ON/OFF, AF Level, Frequency (Up/Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust
  • Spurious Emissions
 <−50 dBC
  • Audio Frequency Response
 50Hz ~ 18kHz
  • Battery
 UM3, AA ×2
  • Capsules Module
 Interchangeable
  • Dimensions (W×H×D)
 62.3mm × 97.5mm × 20mm
  • Weight
 75g
  • Notes
 Actual product specifications may vary depending on model and region.



CM-501

  • Uni-direction for high-quality voice pick-up.
  • Wide dynamic range and frequency response for excellent sound reinforcement.
  • Small size for minimum visibility.
  • Together with clip for easy attaching to a tie, lapel, dress etc.



Specifications:



  • Connector
 4P Mini XLR
  • Frequency Response
 100~15,000 Hz
  • Polar Pattern
 Cardiod
  • Sensitivity (at 1KHz)
 -60±3 dB* (1mV)
*0dB=1V/µbar
  • Impedance
 2.2kΩ
  • Max. SPL for 1% THD
 130dB
  • Dimensions (W×H)
 Ø10.1mm × 26.4mm
  • Net Weight
 21.5g





(R4TBB1)

SKU R4TBB1
Model # R4TBB1
