BELT PACK WIRELESS MIC SYSTEM 520-556MHZ

Overview

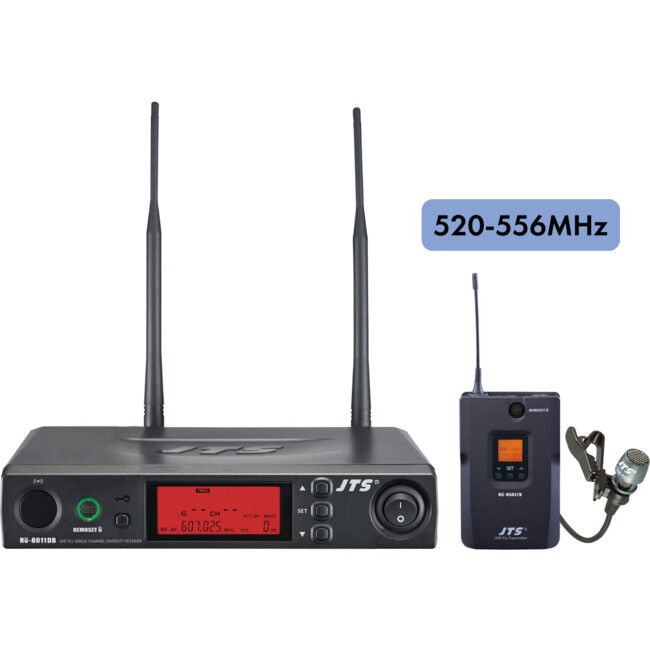

JTS 8011DBKITBB1 single channel Lapel mic system

Includes

RU-8011DB Receiver
RU-850LTB Belt-pack Transmitter
CM-501 Lapel Mic

RU-8011DB

RU-8011DB Receiver

This product is a full feature version of RU-8011D. It is built with detachable BNC antenna. Besides selectable group and channel its frequency can be fine adjusted by interval of 0.025 MHz for multi system application.

SPECIFICATIONS

Frequency Preparation	PLL Synthesised Control
Frequency Setting	JTS patented obstacles-free RF REMOSET
Carrier Frequency Range	UHF 520-556MHz
Channel	Single
Bandwidth	36MHz
S/N Ratio	>105dB (A)
T.H.D	<0.6% @ 1KHz
Rejection Ratio	>80dB
Antenna Type	BNC Socket
Display	LCD
Display contents	Group, Channel, Frequency, Battery Level, Antenna A/B, Mute Display, AF Meter, RF Meter, Frequency Scan, Audio Level, Volume
Controls	Power ON/OFF, Group, Channel, Frequency, Mute Display, Key Lock, Volume, Output Attenuaiton (XLR), Frequency Scan (ON/OFF)
Receiving Mode	Antenna Diversity
Audio Output Level	Ref/ ±22.5KHz Dev @ 1KHz Tone ψ6.3 Phone Jack/ −10dBV XLR Jack/ −4dBV (Line) / −24dBV (MIC)
AF Output Impedance	600Ω
Frequency Response	50Hz~16KHz ±2dB
Squelch	Pilot Tone & Noise Mute
Power Supply	DC 12~15V / 300mA
Output Connector	1 independent balanced XLR and one Ø6.3mm unbalanced.
Sensitivity	−95dBm, S/N >80dB
Antenna Booster Power	DC 12~15V / 100mA
Dimension (W×H×D)	212.3mm × 38.3mm × 144mm

Notes: Actual product specifications may vary depending on model and region.

RU-850LTB

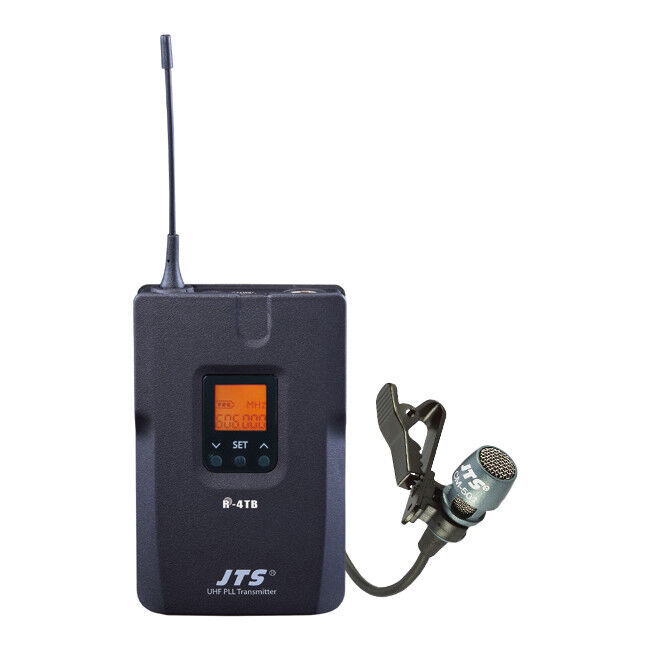

RU-850LTB Belt-pack Transmitter

This innovative bodypack transmitter is designed with both REMOSET U and full function setting at itself. The settings include Frequency, Group/Channel, Sensitivity, RF Power, and Auto Power Off. All data will be transferred to this transmitter by pushing of the REMOSET U button at receiver’s front panel. Auto Power Off feature can be set OFF or ON with selection of 10, 30 and 60 minutes without audio input. This will save battery life and avoid over discharge. Besides REMOSET U a user can carry out setting at transmitter side.

To cope with music instruments a pad of −20 dB is designed. Recharging circuit and connector are already built in case users want to upgrade the system.

Specifications

Frequency Preparation	PLL Synthesised Control
Carrier Frequency Range	UHF 520-556MHz
Frequency Setting	REMOSET U (Receive)
RF Outputs	Low / High
Stability	< ±10KHz @ Fc
Frequency Deviation	±48KHz
Display	LCD + LED
Controls Power	Power, Mute, Group, Channel, Frequency, Gain Adjust, Auto Power Off, Key Lock
Spurious Emissions	< −50dBC
Function	Mute, Auto Power Off, Sensitivity Adjust, Low Battery
Battery	UM3, AA × 2

Input Connector

4P Mini XR

CM-501

CM-501 Lapel Mic

Uni-direction for high-quality voice pick-up.
Wide dynamic range and frequency response for excellent sound reinforcement.
Small size for minimum visibility.
Together with clip for easy attaching to a tie, lapel, dress etc.

Specifications

Connector	4P Mini XLR
Frequency Response	100~15,000 Hz
Polar Pattern	Cardiod
Sensitivity	60 ±3 dB* (1mV)*0dB=1V/µbar
Impedance	2.2kΩ
Max. SPL for 1% THD	130dB
Dimension (W×H)	Ø10.1mm × 26.4mm
Net Weight	21.5g
