FEATURES

  • Streamline in design and light in weight
  • Ruggedized construction for extreme conditions.
  • Can be mounted to car bonnet or bullbar
  • Supplied with 4 m of PT240 LSHF ultra-flex cable with a pre-fitted SMA male connector
Connector SMA Male with 4.5 m Coax Cable
Dimensions ᴓ16 x 600 mm
Weight 1.2 kg
Reflector Material Copper
Radome Material Fibreglass
Antenna Colour Black
Operating Temperature  -40°C to +65°C
Mounting Pole

ᴓ38 –



This premium grade antenna will satisfy 3G and 4G capabilities for all the major networks in Australia and can be used for commercial and industrial 3G and 4G applications.

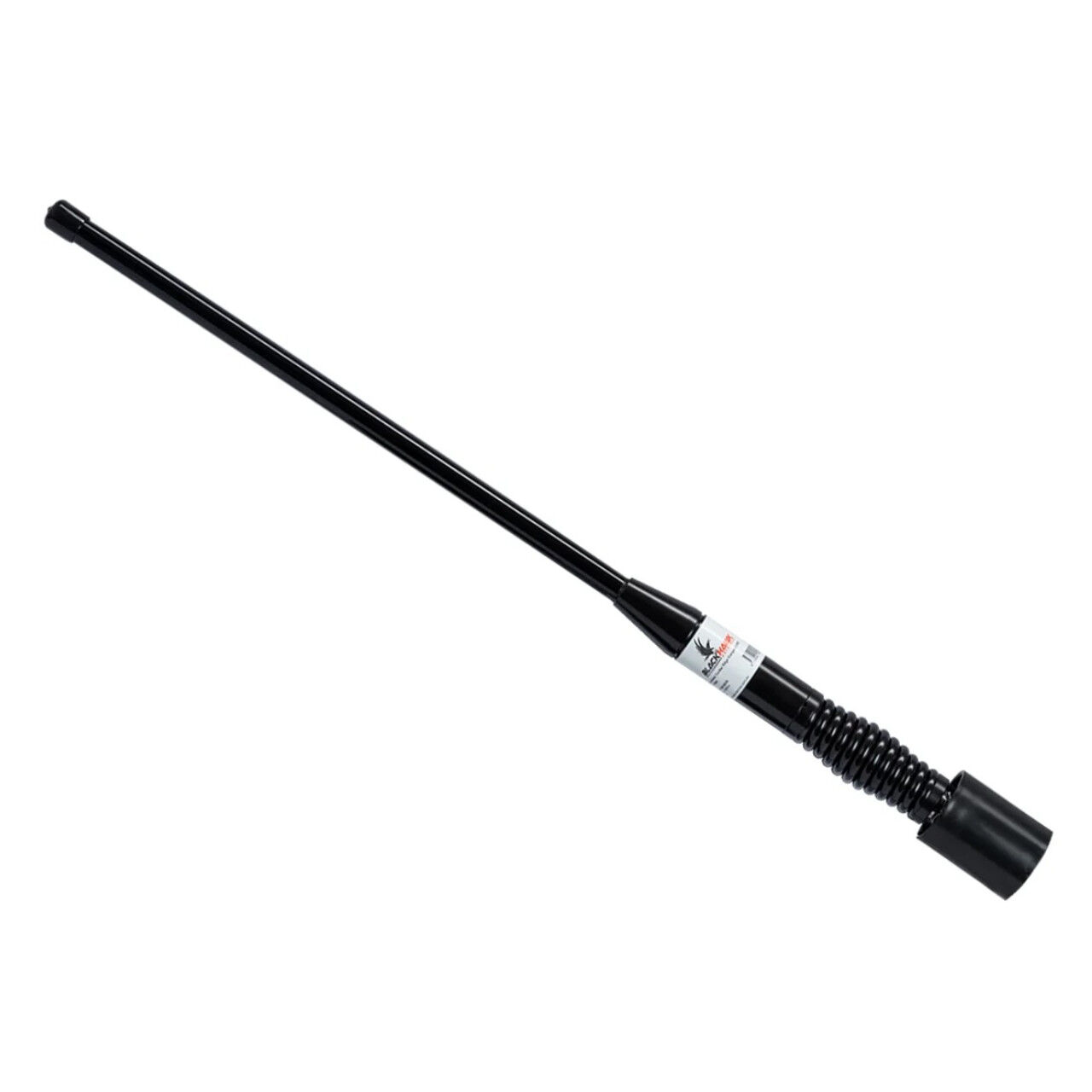

The Blackhawk Omni Trucker Edge Compact LITE at 60 cm will provide the perfect solution for voice and data applications. It is lighter in weight than its sister antenna the Trucker Edge Compact, weighing only 1.2 kg. The new design includes a smaller barrel which helps reduce weight and minimises vibration and subsequent damage caused by driving on corrugated roads found in remote and harsh environments.

ELECTRICAL SPECIFICATIONS

Frequency Range,MHz 698-960 1710-2170
Gain, dBi 4 5
VSWR ≤ 2.0 ≤ 2.0
Polarization Vertical
Horizontal Beam-width 360°
Vertical Beam-width 48° 29°
Input Impedance 50 Ω
Max. Input Power 50 W
Lightning Protection DC Ground





(ANT-BH-00030)

SKU ANT-BH-00030
Model # ANT-BH-00030
Barcode # 9337692000065
Brand BLACKHAWK
