CENTRE AND SURROUND X 2 PACK

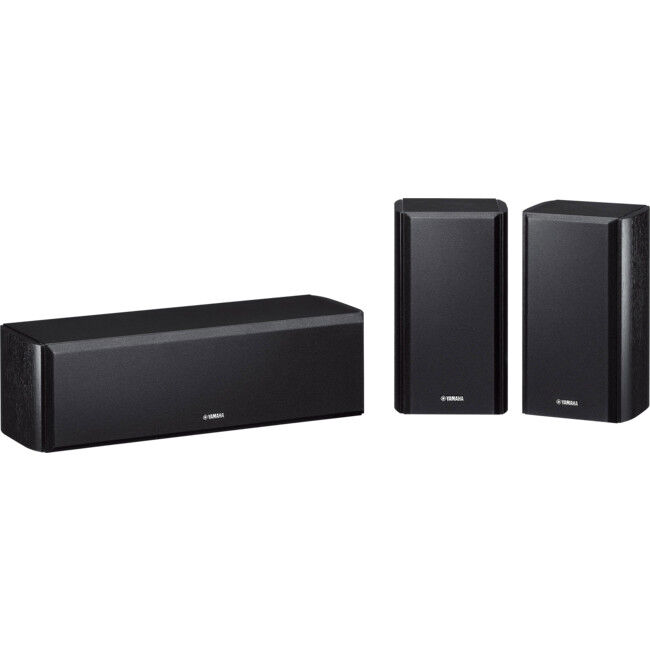

Yamaha NS-P160 Two surround speakers and one centre speaker

Two surround speakers and one centre speaker deliver the high sound quality you expect from Yamaha speakers. All have 2-way acoustic suspension designs with one (surround) or two (centre) 8cm cones and a 1.4cm balanced dome.

Side panels with elegant rounded edges
Perfectly matched home theatre speaker system
Centre speaker has two 8cm cone woofers and a 1.4cm balanced dome tweeter for clear and natural movie dialogue and music vocals
Surround speakers have an 8cm cone woofer and a 1.4cm balanced dome tweeter for cleanly reproduced full-range sound
Large-size, gold-plated screw terminals
Wall Mountable

Side Panels with Elegant Rounded Edges

The side panels provide a suave and sophisticated appearance, which is enhanced by rounded front and rear edges.

Perfectly Matched Home Theatre Speaker System

The NS-P160 and NS-F160 speakers will deliver superb home theatre sound, as they were specifically designed to match each other acoustically.

2-Way, 3-Speaker Centre Speaker for sharp and clear dialogue and vocals

Yamaha recognizes the importance of the centre speaker for both movies and music, and ensures accurate reproduction by using an acoustic suspension design with perfectly matched dual 8cm cone woofers and a 1.4cm balanced dome tweeter.

Large-size, Gold-plated Screw Terminals

The extra-large, screw-type terminals are gold-plated to ensure maximum signal transmission efficiency. They are capable of handling HD audio signals with no loss of sound quality.

Wall Mountable

The centre and surround speakers have keyholes on the back so they can be quickly and securely wall mounted.

		NS-P160
Specifications
Type		2-way acoustic suspension
Center Speaker	Woofers	Dual 8cm (3-1/4”) cone
	Tweeter	1.4cm (1/2”) balanced dome
	Frequency Response	60 Hz38 kHz
	Nominal Input Power	30 W
	Maximum Input Power	80 W
	Sensitivity	86 dB/2.83 V/1 m
	Impedance	6 ohms
	Dimensions (W x H x D)	465 x 135 x 172 mm; 18-1/4” x 5-3/8” x 6-3/4”
	Weight	2.9 kg; 6.4 lbs./unit
Surround Speaker	Woofers	8cm (3-1/4”) cone
	Tweeter	1.4cm (1/2”) balanced dome
	Frequency Response	60 Hz38 kHz
	Nominal Input Power	20 W
	Maximum Input Power	60 W
	Sensitivity	82 dB/2.83 V/1 m
	Impedance	6 ohms
	Dimensions (W x H x D)	150 x 265 x 152 mm; 5-7/8” x 10-3/8” x 6”
	Weight	1.8 kg; 4 lbs./unit
