COMBINATION SIGNAL METER

Overview

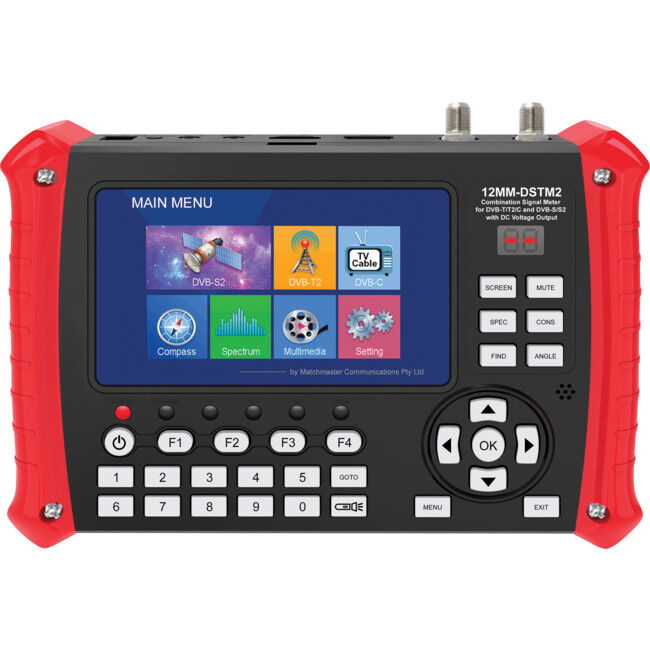

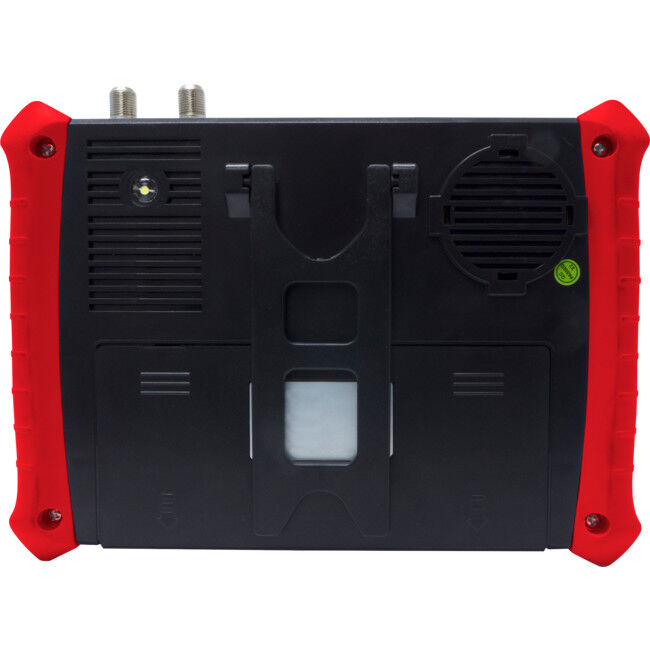

12MM-DSTM2 COMBINATION SATELITE AND FTA SIGNAL METER

The DSTM2 is a tablet-style handheld digital signal meter for DVB-T/T2, DVB-C and DVB-S/S2 with a built-in HD tuner to view clear content. It is a cost-effective solution for testing and installing both satellite dishes and terrestrial antennas.

Supports AV input and output, which can test video sources such as CCTV cameras. Includes voltage output on the terrestrial port for powering of masthead amplifiers.

DVB-T/T2, DVB-C and DVB-S/S2 measurements.
AV input and output suitable for testing and aligning CCTV cameras.
Built-in DC voltage insertion for powering masthead amplifiers.
HD 5″ TFT LCD screen with MPEG2/4 digital tuner built-in with HDMI output of content.
USB 2.0 for software updates and media playback.
The large lithium battery has a capacity of 4000mAh.

Specifications

System Resources	Main Processor	600MHz based CPU
	Flash Memory	64M Bits
	DDR SDRAM	1024M Bits
Tuner/Front-End DVB-S/DVB-S2	Input Connector	F-type, Connector, Male
	Frequency Range	950MHz~2150MHz
	Signal Level	25-108dBµV
	Impedance	75Ω
	LNB Power & Polarisation	Vertical: +13V Horizontal: +18V Current: Max.500mA Overload Protection
	DiSEqC Control	Version 1.0/1.1/1.2/1.3,USALS Available
	22KHz Tone	Frequency: 2231KHz
	Demodulation	QPSK, 8PSK
	Symbol Rate	2~45Msps
DVB-T/DVB-T2 DVB-C	Input Connector	IEC-type, Connector, Male
	Input Frequency	UHF: 470-866MHz VHF: 170-230MHz
	Signal Level	30~109dBµV
	Impedance	75Ω
	DVB-T Power Output (V DC)	5V (Maximum 150mA), 12V and 24V (Maximum 350mA)
	Demodulation	QPSK, 16-QAM, 64-QAM, 256-QAM
	Bandwidth	6, 7, 8MHz
Power Supply	Input Voltage Adapter	100-240V AC, 50/60Hz
	Power Consumption	11W Max.
	Power Charger Output	14V DC 3.0A
	Battery	12.6V/4000mAh
	Battery Charging Time	3~6H
	Battery Standard Discharging Time	>5H
A/V Data Input/Output	A/V IN/OUT	CVBS (Remark: AHD/TVI/CVI/CVBS is optional) input / CVBS output Audio L Input / L/R output
	Audio Output	Built-in Loudspeaker
	HD TV Out	Up to 1080p
	HD TV In	Up to 1080p
	USB	1 × USB 2.0 Slot Compatible for Host
	Transport Stream	MPEG-2/4, H.264, H.265
	Supported Audio Codecs*	AAC, MP3, WMA, WAV
Physical	LCD Display	5″
	Size (W×H×D)	210mm × 150mm × 52mm
	Net Weight	0.93kg
	Operating Temperature	0°C~+45°C
	Storage Temperature	−10°C~+70°C
	Storage Humidity	5%~95% RH (Non-Condensing)
