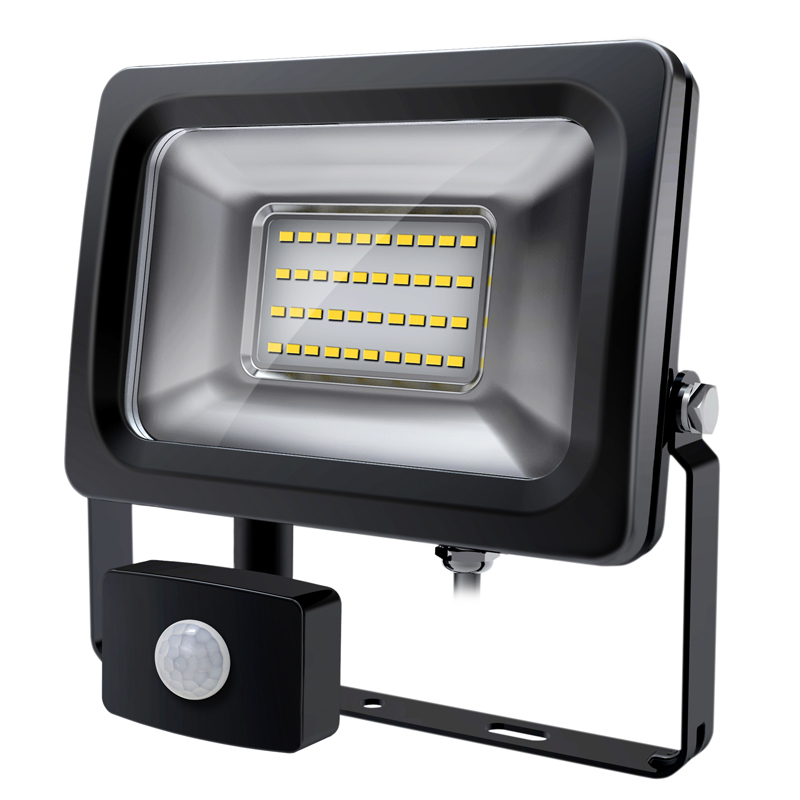

The LFL-C2 Series combines efficient LED flood lighting with customisable motion-sensing technology to compound your energy savings. Available in 20W with adjustable ambient light sensitivity, on-time delay and passive infrared (PIR) motion detection to deliver energy efficient lighting and ideal for security and general purpose lighting.

The LFL-C2 Series is built with a metal, IP65 rated weather resistant chassis, making them suitable for outdoor lighting in residential, commercial and industrial applications.

• Available in 5000K cool white with 120lm/W light output
• Effective light distribution with 120° beam angle
• Adjustable PIR detection up to 12m with a 140° arc.
• Adjustable on-time delay (5s ~ 5min)
• Adjustable U-shape mount with over 180° of motion
• Adjustable PIR bracket (180° panning with 90°~-90° tilt)

Specifications

Optical

• Light Output 2400lm
• Luminous Efficacy 120lm/W
• Colour Temperature 5000K
• Colour Rendering Index >80
• Beam Angle 120°
• Light Decay L70 at 35,000 hours
• Rated Lifespan 35,000 hours

Electrical

• Power Consumption 20W
• Input Voltage 100 ~ 240VAC 50 / 60Hz
• Power Factor >0.95
• Dimmable N/A
• Motion Activated PIR: 140° arc up to 12m range (horizontally), Ø6m range (ceiling)

General

• Ingress Protection IP65
• Plug / Socket / Base Requires 3-pin AC plugBare wire, unterminated
• Reflector / Diffuser Aluminium reflector / Tempered glass front
• Housing Adjustments +180° angle adjustable U-shape bracket / Fully adjustable PIR sensor stalk Adjustable PIR sensor bracket (180° panning, 90°~-90° tilt)
• NSW ESS Accepted N/A
• Operating Environment -20° ~ 50°C
• Dimensions 204 x 206 x 37.5mm

Other

• Ambient Sensor 2~2000lx (adjustable)
• Warranty (Years) 3
