CommScope APT-HFHM Quarterwave Surge Arrestor 695-2700 MHz 4.3-10F-4.3-10M
SKU: ACC-CS-00072

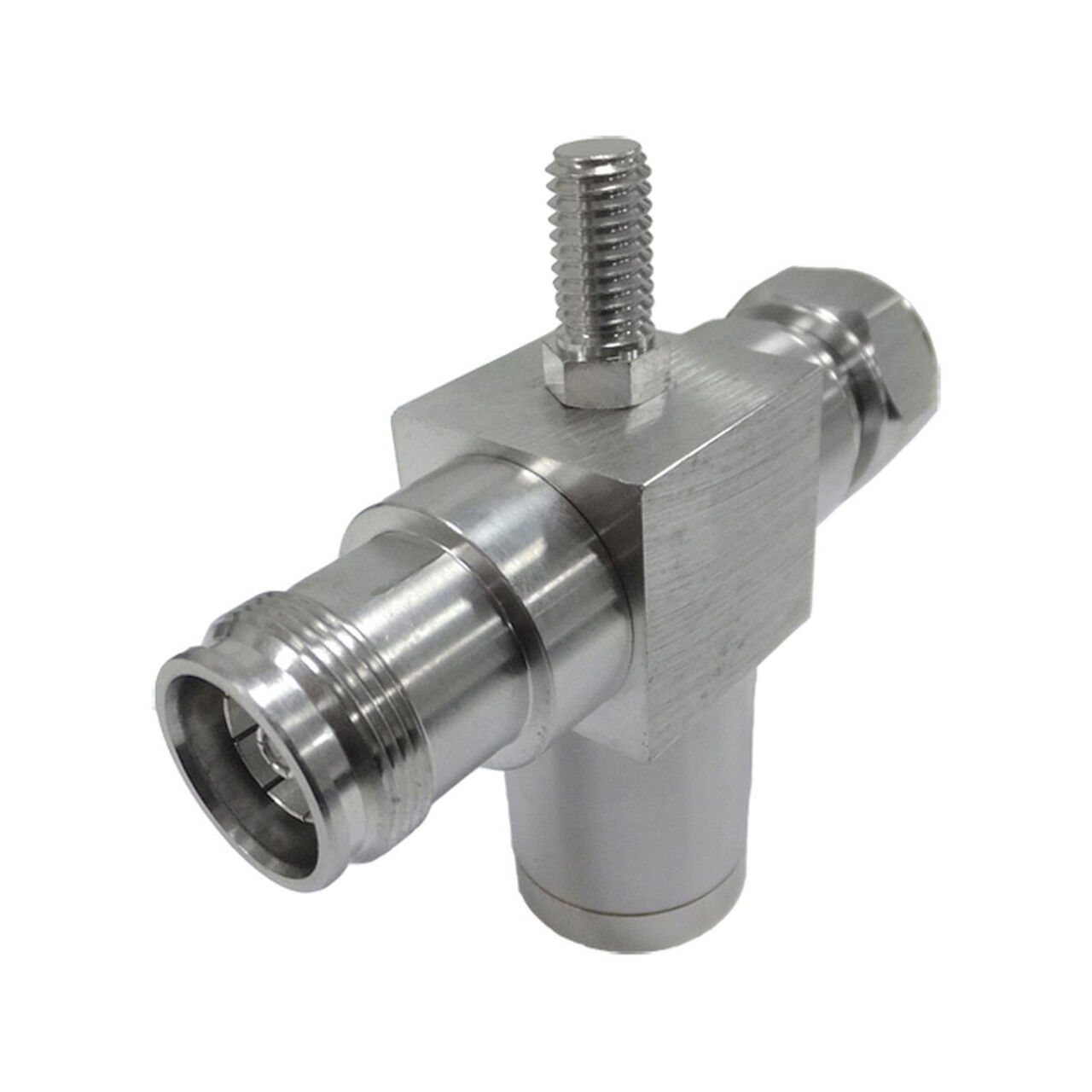

CommScope APT-HFHM Quarterwave Surge Arrestor 695-2700 MHz, 4.3-10 Female to 4.3-10 Male
Safeguard your telecom network with the CommScope APT-HFHM Surge Arrestor. Covering 695-2700 MHz frequencies, it protects against surges and lightning strikes. Featuring a 4.3-10 female to 4.3-10 male connector, it's easy to install and ensures signal integrity. Durable construction and compliance with industry standards guarantee reliability.
Key Features:
- Surge Protection: Shields against voltage spikes and lightning strikes.
- Wide Frequency Range: Covers 695-2700 MHz for versatile use.
- Connector Configuration: 4.3-10 female to 4.3-10 male for secure connections.
- Durable Build: Resilient materials ensure long-lasting performance.
- Easy Installation: Simple setup saves time and effort.
- Compliance: Meets industry standards for reliability.
| Specification Category | Details |
|---|---|
| Product Type | Surge Arrestor |
| Device Type | DC Pass |
| Inner Contact Plating | Silver |
| Interface | 4.3-10 Female |
| Interface 2 | 4.3-10 Male |
| Outer Contact Plating | Trimetal |
| Specification Category | Details |
|---|---|
| 3rd Order IMD Gain | -117 dB |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss, typical | 0.08 dB |
| Connector Impedance | 50 ohm |
| Lightning Surge Current | 10 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
| Operating Frequency Band | 695 – 2700 MHz |
| Peak Instantaneous Power (PIP) | 150 kW RF |
| Frequency Band | VSWR | Return Loss (dB) |
|---|---|---|
| 695–806 MHz | 1.250 | 19.10 |
| 806–2170 MHz | 1.130 | 24.30 |
| 2170–2600 MHz | 1.150 | 23.13 |
| General Information | |
|---|---|
| Manufacturer: | CommScope |
| Manufacturer Part Number: | APT-HFHM |
| Barcode: | 90007437 |
| Packaging Details | |
| Weight: | 0.80 KGS |
| Width: | 2.00 (cm) |
| Height: | 7.00 (cm) |
| Depth: | 9.00 (cm) |
(ACC-CS-00072)
| SKU | ACC-CS-00072 |
| Model # | APT-HFHM |
| Barcode # | 90007437 |
| Brand | COMMSCOPE |
