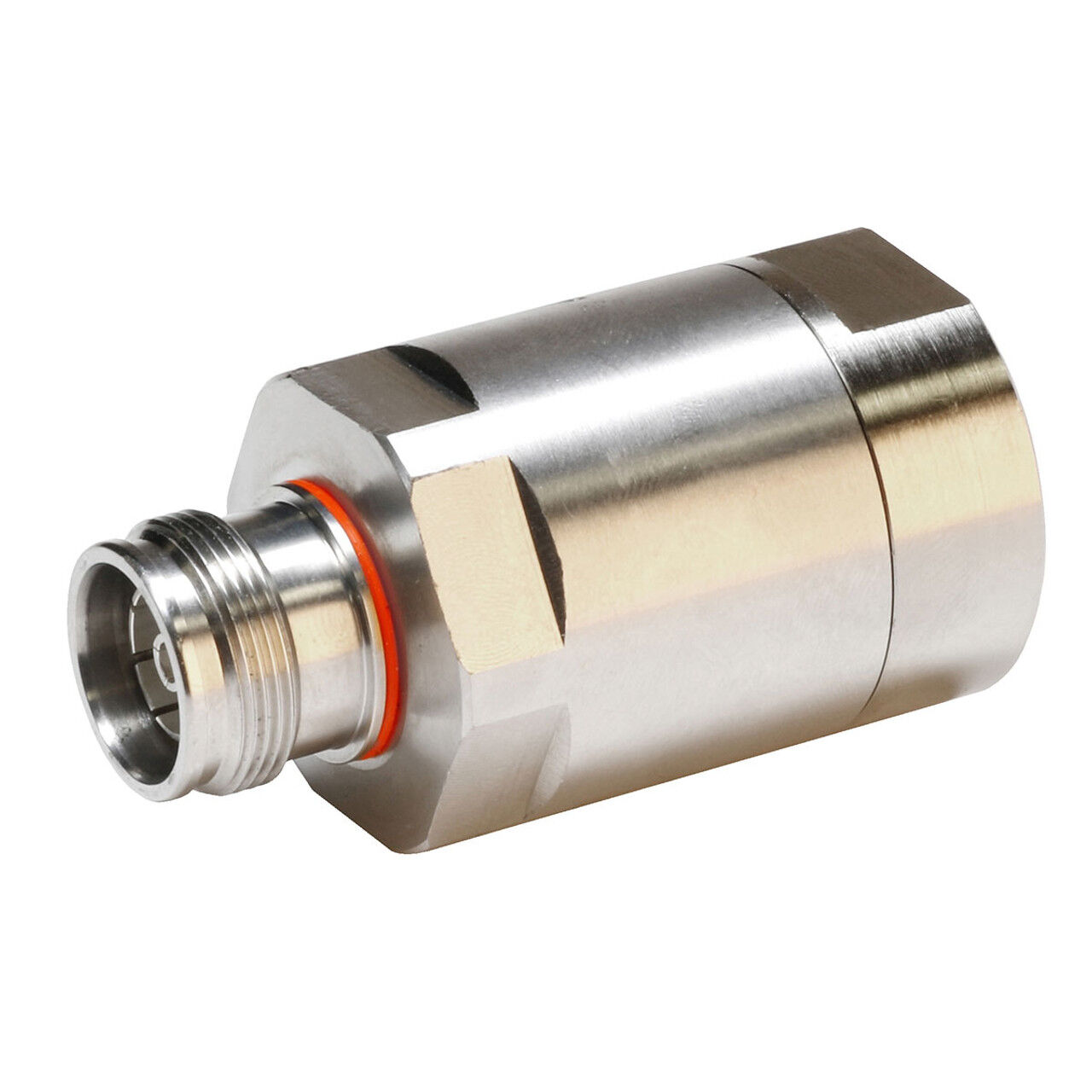

CommScope ASHF-D D-Class 4.3-10 Female for 7/8 in AVA5-50 and AVA5-50FX Cable

The CommScope ASHF-D D-Class 4.3-10 Female connector is designed for optimal performance with 7/8 inch AVA5-50 and AVA5-50FX cables, ensuring reliable signal integrity and durability in various communication applications.

Features

• Precision Engineering: Ensures minimal signal loss and high performance.
• 4.3-10 Female Interface: Offers robust performance and wide compatibility.
• Cable Compatibility: Perfect fit for 7/8 inch AVA5-50 and AVA5-50FX cables.
• Durable Construction: Withstands harsh environmental conditions.
• Easy Installation: Simplifies setup and maintenance.
• Low PIM: Minimizes passive intermodulation for clear signal.
• Weatherproof: Suitable for outdoor installations.
• RoHS Compliant: Environmentally friendly and safe.

Specifications

• Product Type: Wireless and radiating connector
• Product Series; AVA5-50 | AVA5-50FX | AVA5RK-50
• Ordering Note: CommScope® standard product (Global)
• Body Style: Straight
• Cable Family: AVA5-50 | AVA5-50FX
• Inner Contact Attachment Method: Captivated
• Inner Contact Plating: Silver
• Interface: 4.3-10 Female
• Mounting Angle: Straight
• Outer Contact Plating: Trimetal
• Pressurizable: No
• 3rd Order IMD at Frequency; -166 -dBc @ 1800 MHz
• 3rd Order IMD Dynamic Test Method: Two +43 dBm carriers
• 3rd Order IMD Test Method: Two +43 dBm carriers
• Insertion Loss Coefficient, typical: 0.05
• Average Power at Frequency; 3.0 kW @ 900 MHz
• Cable Impedance: 50 ohm
• Connector Impedance:50 ohm
• dc Test Voltage 4000 V
• Inner Contact Resistance, maximum: 0.4 mOhm
• Insulation Resistance, minimum: 5000 mOhm
• Operating Frequency Band: 0 – 5000 MHz
• Outer Contact Resistance, maximum: 1.5 mOhm
• Peak Power, maximum: 40 kW
• RF Operating Voltage, maximum (vrms): 1415 V
• Shielding Effectiveness: -130 dB
• Frequency Band: VSWR
