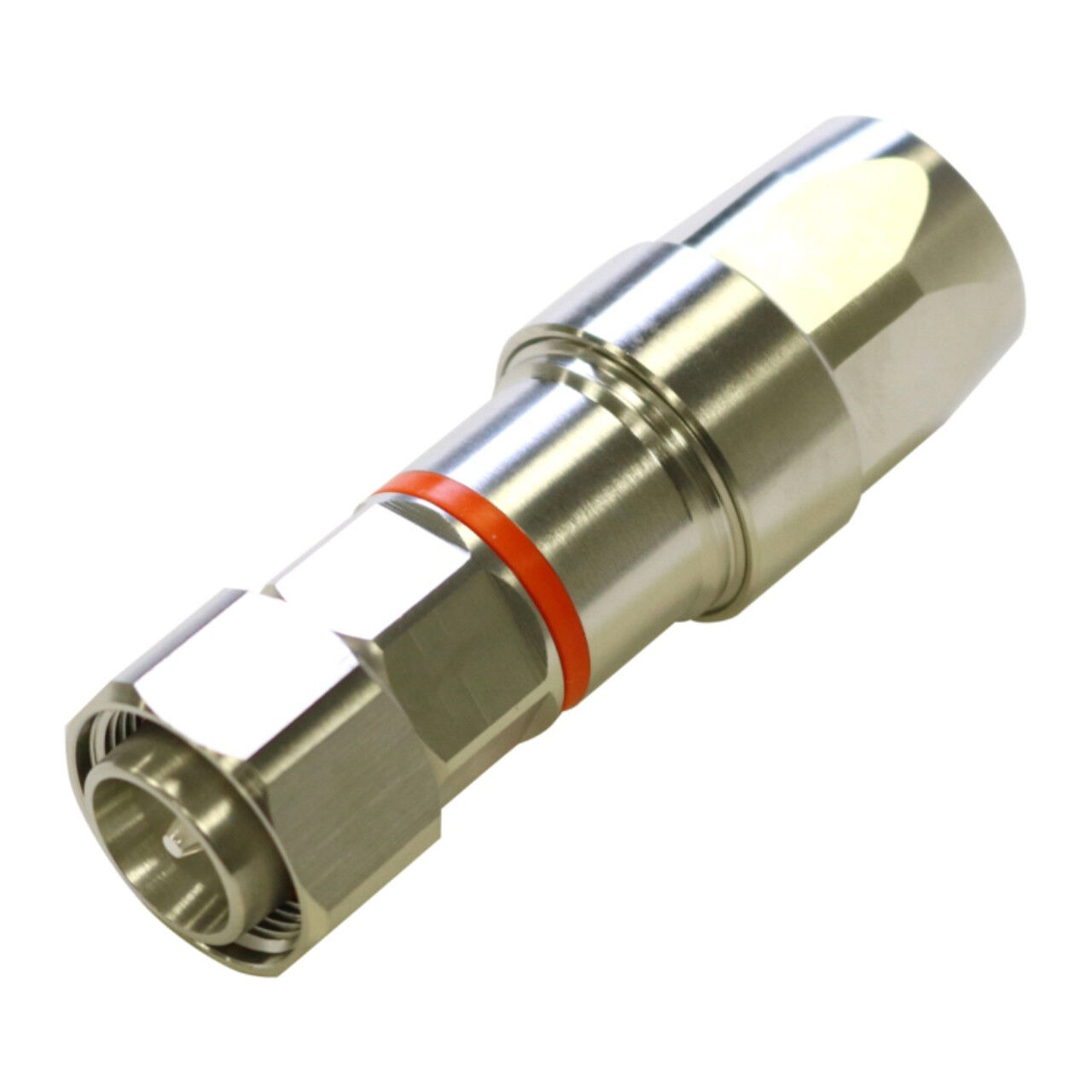

The CommScope L4HM-D is a 4.3-10 Male connector for 1/2 inch corrugated coaxial cables, including CommScope AL4RPV-50, LDF4-50A, HL4RPV-50 cable types.

CommScope’s 4.3-10 RF connectors are designed for quick and easy field installation, with minimal preparation tools required. L4HM-D is a captive contact connector for high performance solder-free installation.

This model connector is IP68 when mated with a compatible 4.3-10 Female connector.

4.3-10 RF connectors are designed to meet the extreme demands of next generation radiofrequency systems. With the introduction of very high order modulation schemes like 256QAM, and very low PIM targets, mobile network operators have enforced a transition from older-style N connectors to modern 4.3-10 RF connectors.



General Specifications

Body Style Straight
Cable Family LDF4-50A
Inner Contact Attachment Method Captivated
Inner Contact Plating Silver
Interface 4.3-10 Male
Mounting Angle Straight
Outer Contact Attachment Method Clamp
Outer Contact Plating Trimetal

(ACC-CS-00014)

SKU ACC-CS-00014
Brand COMMSCOPE
