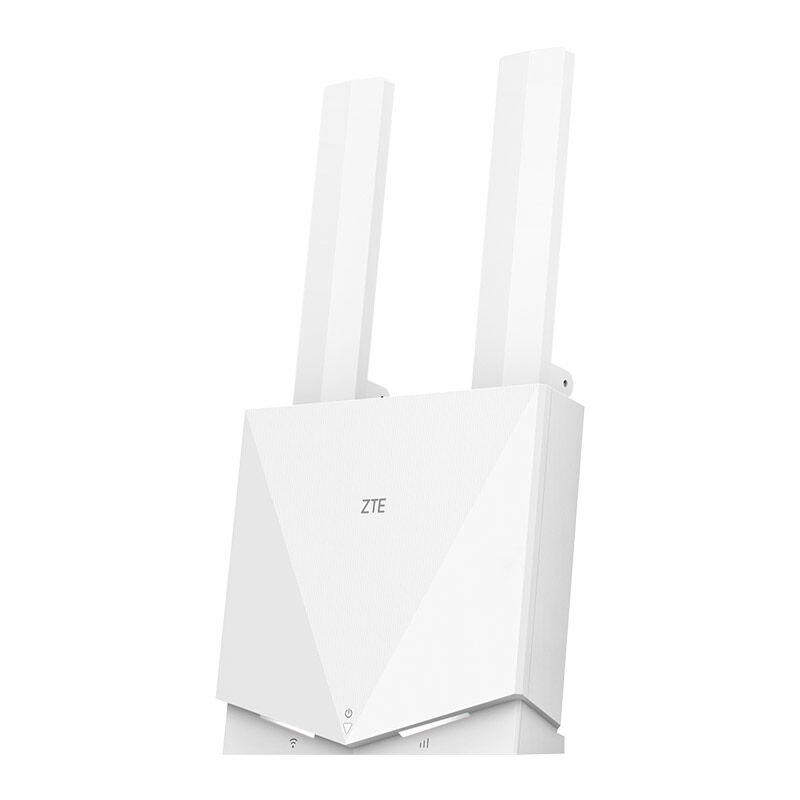

The RTR-ZS is a compact 4G wireless modem router, ideal for small offices or home users. It offers reliable 4G LTE connectivity with 2600mAh battery backup, ensuring uninterrupted service during power outages. With WiFi 6 support, up to 32 concurrent users, and a portable form factor, it’s a great portable choice for mobile internet requirements at exhibitions or remote working.

•  4G/LTE CAT4 with support for nano sized SIM card
•  4G max. data throughput 150/50Mbps download/upload*
•  FDD LTE: B1/2/3/5/7/8/20/28, TDD LTE: B38/40/41 band support
•  WiFi 6, 802.11 b/g/n/ax standard, 2.4GHz MIMO 2x2 antenna
•  2.4GHz 574Mbps* WiFi max. data throughput
•  WEP/WPA/WPA2/WPA3-PSK WiFi security protocols
•  1 x RJ45 100M Ethernet LAN/WAN port
• Supports up to 32 simultaneous wireless users
•  Large twin external antennas for WiFi and 4G
•  2600mAh backup battery; 12VDC/1A input power
•  Manage router configuration via Web UI or Smartlife app

Specifications

Device Hardware

• Network Interface : 1 x RJ45 (100M) WAN/LAN Port,1 x Nano SIM Slot, 1 x RJ11
• Device Indicators : Power/WiFi/Network LED Indicators, Power/WPS/Reset Buttons
• Input Power : 12VDC 1.0A
• Backup Battery : 2600mAh (Li-ion)
• Dimensions : 136 x 125 x 37mm (excl. antennas)
• Weight : 270g (incl. battery)
• Operating Environment : 0-40°C Temperature, 5-95% Humidity
• Certifications : CE, WEEE, RoHS, REACH, WiFi

WiFi Performance

• WiFi Standard : IEEE 802.11b/g/n/ax (WiFi 6)
• WiFi Antenna : 2x2 MIMO 2.4GHz 20dBm@2.4GHz
• WiFi Data Rate : 2.4GHz 574Mbps*
• WiFi Security : WEP/WPA/WPA2/WPA3-PSK
• WiFi Concurrent Users : 32

Cellular Performance

• Cellular Category : 4G/LTE CAT4
• Max. Data Throughput (Down/Up) : FDD-LTE 150/50Mbps, TDD-LTE 110+/11+Mbps*
• Support Frequencies : FDD-LTE B1/2/3/5/7/8/20/28, TDD-LTE B38/40/41
• Cellular Antenna : Built-in or External LTE Antennas, 23±2 dBm Max. Tx Power
