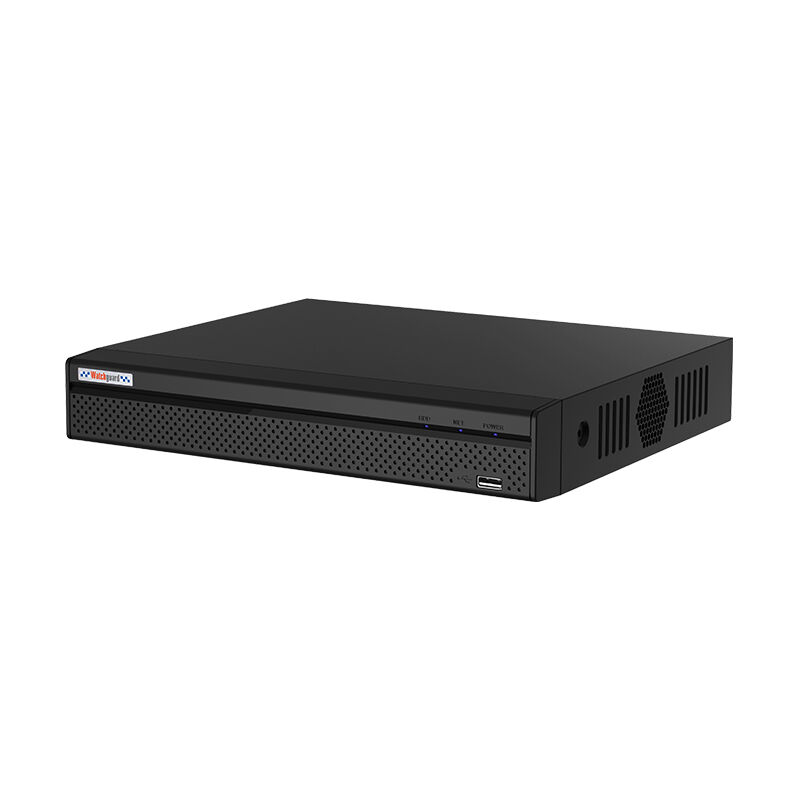

Compact Series 16 Channel 8.0MP HDCVI AI Digital Video Recorder CVR16COM3

The Watchguard Compact Series delivers Ultra HD surveillance with AI over your existing coaxial cable. DVRs in the range feature great cross compatibility, enabling you to upgrade cameras you’re not happy with, keep existing cameras you do like, and add AI alerts to improve your security experience. This makes them perfect for partial CCTV upgrades or upgrades on a budget. Monitor your home or business and keep all that you love safe with Watchguard Compact Series HDCVI DVRs.

Features:

• Record up to 8.0MP (3840 x 2160) at 7fps (HDCVI)
• Supports analogue, HDTVI and AHD camera inputs
• Supports additional IP channels* via the network up to
• 8.0MP / 4K with up to 128Mbps incoming bandwidth
• 1 x HDD bays for up to 16TB of total footage storage
• AI detection to identify people & vehicles with smart
• motion detection (SMD+) & perimeter protection
• Identify people for security & business intelligence with

*Addition of IP Cameras beyond 16 channels disables the DVR's AI / IVS functions.
**IP cameras with built-in AI cannot use AI functions on HDCVI DVRs.
*DVRs include 4 year warranty; HDDs include 3 year warranty

SPECIFICATIONS

General

• Main Processor : Embedded Processor
• Operating System : Embedded Linux
• Video Input : 16 channel BNC
• Audio In/Out : 16 input / 1 output (RCA)
• Two-way Talk : Reuse channel 1 audio input/output

Cross Compatibility

• Supported Video Inputs : HDCVI / HDTVI / AHD / Analogue / IP
• Coax Input Support : 16 channels up to 8.0MP/7fps (HDCVI), 960H/25fps (analogue)
• IP Input Support : 16 channels
• IP Input Max. Resolution : 8.0MP
• IP Input Max. Bandwidth : 128Mbps

Display

• Video Output : 1 HDMI / 1 VGA
• Display Resolution : HDMI: 3840 x 2160 to 1280 x 720 ; VGA: 1920 x 1080 to 1280 x 720
• Display Split : 1/4/8/9/16 (36 with IP extension mode enabled)
• OSD : Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Recording

• Maximum Resolution : Configurable from 8.0MP (3840 x 2160) to CIF (352 x 288)
• Frame Rate (Main) : 8.0MP (1~7fps), 6.0MP (1fps~10fps), 4.0MP (1~15fps), 1080p and lower (1~25fps)
• Frame Rate (Sub) : 960H (1 ~15fps)
• Frame Rate (Third) : N/A
• Video Compression : AI Coding / H.265+ / H.265 / H.264+ / H.264
• Bit Rate : 32Kbps ~ 6144Kbps Per Channel
• Record Modes : Manual / Schedule (Regular, Continuous), Motion Detection, Video Loss, Alarm, Stop
• Record Interval : 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

AI Functions

• AI Functions : Face Recognition / Perimeter Protection / Smart Motion Detection (SMD+)

Face Recognition

• Performance (Face Recognition) : Max. 12 pictures per second, 2 channel video stream only supports analog cameras (Performance varies depending on camera and resolution)
• Stranger Mode : Detect strangers face (not in database)
• AI Search (Face Recognition) : Up to 8 target face images at the same time
• Database Management : Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, nationality, address, ID information can be added to each face picture.
• Database Application : Each database can be applied to video channels independently
• Trigger Events (Face Recognition) : Recording, PTZ, tour, alarm, push video notification, email notification, FTP upload, snapshot, internal buzzer, screen tip overlay, and voice prompt

Perimeter Protection

• Performance (Perimeter Protection) : 2 channels, 10 IVS rules for each channel (advanced) ; 8 channels, 10 IVS for each channel (general)
• AI Search (Perimeter Protection) : Search by target classification (Human, Vehicle)
• Object Classification (Perimeter Protection) : Human / vehicle secondary recognition for tripwire and intrusion

Smart Motion Detection (SMD+)

• Performance (SMD+) : 16 Channels
• AI Search (SMD+) : Search by target classification (Human, Vehicle)

Features

• Alarm Input / Output : 16 channel input / 3 relay output
• Trigger Events : Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
• Video Detection : Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
• Playback Sync : 1/4/9/16
• Search Modes : Time /Date, Alarm, Motion detection and Exact search (to the second), smart search
• Backup Modes : USB Device / Network

Network

• Ethernet : 1x RJ-45 port (1000MB)
• Network Functions : HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P
• Max. User Access : 128 users
• Remote View : iOS (iPhone, iPad); Android devices

Storage

• Internal HDD : 1 x SATA port, up to 16TB, max. 16TB HDD capacity
• USB Interface : 2 x USB ports (1 x USB 2.0 , 1 x USB 3.0)
• Auxiliary Inputs : 1 x RS485 port

Environment

• Power Supply : 12VDC / 3A
• Power Consumption : <15W (without HDD)
• Operating Environment : -10°C ~ 55°C / 10% ~ 90% RH
• Rackmountable : No
• Rackmount Units : N/A
• Dimensions : 325mm x 257mm x 55mm (1U)
