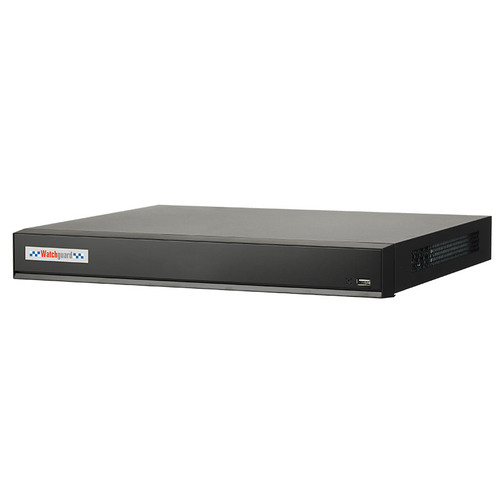

Compact AI Series 16CH PoE NVR with 2 x HDD Bays NVR16COM-I

The Watchguard™ Compact AI Series brings the best of AI surveillance features in an affordable package. The NVR16COM-I allows you to bring AI face recognition or AI person/vehicle detection to your CCTV installations, guaranteeing that important events are detected and can be acted upon. This NVR is perfect for new systems or replacement of existing NVRs to upgrade to AI capable surveillance.

Features:

• Records up to 16.0 megapixel (4920 x 3264)
• Up to 256Mbps incoming bandwidth (recording/outgoing)
• Decoding 12CH@1080P/25fps (AI enabled), 16CH@1080P/25fps (AI disabled)
• AI face recognition and database comparison by NVR up to 1 channel, or;
• AI human/vehicle detection via tripwire/intrusion rule by NVR up to 2 channels, or;
• AI human/vehicle detection via motion detection by NVR up to 4 channels
• Support for ANPR up to 4 channels (automatic number plate recognition)
• 2 x SATA bay with support for up to 16TB capacity HDDs per bay
• Built-in 16 port power over Ethernet switch
• HDMI and VGA simultaneous video output
• Backup footage via external USB device or local network

*NVRs include 4 year warranty; HDDs include 3 year warranty

Specifications

General

• Video Input : 16 Channels
• PoE : Yes
• HDD Capacity : 2
• Processor & Operation : Industrial-grade processor, Embedded Linux OS, Web Interface / Local GUI
• Interoperability : ONVIF 21.12(Profile T; Profile S; Profile G); CGI; SDK
• App Integration : iOS / Android

Recording

• Recording Resolution : Configurable from 16.0MP (4920 x 3264) to CIF (352 x 288)
• Network Bandwidth (AI Disabled) : 256Mbps (incoming/recording/outgoing)
• Network Bandwidth (AI Enabled) : 180Mbps (incoming/recording/outgoing)
• Video & Audio Compression : Video: Smart H.265+ / H.265 / H.264 / H.264+ / MJPEG, Audio: G.711a / G.711u / PCM / G726
• Playback Channels : 16 Channels
• Playback Modes : General Recording, Motion Detection, Intelligent Events, Alarm Triggers
• Decoding Capacity (AI Disabled) : 16CH@1080p/25fps
• Decoding Capacity (AI Enabled) : 12CH@1080p/25fps
• Backup Method : USB device / network

Interface

• HDD : 2 x SATA bays, up to 16TB
• Audio : 1 channel input (RCA), 1 channel output (RCA)
• Alarm Interface : 4 channels input, 2 channels output
• Alarm Types : Record, snapshot, IPC external alarm output, audio, buzzer, log, preset, email
• Alarm Actions : Begin record, take snapshot, camera external alarm output, audio, buzzer, NVR log, camera preset, email
• Display Output : 1 x HDMI (up to 3840 x 2160), 1 x VGA (up to 1920 x 1080)
• Display Split : 1st screen: 1/4/8/9/16, 2nd screen: 1/4/8/9/16
• Display Mode : HDMI1 + VGA1 (Mirror)
• Network Input : 1 x 1000Mbps Ethernet uplink, 16 x PoE 100Mbps (802.3af/at)
• Network Functions : HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search, Easy4ip
• USB & Other Inputs : 1 x Front USB 2.0, 1 x Rear USB 2.0

Artificial Intelligence

• NVR Operated AI : Face Detection, Face Recognition, AI Tripwire/Intrusion and AI Human/Vehicle Detection
• Supported Camera AI : Face Detection, Face Recognition, AI Tripwire/Intrusion and AI Human/Vehicle Detection, People Counting, Crowd Distribution, Heatmap, ANPR, Audio Detection, Thermal Alarm, Fisheye Dewarp (Via PC web interface only)
• Face Detection Functions : Gender, Age Group, Glasses, Expressions, Face Mask, Beard
• Face Detection (By NVR) : 1 channel (up to 12 face images per second, per channel)
• Face Detection (By Camera) : 8 channels
• Face Recognition Capacity : NVR Supports up to 10 face databases and 200,000 face images
• Face Recognition (By NVR) : 1 channel (Face detection via NVR video stream analysis; Face recognition performed by NVR) 4 channels (Face detection performed via Face Capture cameras via image stream; Face recognition performed via NVR)
• Face Recognition (By Camera) : 8 channels
• Human/Vehicle Detection Functions : AI Tripwire & Intrusion (IVS), AI Motion Detection (SMD)
• Human/Vehicle Detection (By NVR) : IVS: 2 channels (10 rules per channel) SMD: 4 channels
• Human/Vehicle Detection (By Camera) : IVS: 8 channels, SMD: 8 channels
• ANPR Functions : Up to 20,000 plate numbers, blocklist & allowlist
• ANPR (By Camera) : 4 channels
• Video Metadata Functions : -
• Video Metadata (By NVR) : -
• Video Metadata (By Camera) : -

Environment

• Power Supply : 100~240VAC / 47~63 Hz
• Power Consumption : NVR: <10W (without HDD) / PoE: Max 25.5W for single port, 130W total
• Operating Environment : -10°C ~ +55°C / 10 ~ 93%RH
• Rackmountable : No
• Rackmount Units : -
• Dimensions : 375mm x 329.3mm x 53mm
