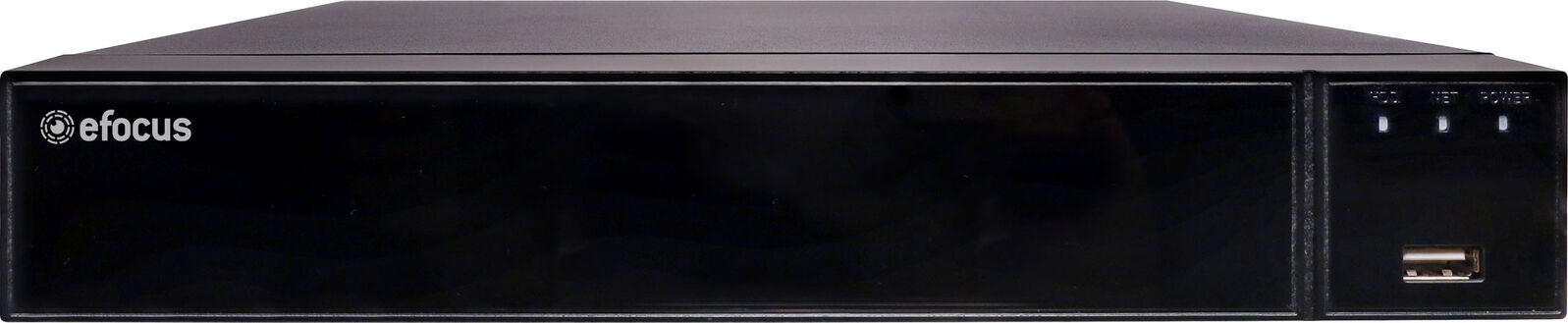

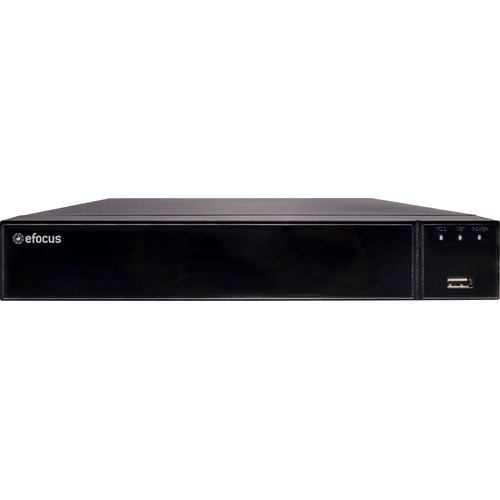

This multi channel network video recorder offers 12MP resolution recording at 25fps for up to 10 cameras (or 16ch of 4K @ 25fps). For ease of installation, 8 dedicated PoE ports are in-built. It utilises H.264/H.265+ compression to maximise your hard disk space and has wide camera compatibility with ONVIF S/T support. Recording can be manually set, scheduled or triggered by motion detection. Supports one internal hard disk, maximum storage 10TB. Hard drives sold separately.

Features

• H.264+/265+ compression
• 4K HDMI monitor output
• Recording 10 channels up to 12MP @ 25fps per ch
• Supports iOS and Android remote viewing
• 8 x 30W PoE network interfaces - total power 72W max.
• One internal SATA interface, max 10TB
• USB backup
• Dedicated network interface
• Audio input & output
• ONVIF S/T profiles
• Support Plug and Play
• Support network cable extended mode - Max. 200M

Specifications

System

• Main Processor: Dual Cortex A53
• Operating System: Embedded LINUX

Video

• Input: 16CH (12MP/8MP/6MP/5MP/4MP/3MP/1080p/1280x1024/960p/720p/D1/CIF)
• Output: 1 VGA, 1 HDMI

Audio

• Input: 1 Port RCA, support 16CH IPC audio input
• Output: 1 Port RCA (Linear, 1k?), HD output
• Audio Bit Rate: 64kbps
• Audio Compression standard: G711U, G711A, AAC, MP2L2
• Intercom: Supports 2-way

Alarm

• Motion Detection: 16 Channel, MD Zones: 396 (22 × 18)
• Trigger Events: Recording, Email, FTP, Snapshot and Screen Tips, Pop-up Window, Buzzer, Notify Surveillance Center

Display

• HD Output: 4K (3840x2160) / 2K(2560x1440) / 1920x1080 / 1280x1024 / 1280x720 / 1024x768
• VGA: Resolution: 1920x1080, 1280x1024, 1280x720, 1024x768
• Display Split: 16CH/13CH/10CH/9CH/8CH/6CH/4CH/2CH/1CH
• Digital Zoom: YES
• OSD: Camera Title, Time, Recording, Motion Detection, Event Alarm

Recording

• Video Compression: H265/H264/H265+/H264+
• Resolution: 12MP(4000 x 3000),8MP(3840 × 2160),6MP(3072 x 2048),5MP(2592 x 1944),4MP(2688 × 1520 / 2560 × 1440), 3MP(2048 × 1536),1080P(1920 × 1080),1280 x 1024,960P(1280 x 960),720P(1280 × 720),960H(960 x 480),D1(720 × 576 / 720 × 480)
• Record Rate: 12MP@10CHx25fps, 4K@16CHx25fps, 5MP@16CH ×25fps, 4MP@16CHx25fps, 3MP@16CH ×25fps, 1080P@16CH ×25fps, 960P@16CH×25fps, 720P@16CH ×25fps, D1@16CH×25fps
• Record Mode: Manual/Timer/Motion Detection/Alarm/Smart Event

Playback & Backup

• Local Sync Playback: 1CH 12MP@30fps, 1CH 8MP@30fps, 2CH 5MP@30fps, 4CH 4MP@30fps, 7CH 1080P@30fps, 16CH 720P@30fps, 16CH D1@30fps
• Decode Capability: 1080P(1920x1080)@210fps
• Remote Sync Playback: YES
• Search Mode: ALL, Timing Video, Motion Detection, Alarm, Tag, Search, Smart Event, Picture, Log
• Playback Functions: Play, pause, fast forward, rewind, previous frame, next frame, electronic zoom, clip, audio
• Backup Mode: USB Device/Network

Network

• Interface: 1xRJ45 10M/100/1000M Adaptive Ethernet Interface
• Incoming Bandwidth: 128MBps
• Outgoing Bandwdith: 80MBps
• Network Functions: IPv4/IPv6/TCP/IP, HTTP,HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p,PPPOE
• Onvif: onvif S,onvif T
• Web Browser: Edge,IE8-11, Google Chrome , Firefox ,Safari
• CMS Software: Support Windows 7/ Windows 8/Windows 10/MAC OS
• Cloud Support (P2P): Yes
• Smart Phone: iPhone, Android

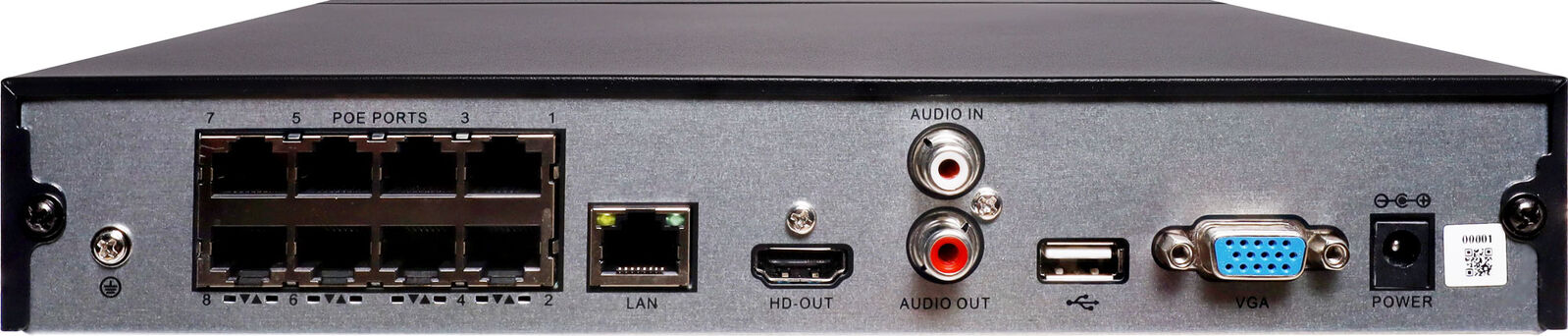

• POE: 8 x Independent 100Mbps POE Network Interfaces(Output Power AT mode 30W per Interface, AF mode 15W per Interface), 45/78 line order, Total Power
• Output 72W, Support Plug and Play, Support network cable extended mode Max. 200M

Storage

• Interface Type: 1 SATA Hard Disk Interface (2.5"/3.5" SATA)
• Capacity: Up to 10TB capacity

General

• Language: Simplified Chinese, Traditional Chinese, English, Polski, Czech, Arabic, German, French, Portuguese, Spanish, Italian, Hungarian, Korean, Dutch, Greek, Janpanese, Ukrainian, Kazakh
• USB Interface: 2 USB 2.0 Interfaces
• Power Supply: DC48V/1.87A ? 10W (Without Hard Disk)
• Working Environment: -10~50?/10~90%
• Dimensions: 260W x 230D x 43H(mm)
• Weight: 780g (without HDD)

*Specifications are subject to change without notice.
