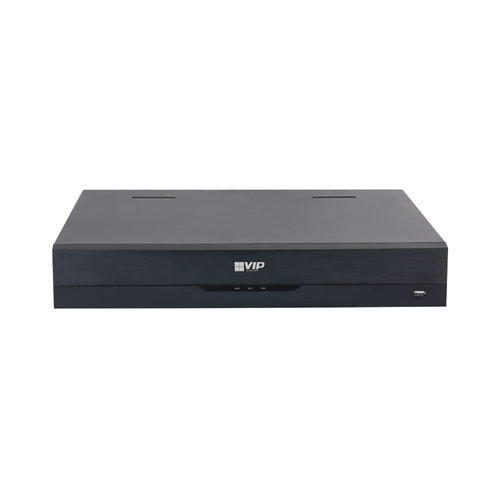

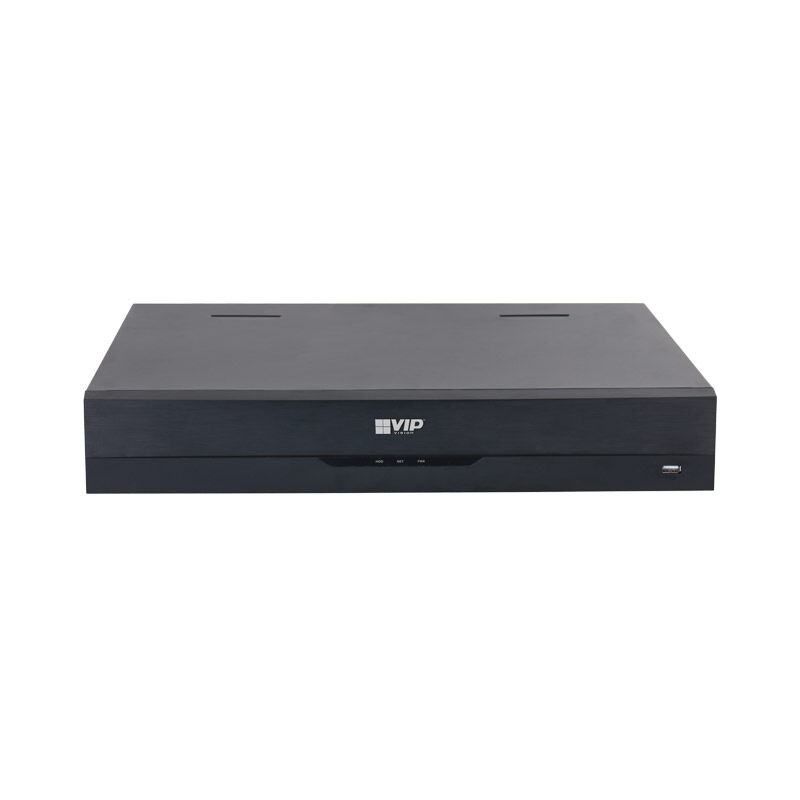

Professional AI Series 32CH PoE NVR with 4 x HDD Bays NVR32PRO16P-I3

The NVR32PRO16P-I3 transforms the way you secure your home or small business. Use superb accuracy AI detection to take the guesswork out searching footage and get important AI video notifications as they happen. Experience peace of mind with capacity for months of footage storage and integrate a huge range of cameras to protect what's most important to you.

Product Features:

• Record up to 32.0MP with H.265 video compression
• Up to 384Mbps bandwidth (200Mbps AI enabled)
• Suite of AI functions for improved alerts & playback
• Supports AI face detection and recognition via NVR
• Supports AI human/vehicle detection via NVR
• Supports ANPR by camera up to 4 channels
• 4 x SATA bay with HDD support up to 16TB/bay
• Built-in 16 port Power over Ethernet switch
• HDMI (4K) and VGA simultaneous video output
• Backup via external USB device or local network

*NVRs include 4 year warranty; HDDs include 3 year warranty

Specifications

General

• Video Input : 32 Channels
• PoE : Yes
• HDD Capacity : 4
• Processor & Operation : Industrial-grade processor, Embedded Linux OS, Web Interface / Local GUI
• Interoperability : ONVIF 21.12(Profile T; Profile S; Profile G); CGI; SDK. Supports Panasonic, Sony, Samsung, Axis, Pelco, Arecont, Canon. Chrome, IE9 and later, Firefox support.
• App Integration : iOS / Android

Recording

• Recording Resolution : Configurable from 32.0MP (6528 x 4896) to QCIF (176 x 144)
• Network Bandwidth (AI Disabled) : 384Mbps (incoming/recording/outgoing)
• Network Bandwidth (AI Enabled) : 200Mbps (incoming/recording/outgoing)
• Video & Audio Compression : Video: Smart H.265+ / H.265 / H.264 / H.264+ / MJPEG, Audio: G.711a / G.711u / PCM / G726
• Playback Channels : Up to 16 channels
• Playback Modes : General Recording, Motion Detection, Intelligent Events, Alarm Triggers, POS
• Decoding Capacity (AI Disabled) : 8CH@8.0MP/25fps, 32CH@1080P/25fps
• Decoding Capacity (AI Enabled) : 24CH@1080P/25fps
• Backup Method : USB device / Network / eSATA

Interface

• HDD : 4 x SATA bays, up to 16TB per bay
• Audio : 1 channel input (RCA), 2 channel output (RCA)
• Alarm Interface : 16 channels input, 6 channels output
• Alarm Types : General (motion, video loss, scene change, etc.), Anomalies (camera disconnect, disk full, IP conflict , etc.), Intelligent (AI alerts, face, human/vehicle, etc.)
• Alarm Actions : Begin record, take snapshot, camera external alarm output, access controller, audio, buzzer, NVR log, camera preset, email
• Display Output : 2 x HDMI (up to 3840 x 2160), 2 x VGA (up to 1920 x 1080)
• Display Split : 1st Screen: 1/4/8/9/16/25/36, 2nd Screen: 1/4/8/9/16
• Display Mode : Multiple sources: HDMI1+VGA1 (Mirror), HDMI2+VGA2 (Mirror)
• Network Input : 1 x 1000Mbps Ethernet uplink, 16 x PoE 100Mbps (802.3af/at), ports 1-8 supports ePoE
• Network Functions : HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search, Easy4ip
• USB & Other Inputs : 1 x Front USB 2.0, 2 x Rear USB 3.0 / 1 x RS-485, 1 x RS-232, 1 x eSATA

Artificial Intelligence

• NVR Operated AI : Face Detection, Face Recognition, AI Human/Vehicle Detection
• Supported Camera AI : Face Detection, Face Recognition, AI Human/Vehicle Detection, Video Metadata, People Counting, Crowd Distribution, Heatmap, ANPR, Audio Detection, Thermal Alarm, Fisheye Dewarp
• Face Detection Functions : Gender, Age Group, Glasses, Expressions, Face Mask, Beard
• Face Detection (By NVR) : 2 channels (up to 12 face images per second, per channel)
• Face Detection (By Camera) : 16 channels
• Face Recognition Capacity : NVR Supports up to 20 face databases and 20,000 face images
• Face Recognition (By NVR) : 2 channel (Face detection via NVR video stream analysis; Face recognition performed by NVR) 16 channels (Face detection performed via Face Capture cameras via image stream; Face recognition performed via NVR)
• Face Recognition (By Camera) : 16 channels
• Human/Vehicle Detection Functions : AI Tripwire & Intrusion (IVS), AI Motion Detection (SMD)
• Human/Vehicle Detection (By NVR) : IVS: 4 channels (10 rules per channel), SMD: 8 channels
• Human/Vehicle Detection (By Camera) : IVS: 16 channels, SMD: 16 channels
• ANPR Functions : Up to 20,000 plate numbers, blocklist & allowlist
• ANPR (By Camera) : 8 channels
• Video Metadata Functions : People (clothing colour, hat, bag, umbrella, etc.), Vehicle (vehicle colour, vehicle model, number plate, etc.)
• Video Metadata (By NVR) : -
• Video Metadata (By Camera) : 8 channels

Environment

• Power Supply : 100–240 VAC ~ 50-60 Hz
• Power Consumption : ≤ 13W (without HDD) / PoE: Max 25.5W for single port, 130W total
• Operating Environment : -10°C ~ +55°C / 10 ~ 93%RH
• Rackmountable : Yes
• Rackmount Units : 1.5U
• Dimensions : 440mm × 416mm × 76mm
