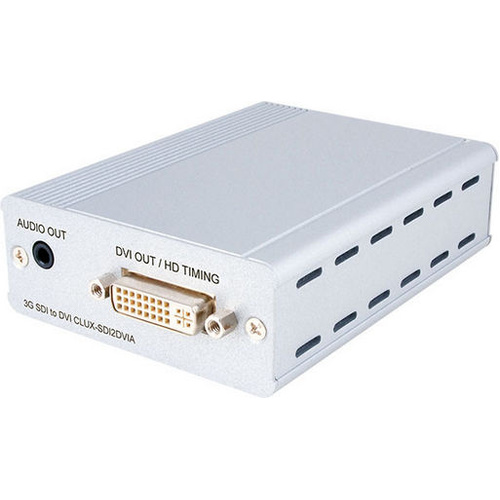

Cypress 3G-SDI to DVI Converter with Audio 1080P SD HD SDI Video Adapter

The CLUX-SDI2DVIA allows SD, HD and 3G-SDI signals to be shown on DVI display. This means that it is now easier for professionals to distribute and extend their SDI signal while giving the ability to display work on DVI display. Additionally, the built-in stereo Audio Out will allow the user to enjoy perfectly synchronised video and audio. Supports DVI output at up to 1080p and 3.5mm audio output.

• SDI signal conversion to DVI signal
• Auto-detects SD-SDI, HD-SDI and 3G-SDI input signals
• Operation at bitrates of 270Mbps, 1.485Gbps, 1.485/1.001Gbps, 2.970Gbps and 2.970/1.001Gbps
• Supports SDI standards of:
• - SMPTE 259M-C@270Mbps
• - SMPTE 292M@1.485Gbps and 1.485/1.001Gbps
• - SMPTE 424M and SMPTE 425M (Level A and Level B)@2.970Gbps and 2.970/1.001Gbps
• Converts SDI signals to the following DVI signals:
• - SD-SDI/SMPTE 259M-C to 480i and 576i
• - HD-SDI/SMPTE 292M to 720p and 1080i
• - 3G-SDI/SMPTE 424M and SMPTE 425M (Level A and Level B) to 1080p and 1080PsF
• Supports DVI output resolutions of:
• - 480i and 576i
• - 720p@50/59.94/60Hz and 1080i@50/59.94/60Hz
• - 1080p@23.98/24/25/29.97/30/50/59.94/60Hz
• - 1080PsF@23.98/24/25/29.97/30Hz
• Supports SDI input distance up to 300m (SD-SDI), 200m (HD-SDI) or 100m (3G-SDI)
