ANALOGUE VIDEO / HDMI TO USB FULL HD CAPTURE - CYPRESS

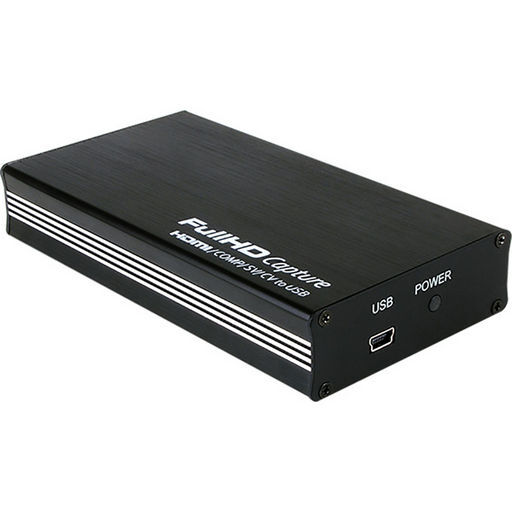

This High Definition capture box supports HDMI 1080p video/component/SV/CVinput and record to H.264 video format. Its low power consumption and superior video processing capabilities make it ideal for integration into high-end portable and desk top PC products. Supports MPEG-4 Advanced Audio Coding (AAC) and audio sampling frequency of 48 KHz. Powered via USB bus power with low power consumption.

Features

• Supports Full HD capture of HDMI/COMP/SV/CV signal to USB
• Built-in H.264/MPEG4-AVC High Definition encoder
• Video input Supports input video timings: 1920x1080, 1280x720, 576, 720x480
• Supports MPEG-4 Advanced Audio Coding (AAC)
• Supports audio sampling frequency of 48 KHz
• Powered via USB bus power with low power consumption

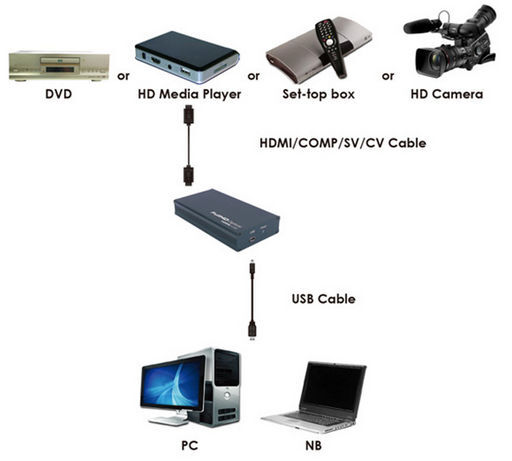

• Capture video from DVD, setup box, game consoles and more.
• Compatible with Windows XP / 2000 / Vista / 7.
• Requires mini USB to USB cable.

Specifications

• System Hardware Requirements:  2.4 GHz single core CPU with at least 1GB RAM for optimal performance
• USB Port Extension:  An available USB 2.0 port with USB to mini USB cable

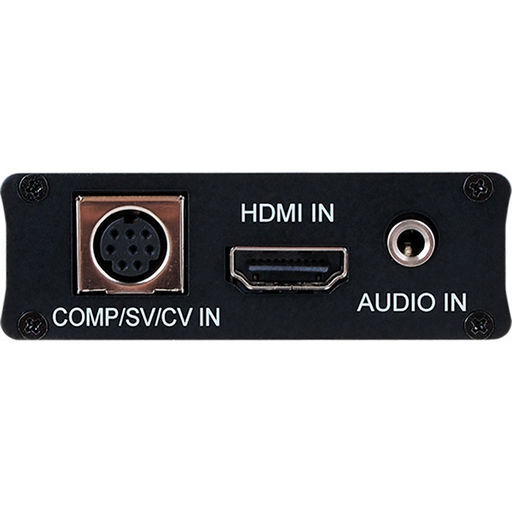

• Input: 1×HDMI, 1×Component Video/SV/CV

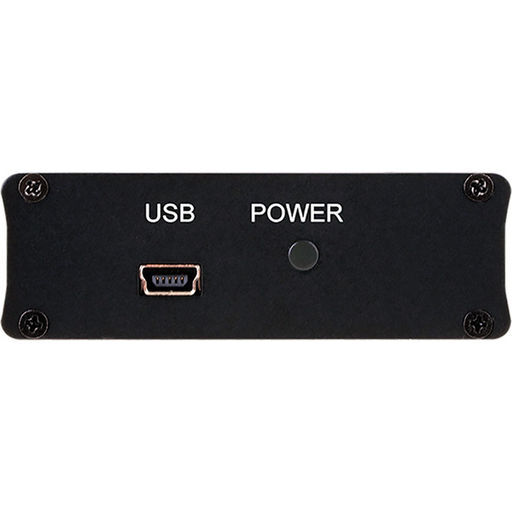

• Output: 1×Mini-USB
• Input Video Formats: Digital RGB/YUV, Analogue YUV, NTSC/PAL
• Output Video Formats: USB Data
• Supported TV Resolutions: 480i-1080p
