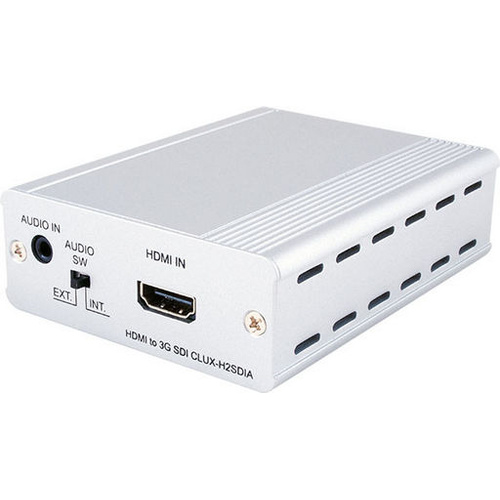

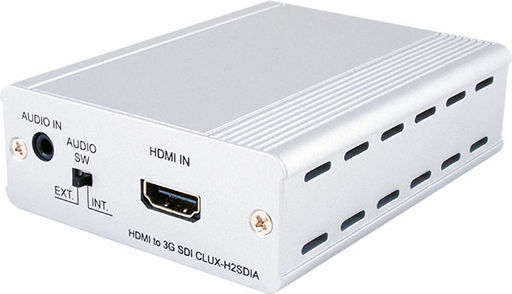

Cypress HDMI to 3G-SDI Converter with Audio 1080P SDI Video Adapter

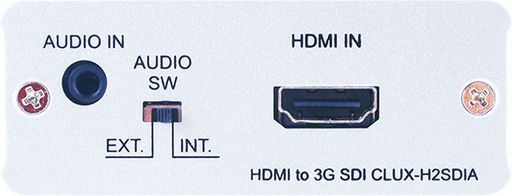

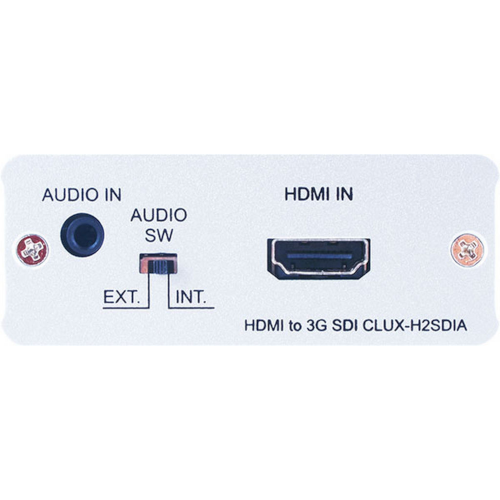

The CLUX-H2SDIA allows HDMI signals to be shown on SDI display while ensuring high bit rates of 2.970 Gbps to give you high resolution signal without any loss. For professionals this means that it is now easier to convert your high def HDMI signal with audio to SDI for long distance transmission and display your work on SDI display. In addition, the external audio input allows the user to insert the sound from a different audio source instead of the HDMI embedded audio, and send to the SDI output. This device supports HDMI input resolution up to 1080p and the signals are then convert in SDI signals.

• Shows HDMI source on SDI display.
• Supports SDI bitrates of 2.970Gbit/s & 2.970/1.001Gbit/s, 1.485Gbit/s & 1.485/1.001Gbit/s, and 270Mbit/s.
• Converts HDMI format to SDI:
• 480i/576i to SD-SDI (SMPTE 259M-C@270Mbit/s)
• 720p/1080i to HD-SDI (SMPTE 292M@1.485Gbit/s & 1.485/1.001Gbit/s)
• 1080p to 3G-SDI (SMPTE 424M/425M-A@2.970Gbit/s & 2.970/1.001Gbit/s)
• Supports HDMI input timings of 480i@59.94Hz, 576i, 720p@50/59.94/60Hz, 1080i@50/59.94/60Hz, 1080p@23.98/24/25/29.97/30/50/59.94/60Hz.

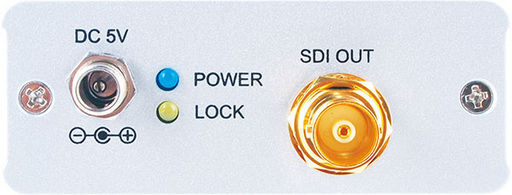

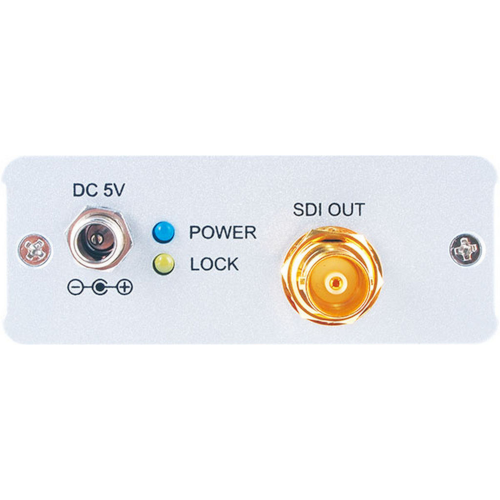

• Supports SDI output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI).

HDMI signal conversion to SDI signal
Supports HDMI input resolutions of:

• 480i@59.94Hz and 576i
• 720p@50/59.94/60Hz and 1080i@50/59.94/60Hz
• 1080p@23.98/24/25/29.97/30/50/59.94/60Hz

Operation at bitrates of 270Mbps, 1.485Gbps, 1.485/1.001Gbps, 2.970Gbps and 2.970/1.001Gbps
Supports SDI standards of:

• SMPTE 259M-C@270Mbps
• SMPTE 292M@1.485Gbps and 1.485/1.001Gbps
• SMPTE 424M and SMPTE 425M (Level A and Level B)@2.970Gbps and 2.970/1.001Gbps

Converts HDMI signals to the following SDI signals:

• 480i and 576i to SD-SDI/SMPTE 259M-C
• 720p and 1080i to HD-SDI/SMPTE 292M
• 1080p to 3G-SDI/SMPTE 424M and SMPTE 425M (Level A and Level B)

Supports SDI output distance up to 300m (SD-SDI), 200m (HD-SDI) or 100m (3G-SDI)
Note: This product does not process HDCP encrypted input signals. There will be no video output when the input signal contains content that is HDCP encrypted.
