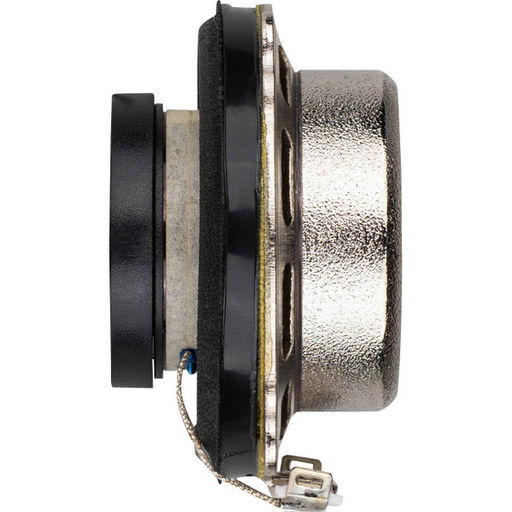

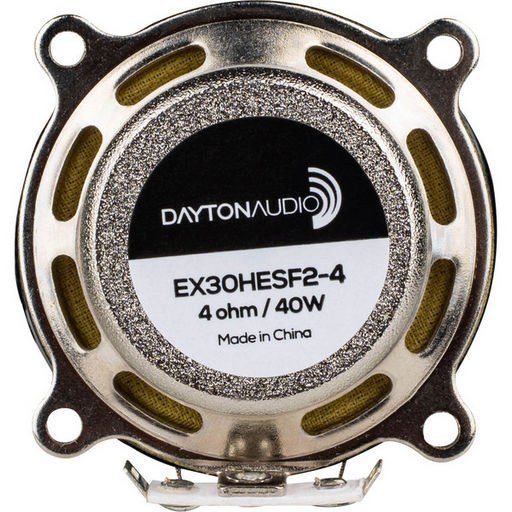

SOUND EXCITER IMS^TM 40W 30MM - STEERED FLUX

High Efficiency Steered Flux Interchangeable Hardware Mount Exciter 30mm 40W 4 Ohm

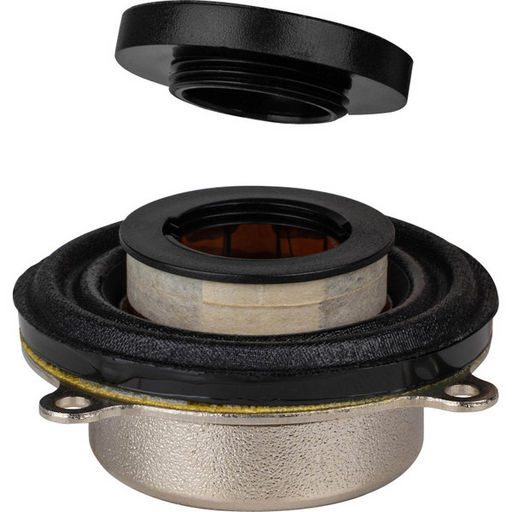

The EX30HESF2-4 30 mm steered high flux exciter is one of the most powerful in Dayton Audio's line of exciters capable of handling up to 40 watts. Equipped with IMS^TM Interchangeable mounting system, a pre-attached 3M VHB adhesive ring and 2-hole mounting system combines with four screw-down mounting tabs for maximum energy transfer.

Dayton Audio's DAEX30HESF-4 steered high flux exciter is one of our most powerful. For use with medium sized amplifiers, this steered high flux exciter incorporates a 4 ohm voice coil to extract maximum power. A wide frequency response is permitted due to this exciter's low inductance of only 0.3 mH. A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar-sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. Equiped with IMS^TM Interchangeable mounting system, easy to mount and unmount and allows you to try out different configurations, placements, and exciters to find the best combination for your project.


• Small size; 57mm diameter, about 34mm high.

• High output exciter design handles up to 40Wrms.

• Interchangeable mount allows you to A/B test different exciters.

• Easily swap non-functional units out in the field.

• Rare-earth neodymium motor and a proprietary voice coil.

• 4-ohm impedance for use with small, Class D amplifiers.

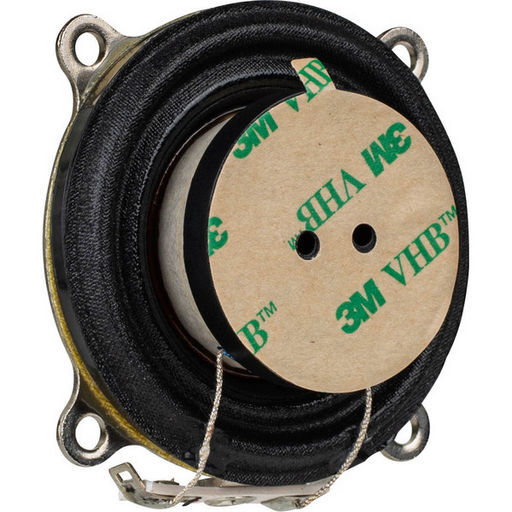

• Pre-applied 3M^TM VHB^TM adhesive for quick, durable installation.
