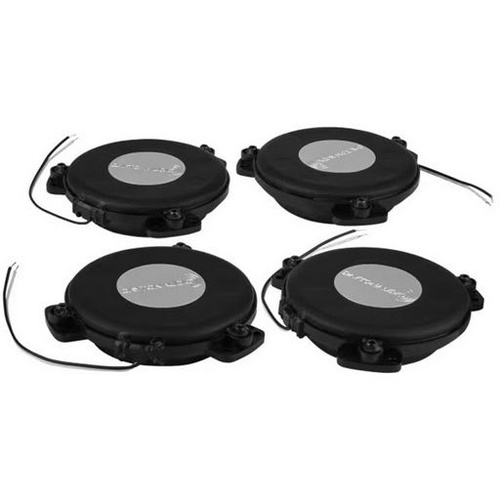

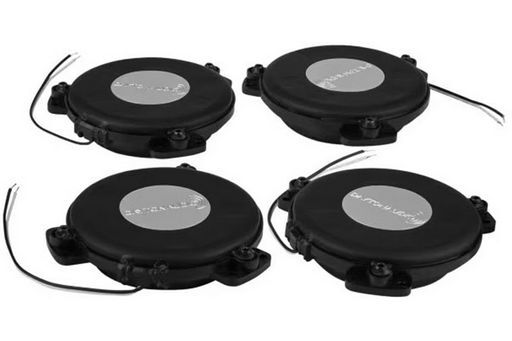

TACTILE BASS SHAKER MINI 30W 16OHM - PACK OF 4

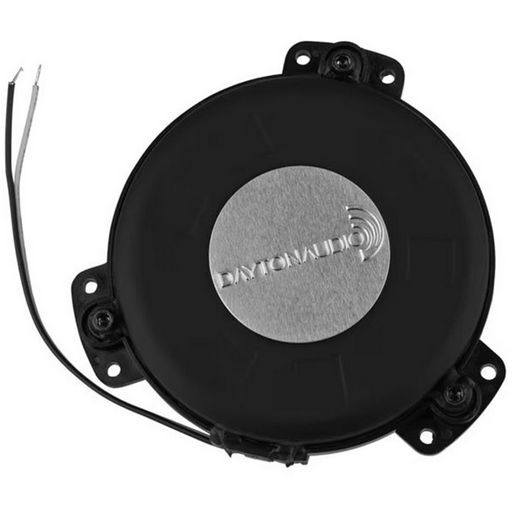

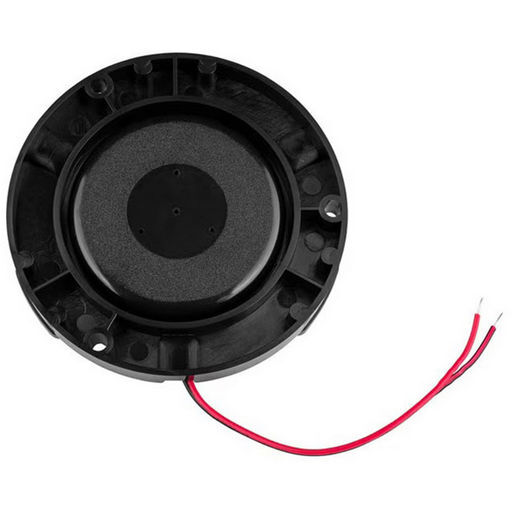

The PUCK by Dayton Audio is an inexpensive, small tactile transducer otherwise known as a mini bass shaker that is intended to be used in Home Theater, Gaming, and Auto Sound applications. This mini bass shaker has the unique ability to transfer low frequency sound waves directly to the listener by mounting the PUCK to surface areas that a listener's body will come into contact with. Because the listener "feels" the low frequency, the volume of the overall sound can be kept to a minimum without sacrificing the audio quality. The PUCK measures a mere 3-1/2" diameter and 1" depth, nearly identical in size to an ice hockey puck. The small depth and diameter of the PUCK mini bass shaker make it uniquely suited for tight spaces and unobtrusive applications. 4 layer Voice Coil with 1" aluminium former. Requires 6 #6 wood or sheet metal screws for surface mounting. Four PUCK transducers can be wired for Stereo 8 Ohm Right/Left 2 channel wiring or as a 4 Ohm 1 channel system.

Features:

• Add realistic tactile feedback to video games, movies, and music.
• Includes surface mounting rings for quick installation onto flat surfaces.
• Feel the bass without high sound pressure levels.
• High quality construction to provide reliable performance.
• Compact design to put the impact right were you need it.

Technical Specifications

• Diameter: 90mm
• Dimensions: 25x90mmØ
• Frequency: 20 - 80Hz
• Free-air resonance: 40Hz
• Height:25mm
• Impedance (Ohm): 16 ohm
• Inch: 3.5
• Manufacturer: Dayton Audio
• Pmax: 30W
• Power:15Wrms
• Power (RMS):  0-50 Watt
• Price Type: pack of 4
• Prms: 15W
• Re: 14.9Ω
• Rms: 15W
• Series:  Tactile
• Size: 3.5'
• Type: Bass Shaker
• Width: 90mmØ
