Overview

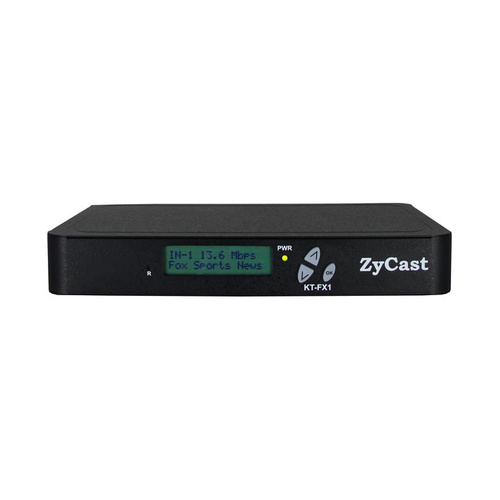

The digi-MOD KT-FX1 is developed specifically for the commercial AV distribution market and the only Foxtel approved modulator on the market. Encodes HDMI signal to any DTV channel, providing an easy way to distribute AV signals throughout buildings. Pre-programmed with a Foxtel-approved channel listing and with an output level of 90dB and MER of >38dB, the KT-FX1 makes use of video compression via H.264 AVC (MPEG-4) and audio compression via MPEG Layer II/AAC to distribute a crystal-clear HD picture over new or existing coaxial cable. Can be programmed via front panel or easy to use web based user interface. A 1161 adds HDMI loop through connection and delay adjustable audio output for connection to local PA system.

Specifications

Input

• Number of inputs: 1
• Video Input: HDMI
• Video Input Level: 0.7 - 1.4V (Peak to Peak)
• Video mode: PAL
• Audio input: Stereo
• Audio input level: 0.4 to 4.8V (Peak to Peak)

Output

• Frequency Range: 177.5 MHz to 816.5 MHz (6 to 69)
• HDMI loop through: No
• Output level: 85dB
• MER: >38dB

Delayed Audio

• Delayed audio output: No
• Delay: -
• Connection type: -

Modulation

• Video Resolution: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
• Video compression: H.264 AVC (MPEG-4)
• Audio compression: MPEG Layer II / AAC
• Video bitrate SD: 1Mbps to 9Mbps (Default 5Mbps)
• Video bitrate HD: 12Mbps to 24Mbps (Default 24Mbps)
• LCN: AU (APN)
• Carrier: 2K/8K
• GI: 1/32
• FEC: 7/8
• Constellations: 16 QAM/64 QAM

Management / Programming

• Front LCD: Yes
• Web GUI: Yes

General

• Power supply type: External
• Power supply: 12VDC 1.5AMP
• Redundant PSU: No
• Operating temperature: 0°C to +45°C
• Storage temperature: 0°C to +60°C
• Dimensions: 236mm x 145mm x 34mm
• Weight: 0.88kg

  *Specifications are subject to change without notice.
