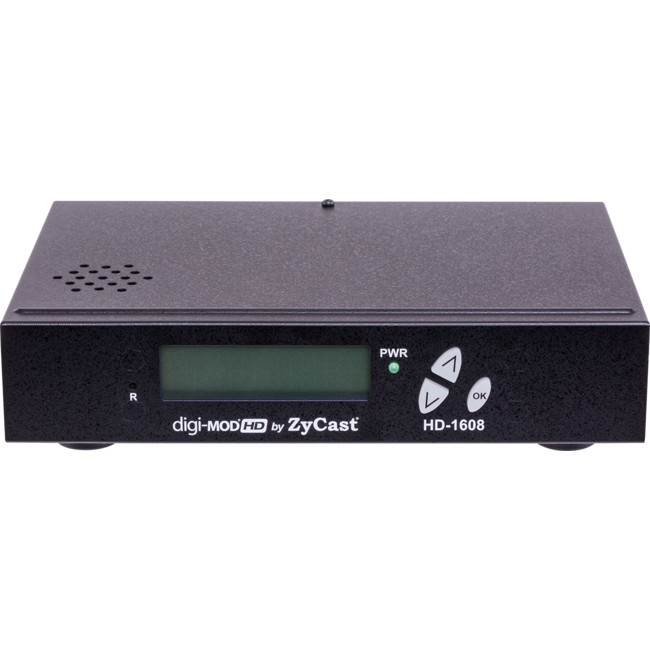

The HD-1608 is digi-MOD by ZyCast’s brand new HD single input MPEG-4(H.264) only DVB-T modulator. This unit has full menu via LCD display, superior MER resulting in higher quality picture and can be configurable for New Zealand TV systems too. The HD-1608 allows you to distribute any HD source around your home/business installation over coax cable with ease.

  • Most cost effective quality HD modulator on the market
  • Single input digital modulator encoding HDI video andstereo audio signals to MPEG-4 only(H.264) DVB-T COFDM TV channels
  • Compatible input resolutions 576i/720P/1080i& 1080P for high definition picture quality (ensure TV tuner is MPEG4/H.264 compatible)
  • Superior error rate(MER 39)
  • Full function front LCD display with menu driven configuration
  • New Zealand channel plan selectable
  • 2K/8K carriers
  • Adjustable VHF/UHF output(6-69)
  • 85dB launch with adjustable attenuation
  • Compact design
  • Silent operation-NO FAN NOISE!

(HD1608)

12 Months

Dimensions :190 x 150 x 40mm

Weight: 620gms

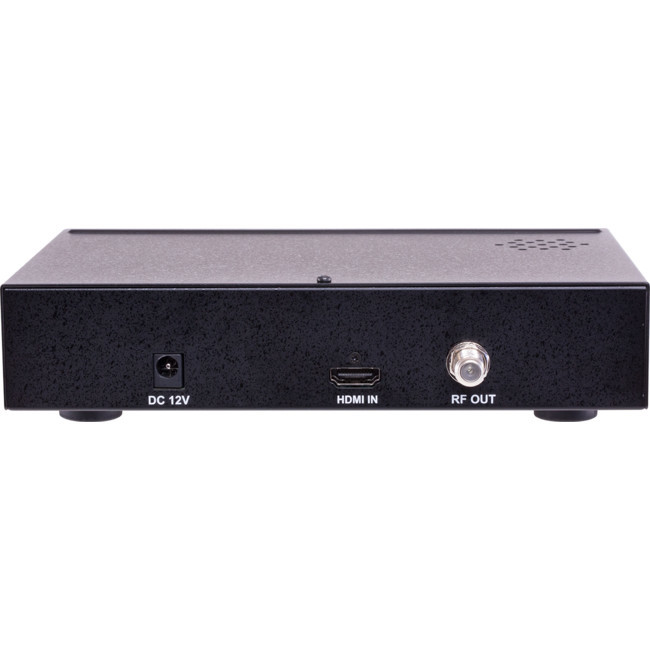

Output Connections: HDMI,RF

Input Connections: HDMI

Loop Through Capability :No

IR Capability :No

Video Input :HDMI

Power :12V DC 1.5 A switch mode

Output Channels :6-69

Output Connector: F Type

Output Level :85 dB

Output Level Adjustment :20dB

Number of Inputs: 1

Video Resolution :Up to 1080p

SKU HD1608
Barcode # 9328202020512
Brand Resi-linx
Unit Of Measure each
Assembled Width 0.913m
