Brand New

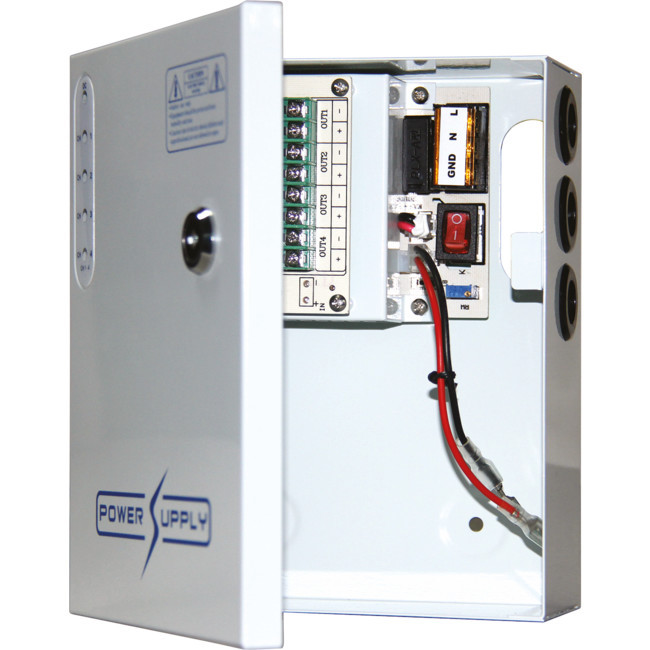

The Doss range power supply boxes also knows as a power distribution boxes offer a great power solution for CCTV system as well as other system powered by DC 12V. It enablessurveillance system installers to easily manage the power tomultiple CCTV cameras at a central point and allows your camera installation to be neater. The DOSS power supply boxes are very simple to install, simply screw each cameras power cable in to the power supply terminal in the power supply box.

This model also comes with UPS function which can work together with the 12V 7A battery to back up the power for the systemwhen the power is cut off.

This product doesn't come with a K9 IEC lead.
K9-2MT (27752115) is availabe for sale.
Features

• Backup battery charger: keep system running when power cut off. Battery size: 7A/ h
• Universal AC input range: 96-264VAC, 47~63Hz
• Individual fuse: each channel is protected seperately. Tube fuse and PTC for each channel are selectable.
• Protection: short circuit, over current, overload and wrong battery connection.
• PFC function: models with power bigger than 60W are configured with PFC function, fit European efficiency standard.
• Surge protection:5KA
• Cooling Fin: Better cooling function, low power comsumption.
• External LED indicator for each channel output.
• Extra AC jack: on box side, easy installation.
• K9 AC power lead not included
• Built-in EMI wave filter, 100% full load burn-in test.
• All using 105 °C long life electrolytic capacitors.
• All using world famous brand new components.
• Operating temperature:-30°C~70°C (40°C 100% full load burn-in test, 70°C 70% full load burn-in test)

Specifications
