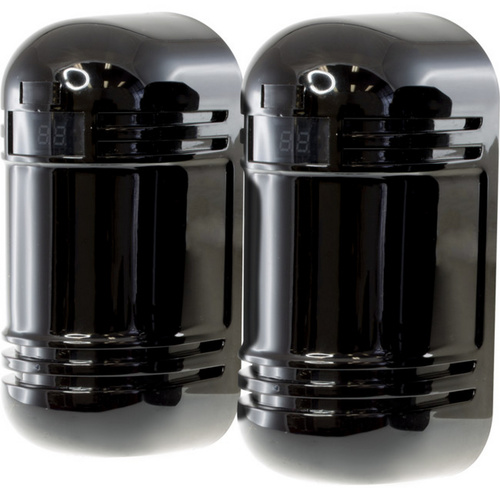

Dual Beam Photoelectric Sensor Digital Pulse Beam

Secure your land and get alerted when anything passes theline! With this Dual-Beam Photoelectric Sensor you will be able to set up a security line and hear a warning sound if any movements are detected. Capable for both indoor and outdoor use. Now with digital display!

Features

Wired/BUS compatible, 8 digital frequency range.
Dynamic frequency analysis
Intelligent alarm linkage links alarm to your existingsecurity system
Tamper, fault and alarm contact outputs
Powerful sensor signal transmission with anti-fog design for the sensors.
Adopt coaxial aspherical dual optical focusing lens.
Digital display BUS address, signal strength and working frequency.
Blocking time adjustment for specific target movement rate detection.
Protection range up to 90-180m (Indoor)/ 30-60m (Outdoor)
Comes with post mounting kit(Diameter 25 to 40mm approx): Screws, mounting plate and mounting saddle.

Specifications

Model	DBPC946B
Alert Distance Outdoor	60m
Alert Distance Indoor	180m
Number Of Beams	2
Detection Mode	2 Beams blocked simultaneous
Optical Source	Infrared digital pulse beam
Response Time	50-240ms (Adjustable without degree)
Power Supply	DC12-24V 15W
Alarm Output	Relay contact output NO. NC contact rating AC/DC 30V30mA Max
Trouble Output	Relay contact output NC contact rating AC/DC 30V 30mA Max
Tamper Output	Relay contact output NC contact rating DC24V 0.5A Max
Operation Temperature	−25°C-55°C
Operation Humidity	5%-95%
Optical axis(Horizontal)	180°(Default position±90°)
Optical axis (Vertical)	20°(Default position±10°)
Material	P C resin
Net Weight	430g (Receiver+ Transmitter)
Gross Weight	790g
