Overview

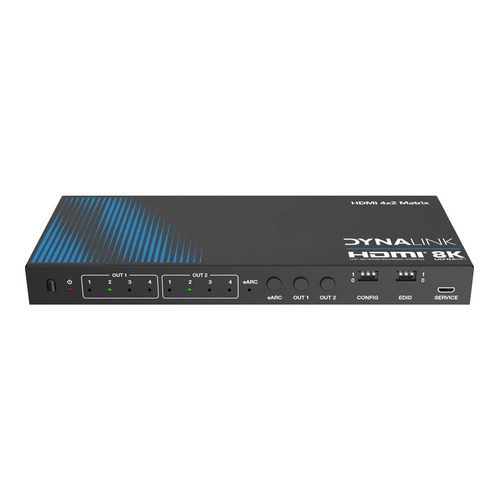

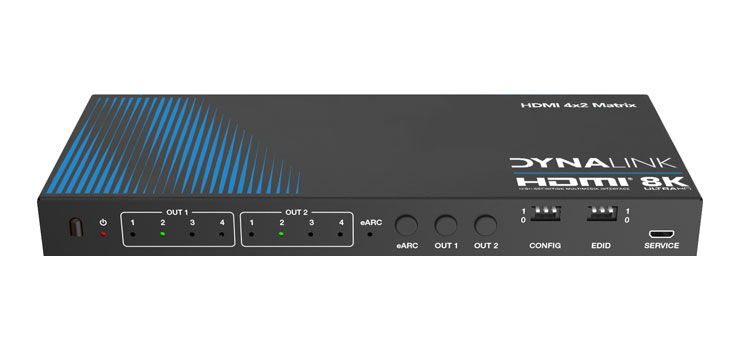

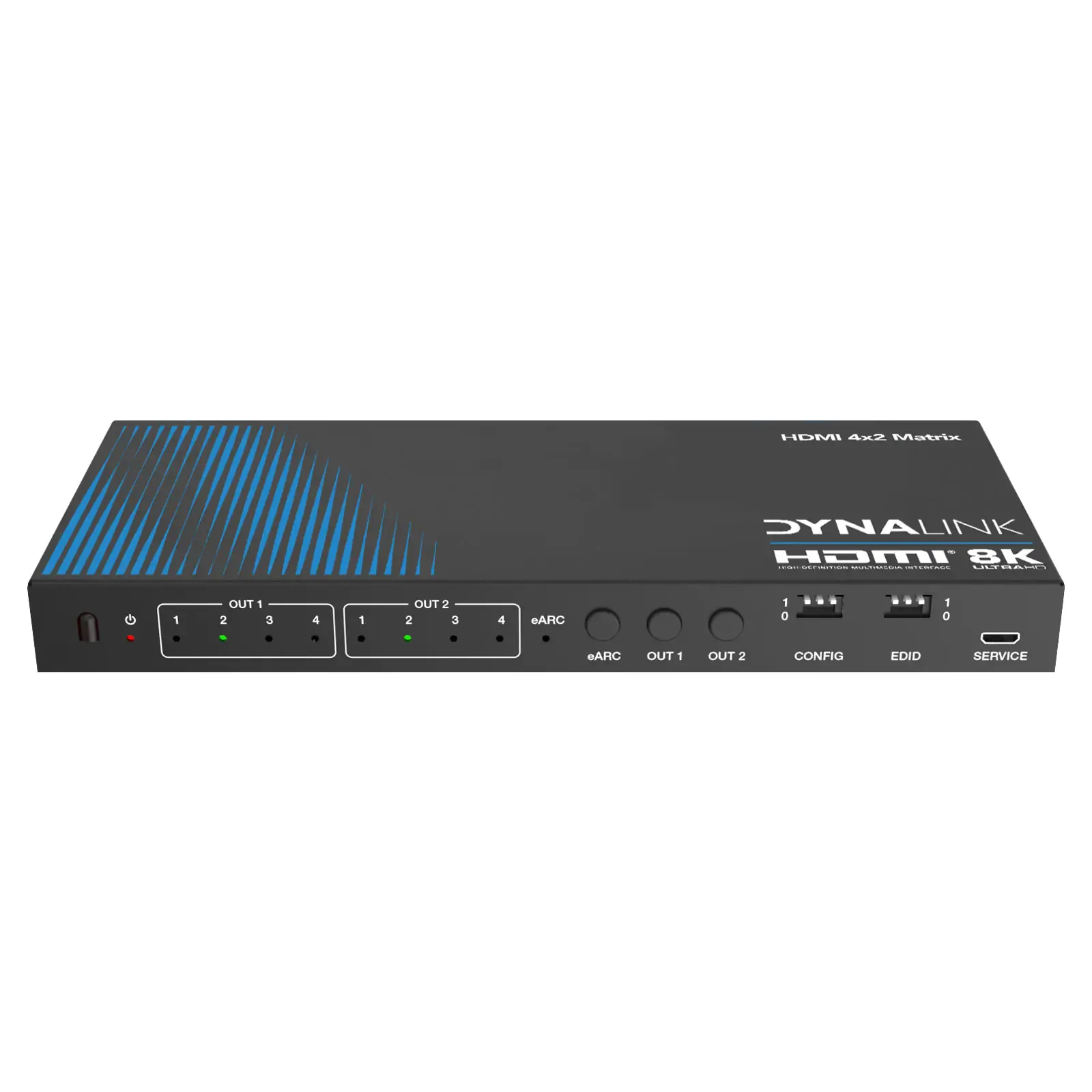

Allows four HDMI 8K V2.1 sources to be switched to two outputs/screens. This compact switcher brings together your HDMI sources for easy switching via front panel or IR remote control. eARC HDMI output allows simple connection to HDMI equipped soundbars. S/PDIF and 3.5mm stereo jack outputs are provided for connection to amplifier/speakers. Front panel provides access to switching configuration (pass through/scaler/splitter/switcher) and EDID DIP switches. Power supply included.

Features

• HDMI 2.1 and HDCP 2.3 compliant
• 40Gbps video bandwidth
• Supports video resolution up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit
• VRR, FVA, ALLM supported
• Support HDR, HDR10, HDR10+, Dolby Vision, HLG pass through
• Support HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
• INPUTS 1 port and OUT 1 port support eARC/ARC function
• Allows HD audio up to Dolby Atmos, DTS:X over TrueHD from ANY external HDMI source to any eARC/ARC sound system
• Support audio de-embedding function (output through the optical and analog port)
• Built-in EDID DIP switch supports advanced EDID management
• 8K->4K, 8K/4K->2K downscaler support
• Support IR remote control and front panel button switching
• Built-in Equalizer, Retiming and Driver
• Compact design for easy and flexible installation

Specifications

Technical

• HDMI Compliance: HDMI 2.1
• HDCP Compliance: HDCP 2.3
• Video Bandwidth: 40Gbps
• Video Resolution: Up to 8K@60Hz 4:4:4 8/10/12bit, 8K@60Hz 4:2:0 12-bit, 8K@30Hz 4:4:4 10-bit, 4K@120Hz 4:4:4 10-bit
• Audio Formats: HDMI input/output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD. Audio de-embedding output: Optical: Up to LPCM/Dolby/DTS 5.1 CH, Analog: LPCM 2.0 CH
• Colour Depth: 8-bit,10-bit,12-bit
• Colour Space: RGB_4:4:4, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
• ESD Protection: Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

Connection

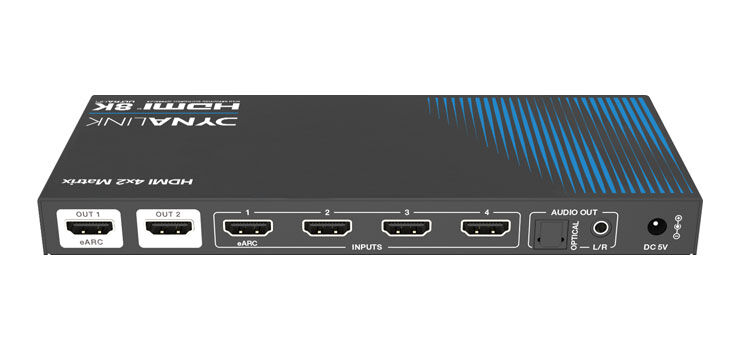

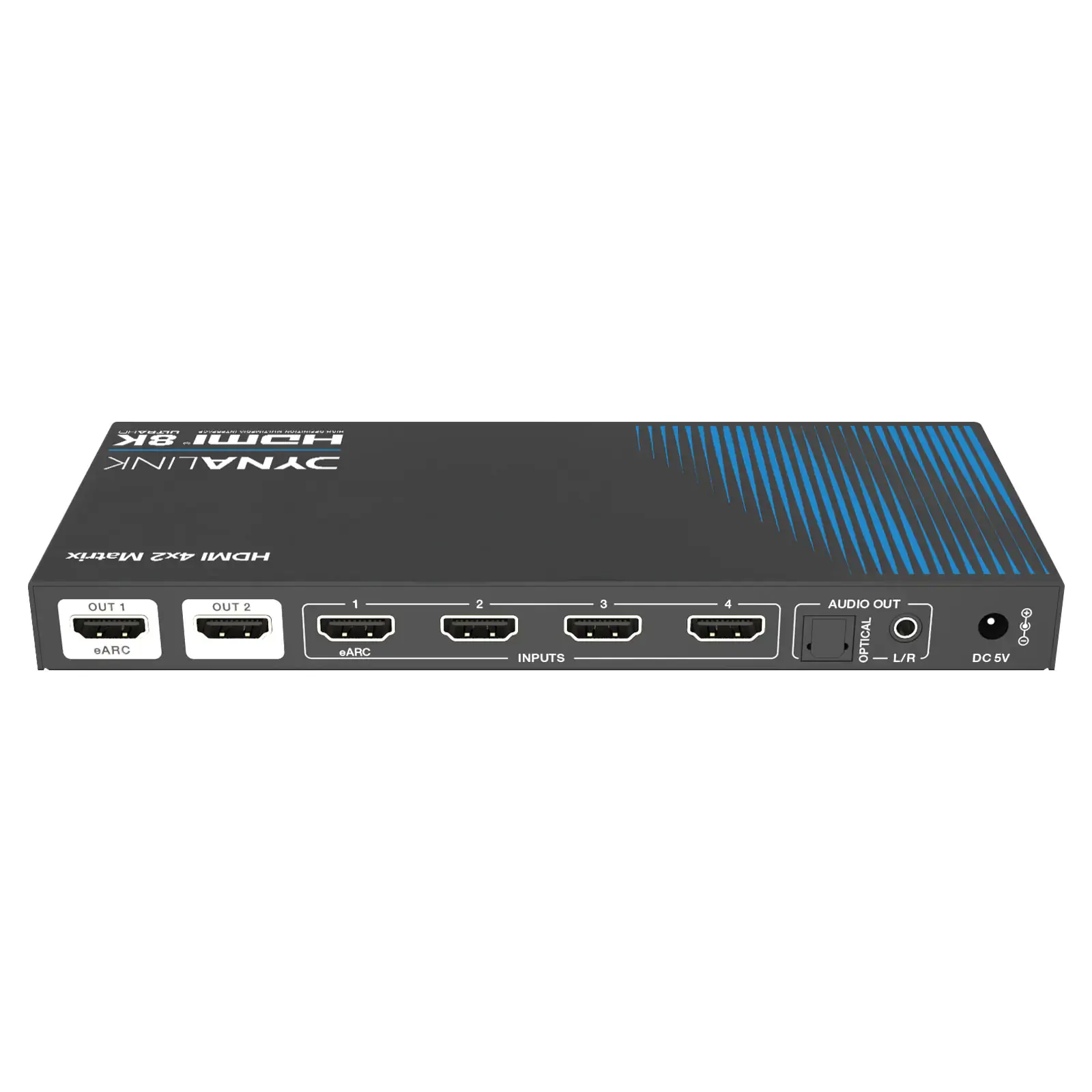

• Input Ports: 4×HDMI IN Type A (19-pin female)

Output Ports:

• 2 x HDMI OUT (Type A, 19-pin female)
• 1 x OPTICAL (S/PDIF
• 1 x L/R (3.5mm Stereo Mini-jack)
• Controls: 1 x SERVICE (Micro USB, Update port)

Mechanical

• Housing: Metal Enclosure
• Silkscreen Colour: Black
• Dimensions (mm): 200W × 85D × 21H
• Weight: 411g
• Power Supply: Input: AC100 - 240V 50/60Hz, Output: DC 5V/2A
• Power Consumption: 2.05W (Max)
• Operation Temperature: -0°C to 40°C
• Storage Temperature: -20°C ~ 60°C
• Relative Humidity: 20~90% RH (non-condensing)

  *Specifications are subject to change without notice.

Box Contents

• 1 x 8K HDMI 4x2 Matrix
• 1 x 5V/2A Power Supply
• 1 x IR Remote
• 1 x User Manual
